System Diagrams

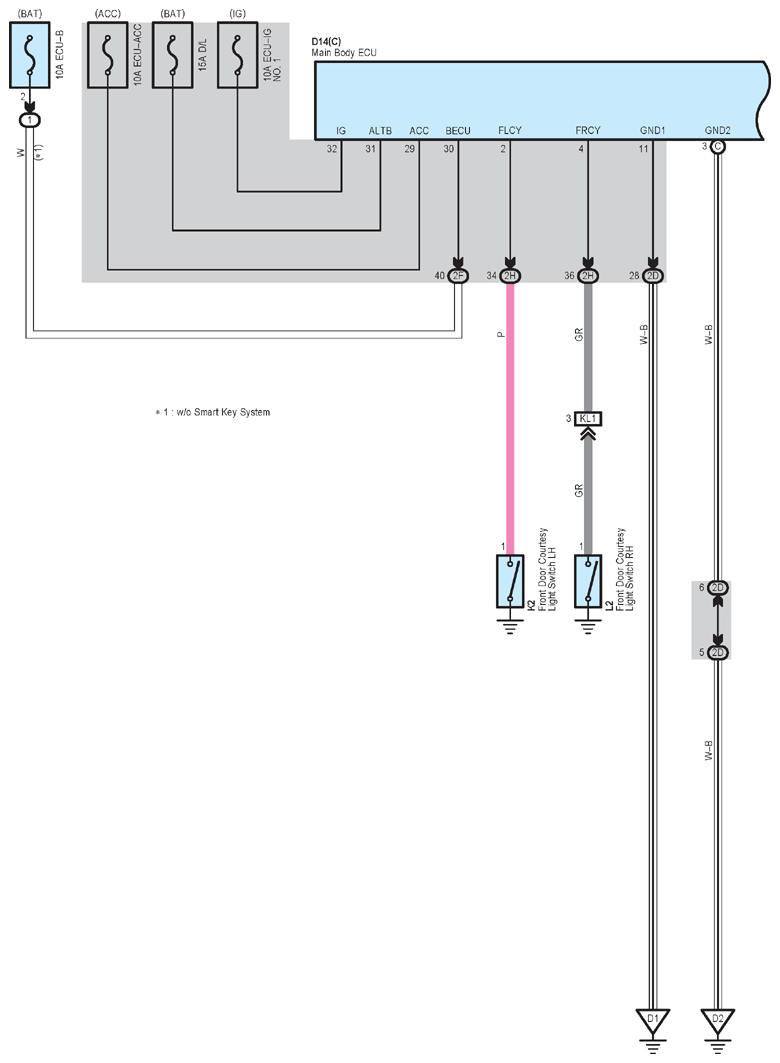

Fig 1: Power Window (1 Of 4)
G12221743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

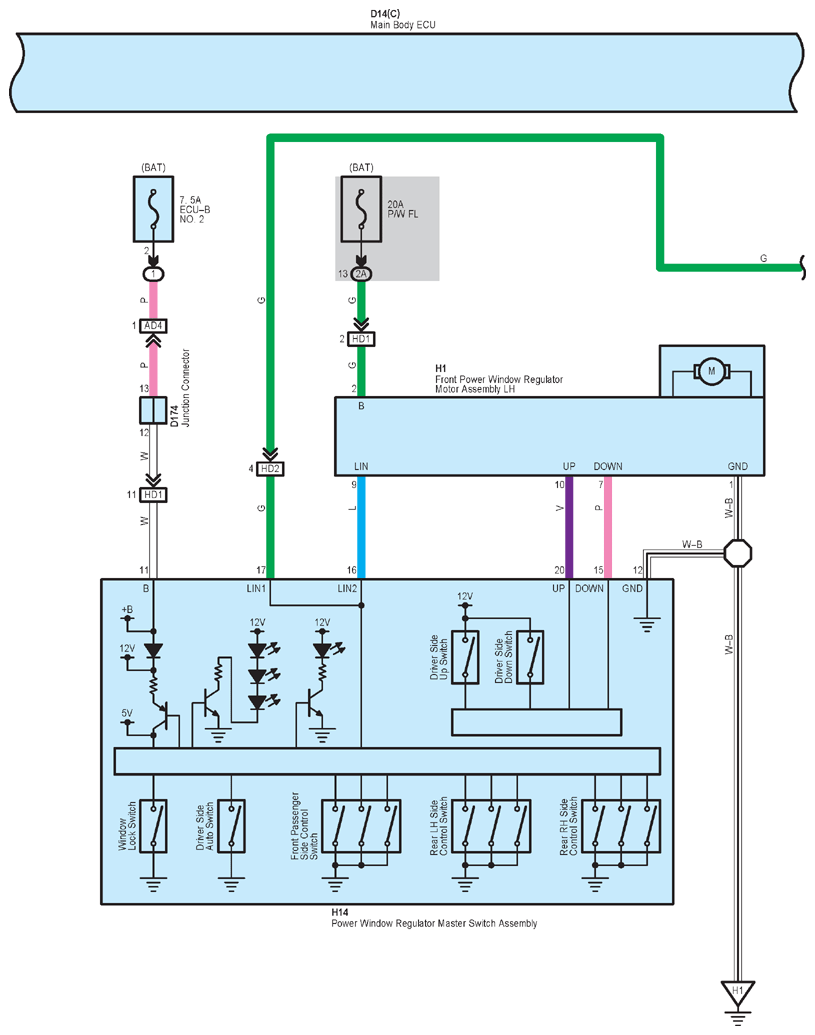

Fig 2: Power Window (2 Of 4)
G12221744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

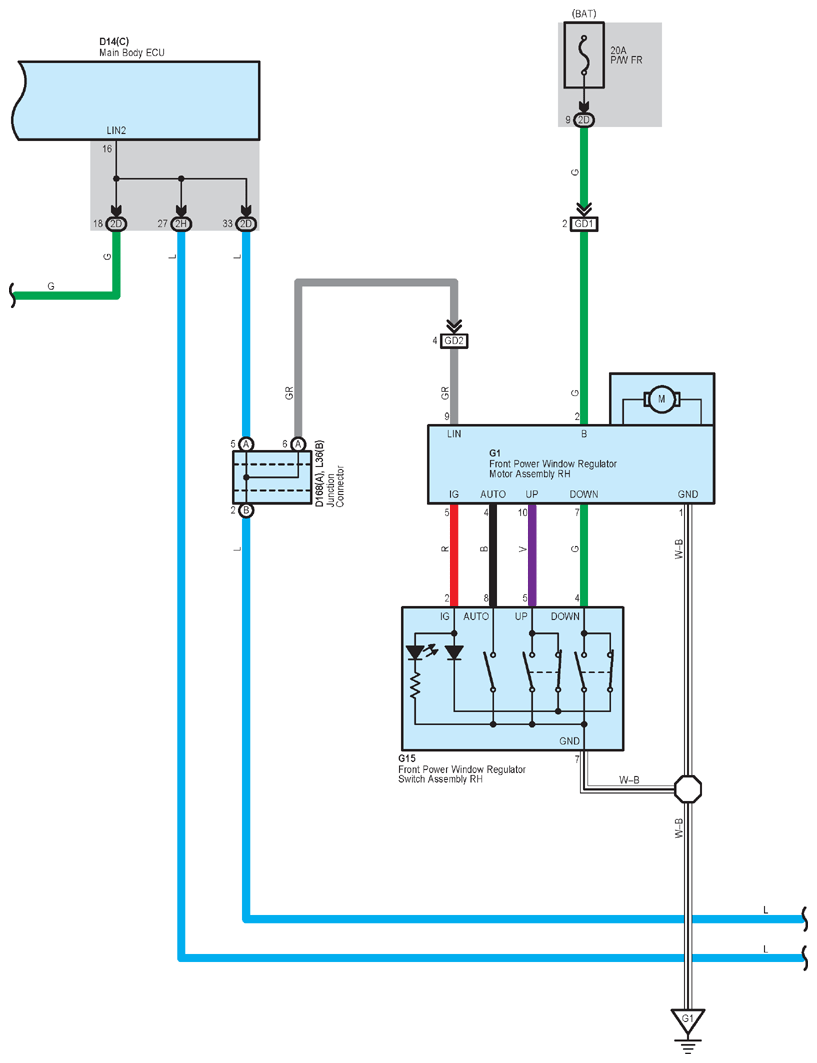

Fig 3: Power Window (3 Of 4)
G12221745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

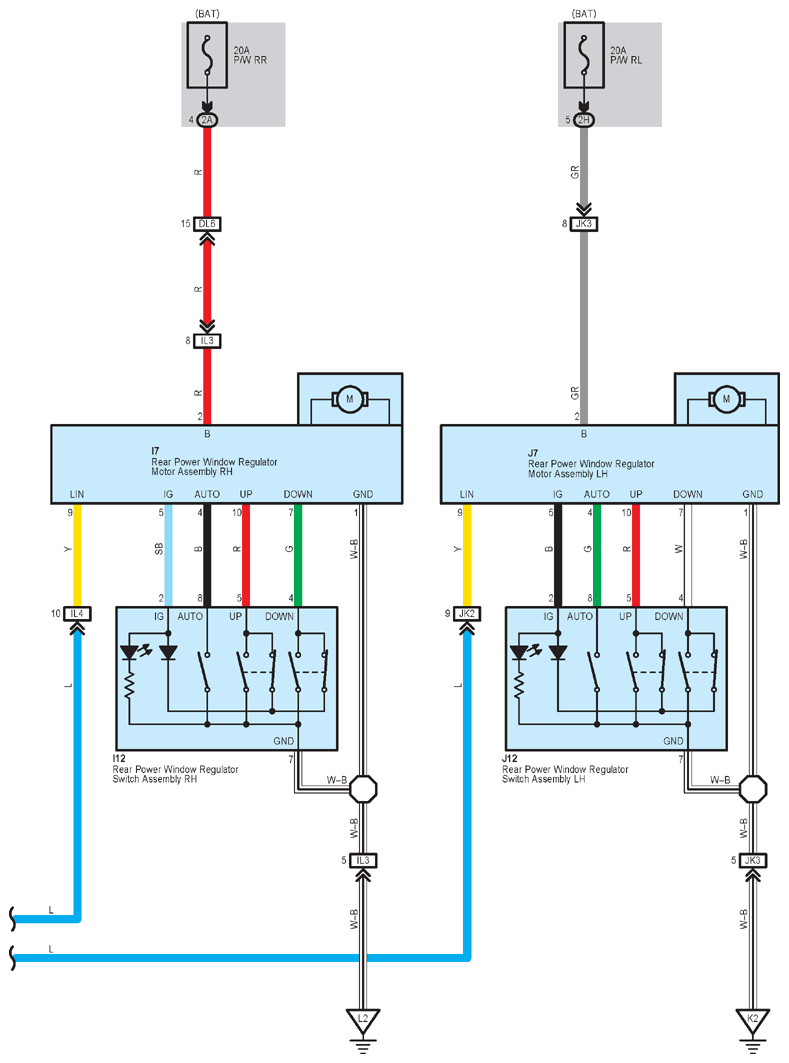

Fig 4: Power Window (4 Of 4)
G12221746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
