System Diagrams

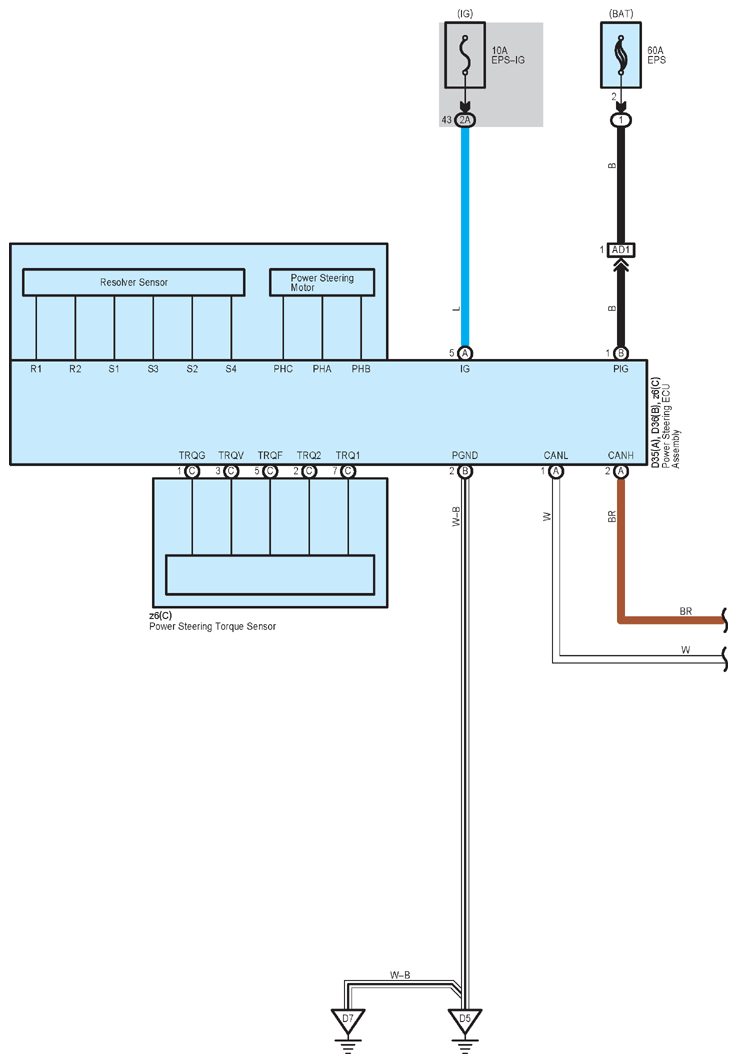

Fig 1: EPS (1 Of 3)
G12221500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

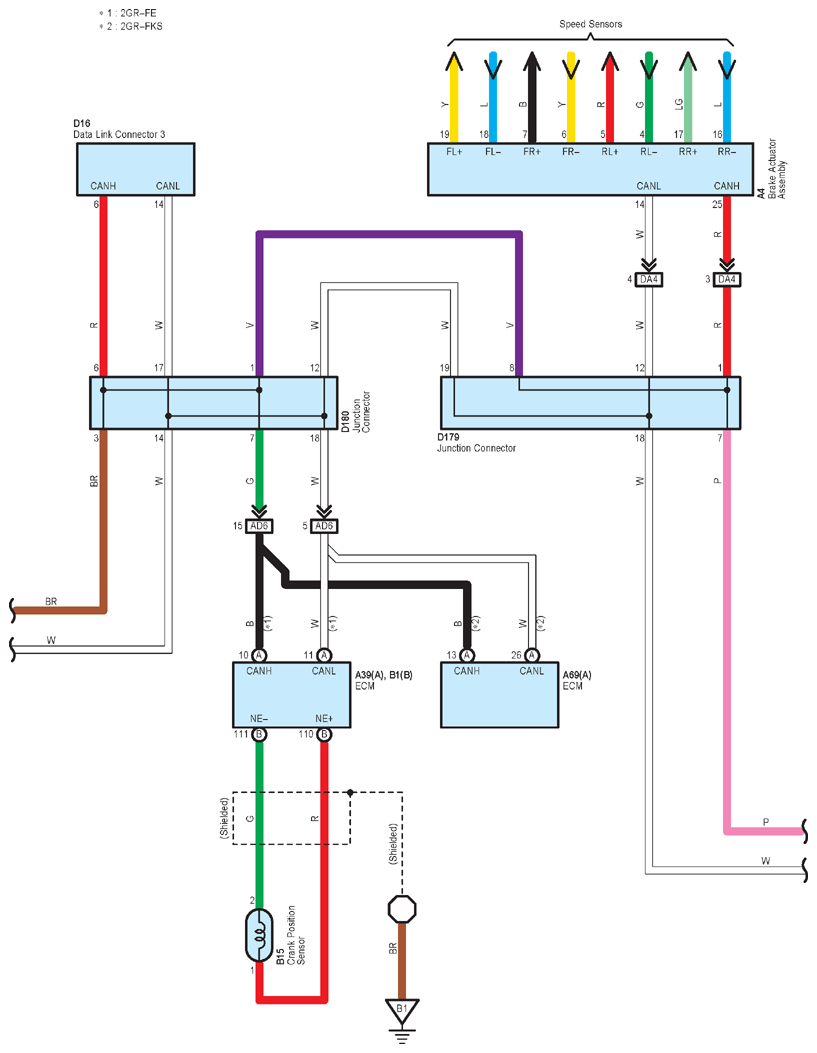

Fig 2: EPS (2 Of 3)
G12221501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: EPS (3 Of 3)
G12221502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
