System Diagrams — 2016 Toyota Sienna Limited, FWD Service Manual ~ LEMON Manuals

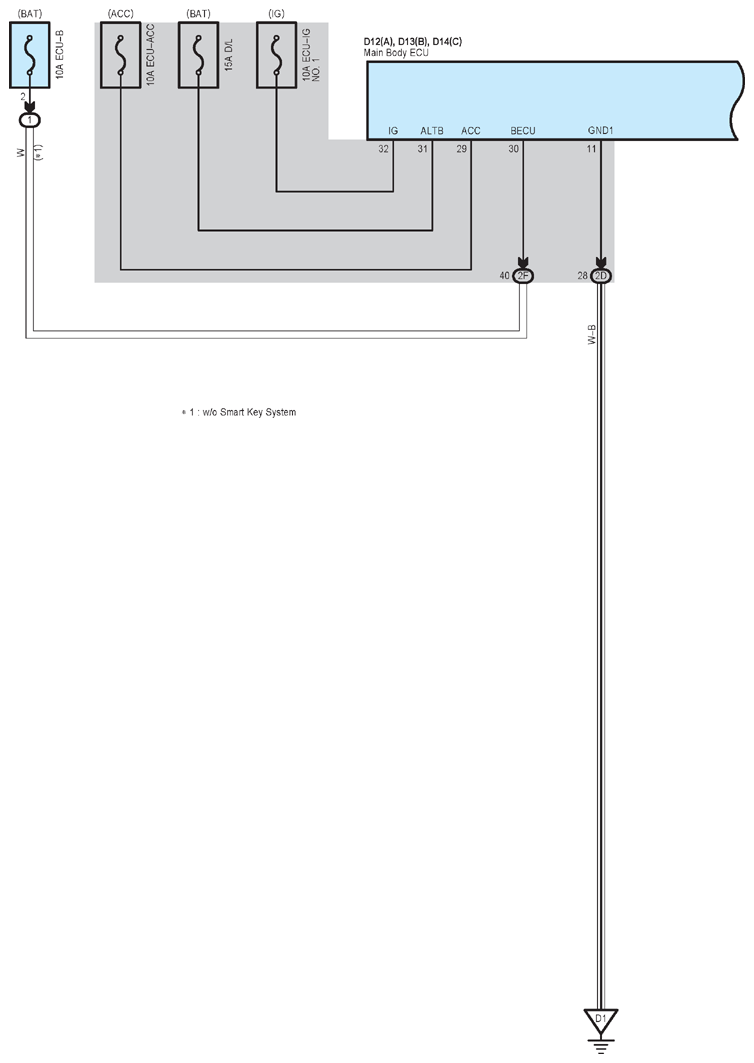

Fig 1: Door Lock Control (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

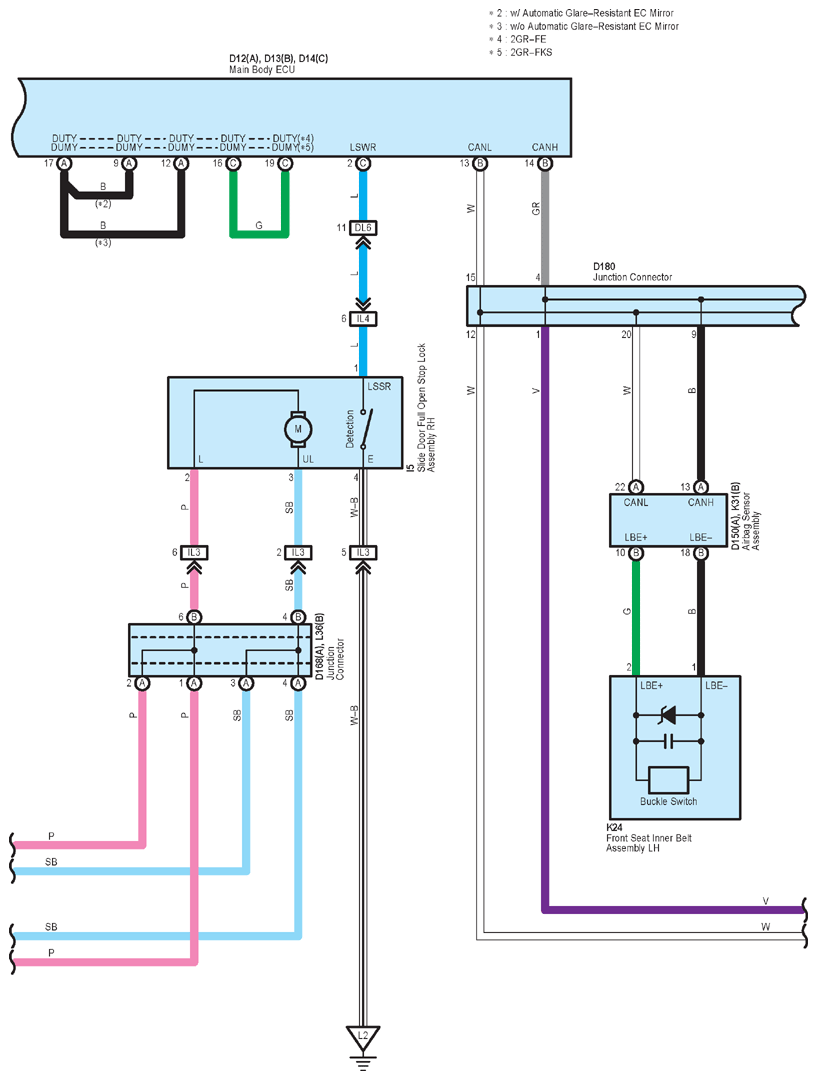

Fig 2: Door Lock Control (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

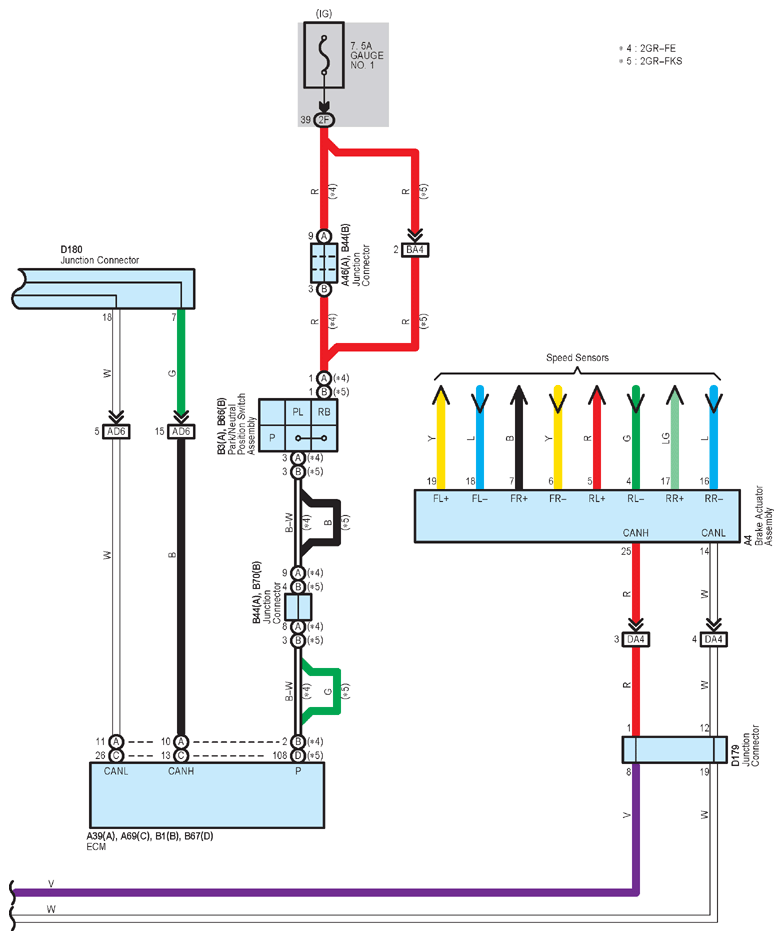

Fig 3: Door Lock Control (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

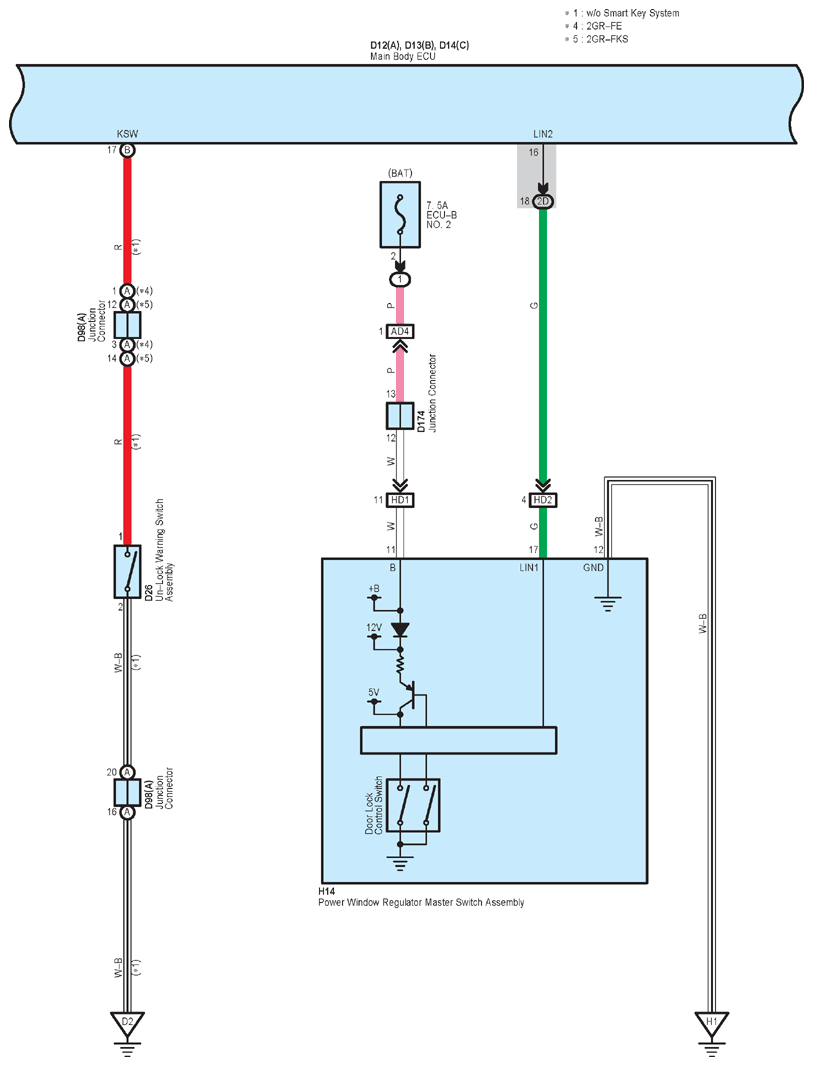

Fig 4: Door Lock Control (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

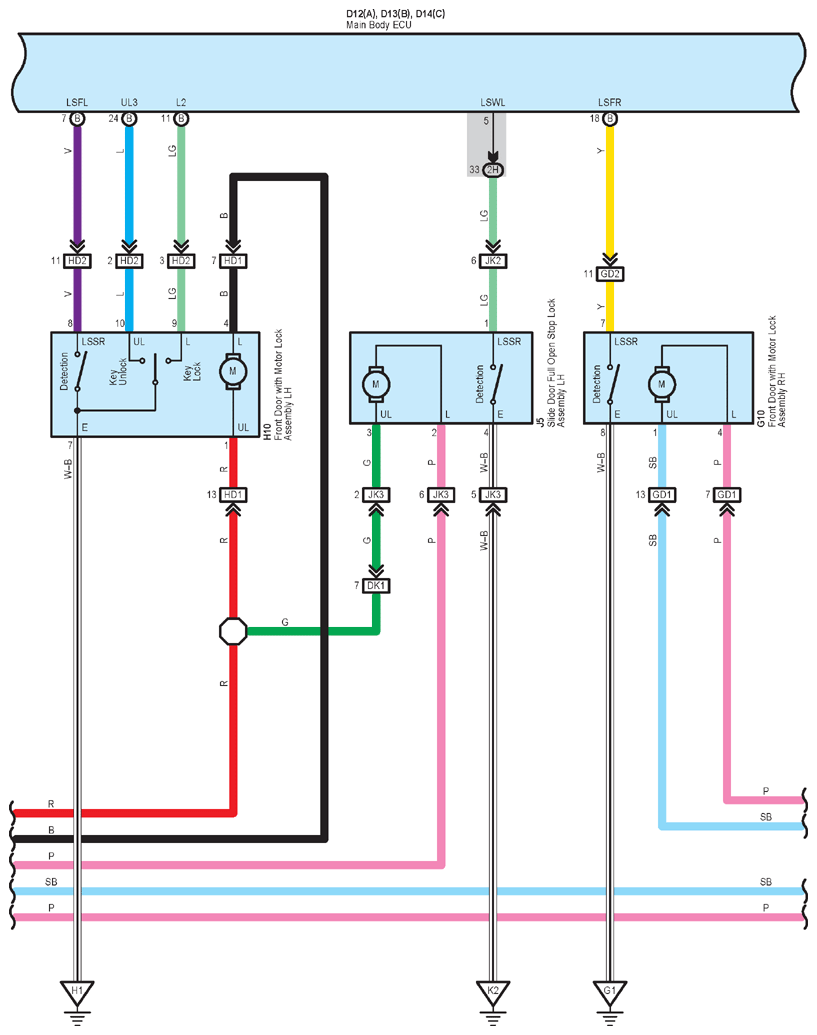

Fig 5: Door Lock Control (5 Of 7)

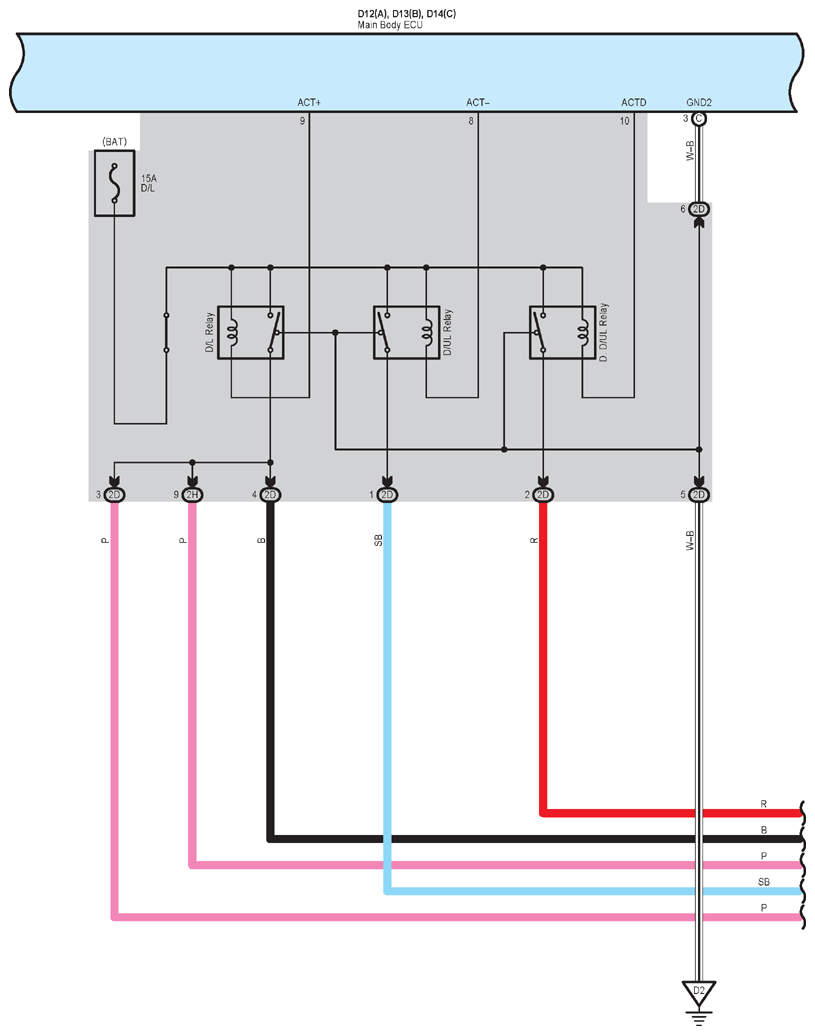

Fig 6: Door Lock Control (6 Of 7)

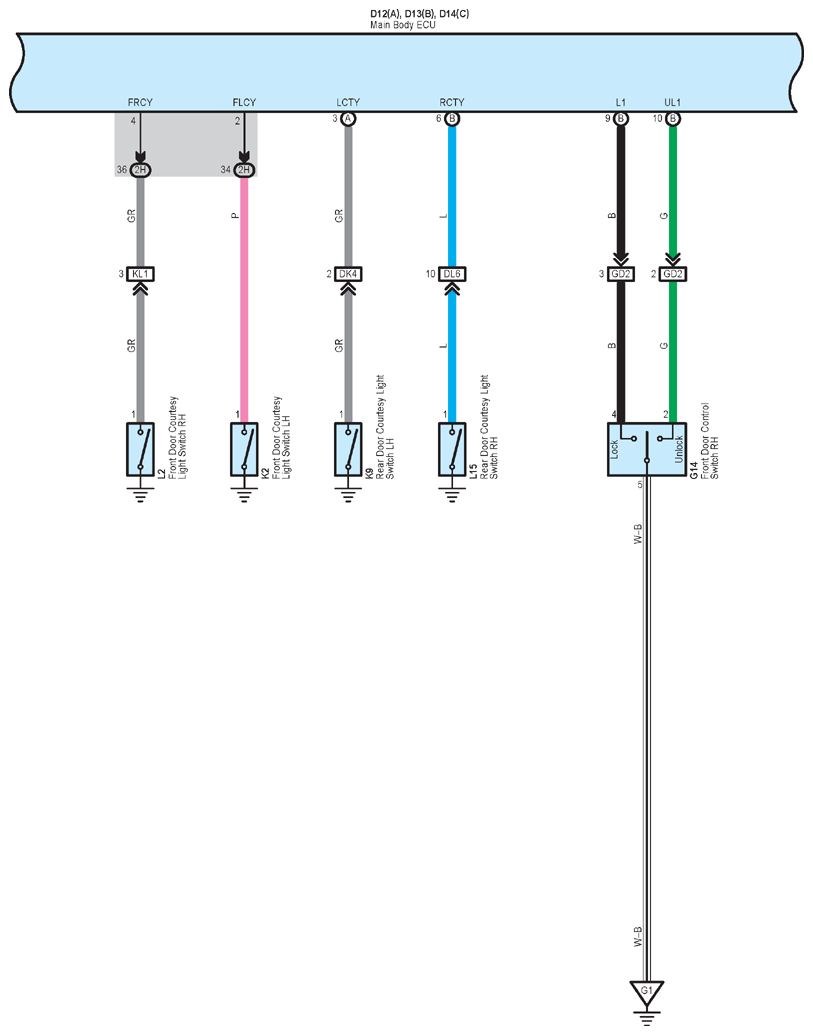

Fig 7: Door Lock Control (7 Of 7)
