System Diagrams

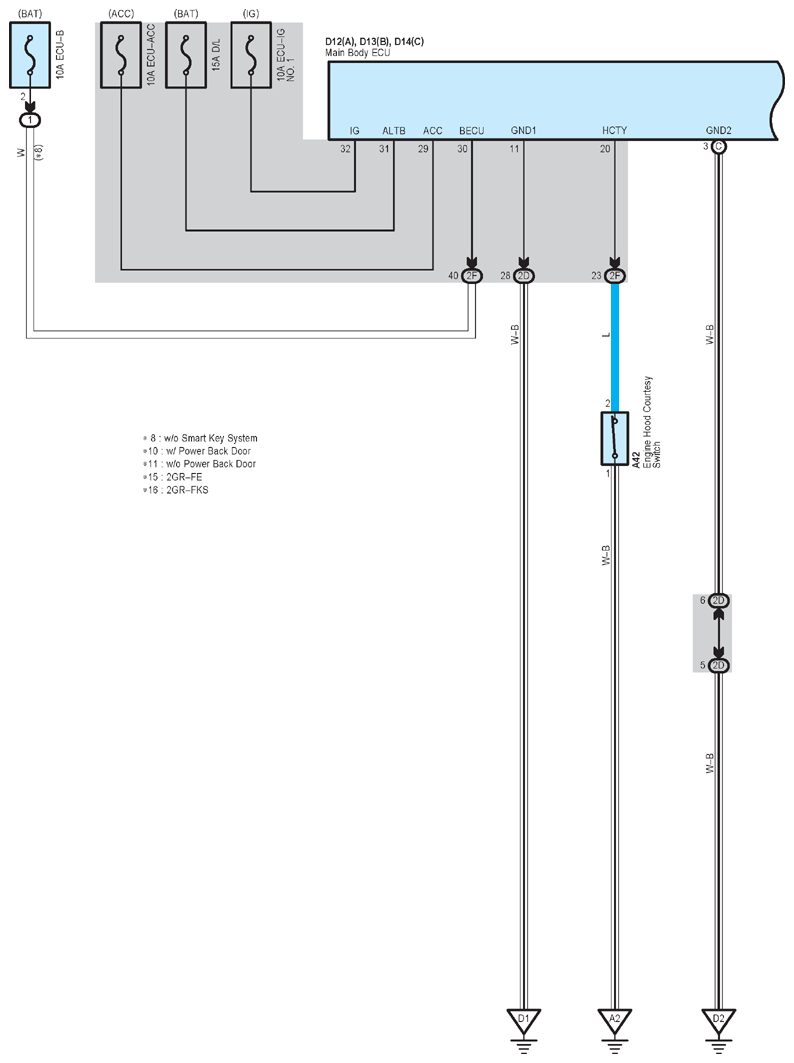

Fig 1: Combination Meter (1 Of 14)

G12221362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

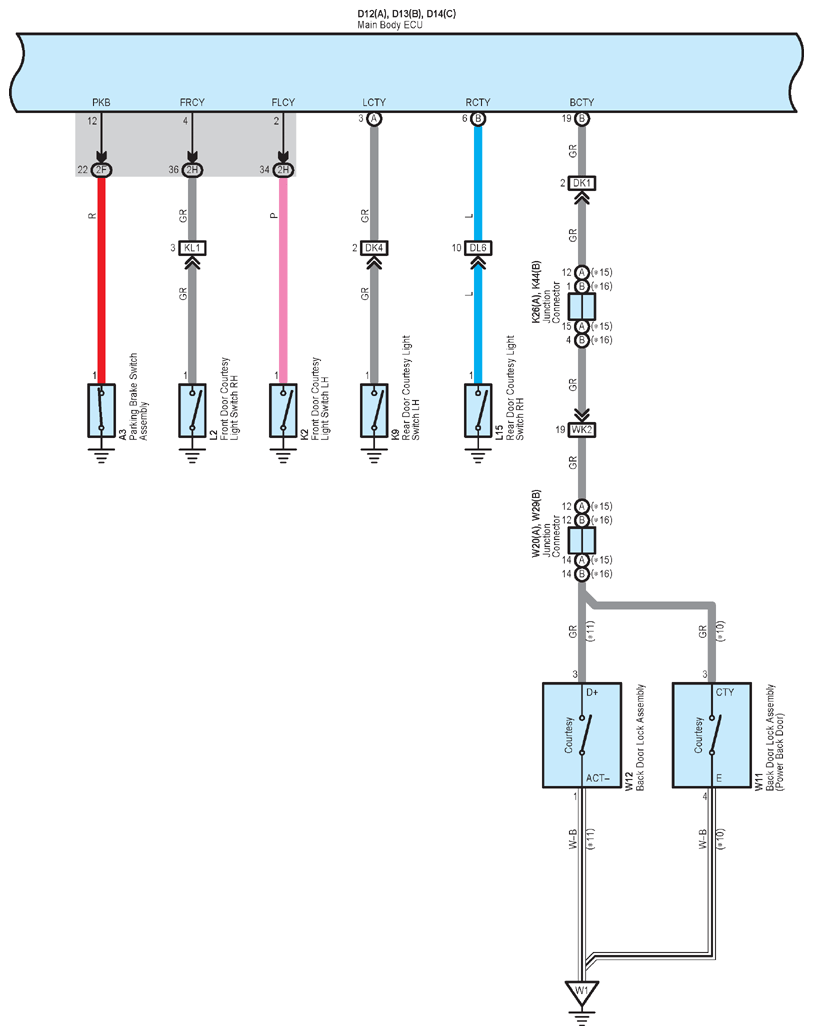

Fig 2: Combination Meter (2 Of 14)

G12221363

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Combination Meter (3 Of 14)

G12221364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Combination Meter (4 Of 14)

G12221365

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

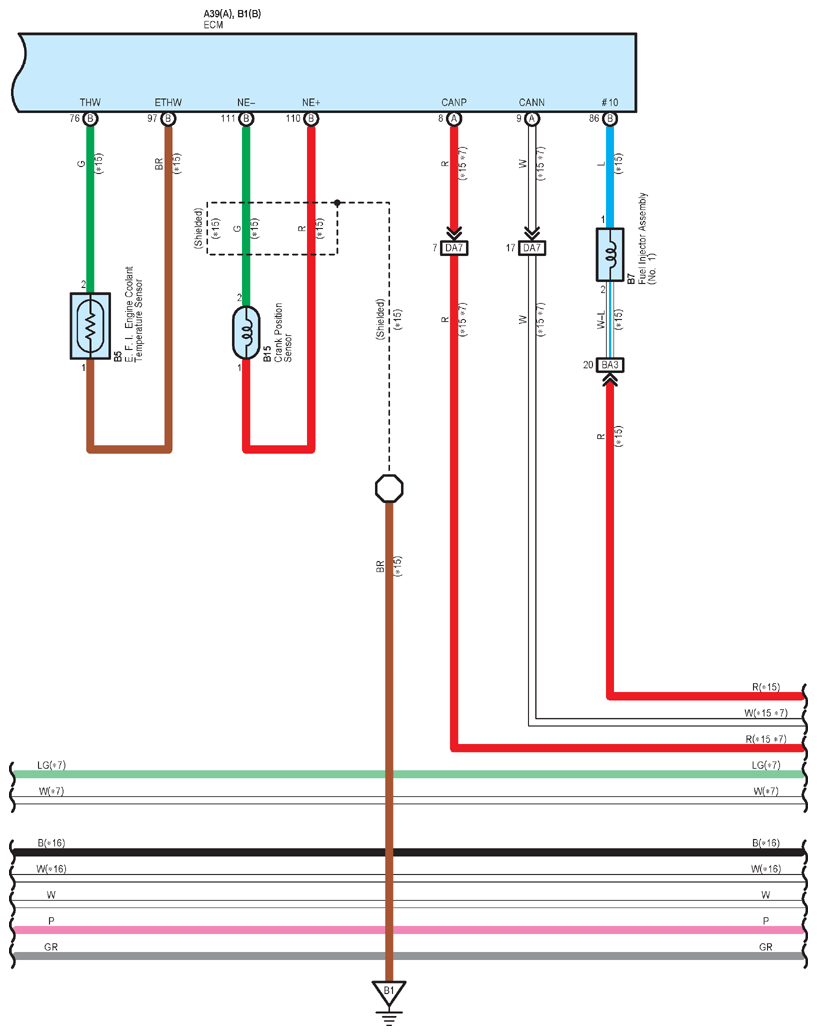

Fig 5: Combination Meter (5 Of 14)

G12221366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

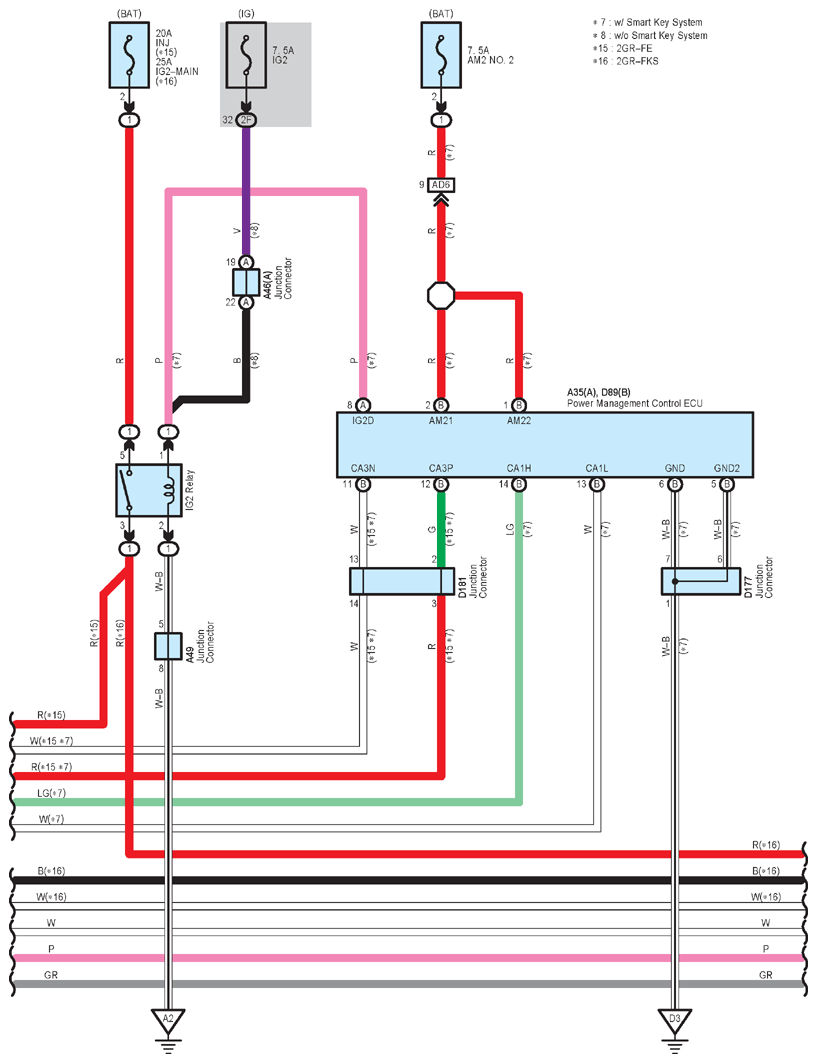

Fig 6: Combination Meter (6 Of 14)

G12221367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

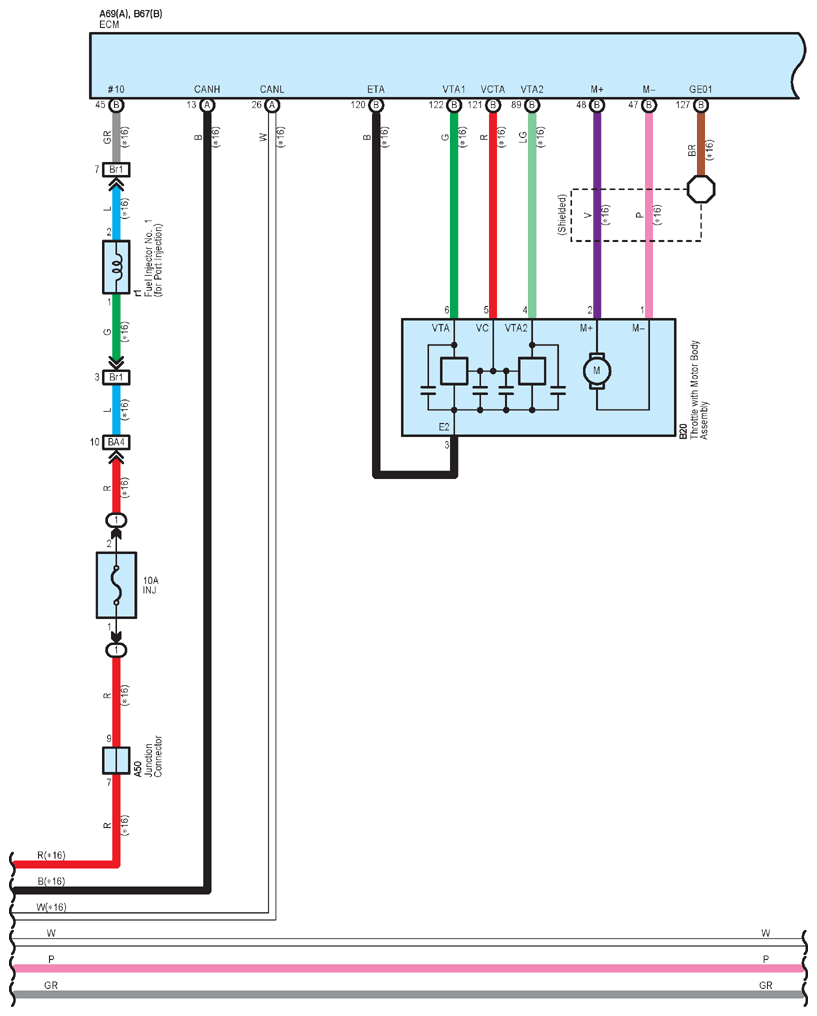

Fig 7: Combination Meter (7 Of 14)

G12221368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Combination Meter (8 Of 14)

G12221369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

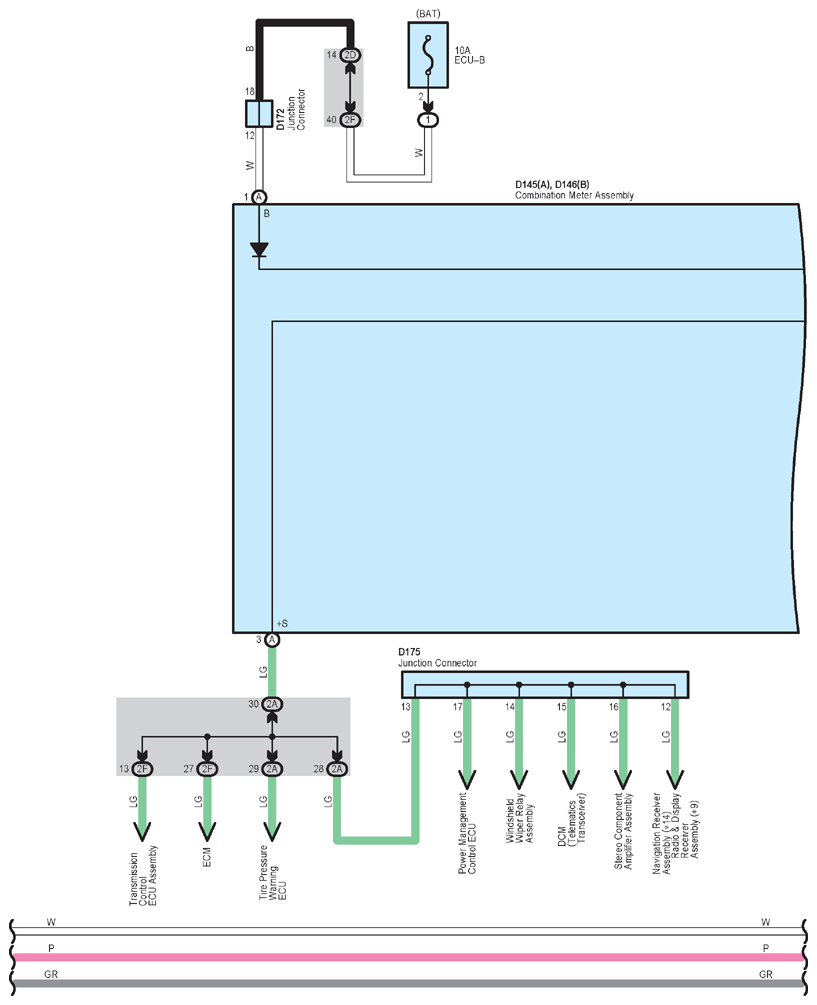

Fig 9: Combination Meter (9 Of 14)

G12221370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Combination Meter (10 Of 14)

G12221371

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Combination Meter (11 Of 14)

G12221372

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Combination Meter (12 Of 14)

G12221373

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

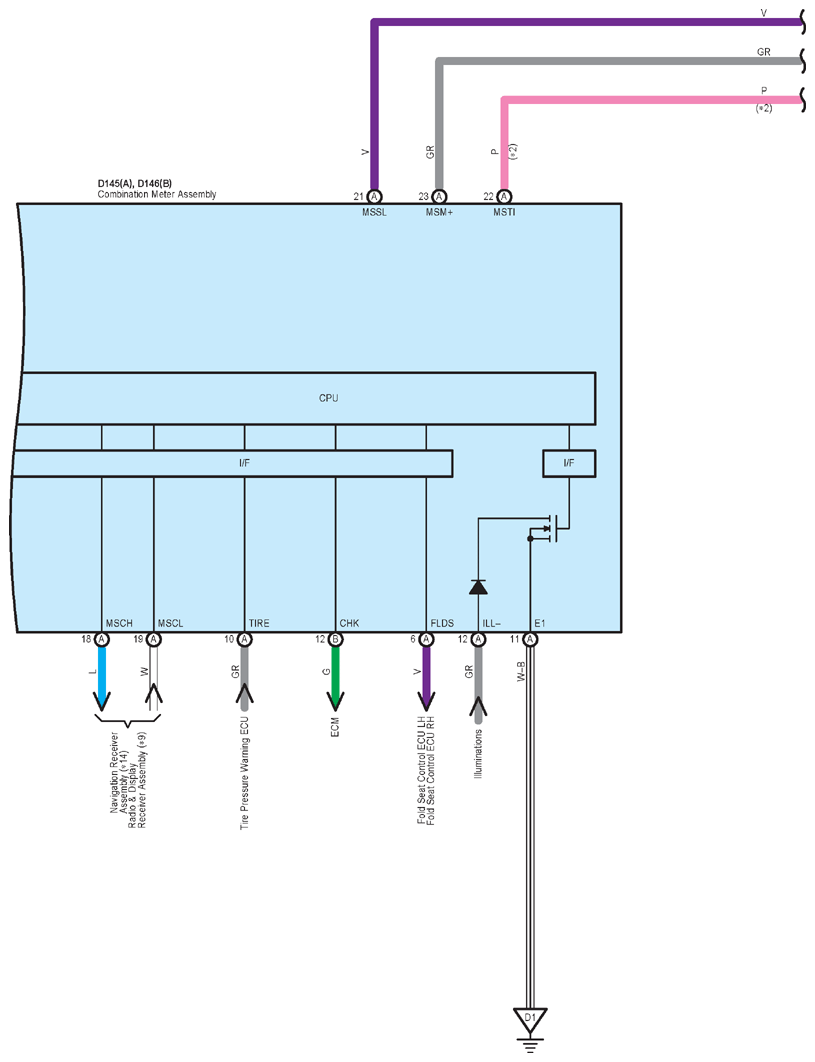

Fig 13: Combination Meter (13 Of 14)

G12221374

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

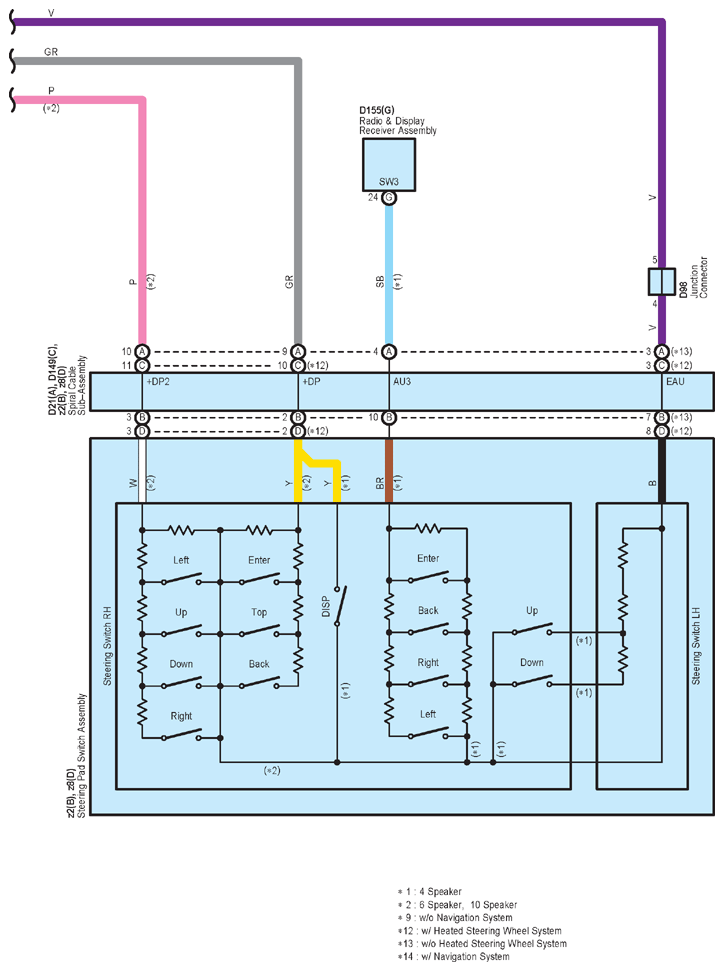

Fig 14: Combination Meter (14 Of 14)

G12221375

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
