System Diagrams — 2016 Toyota Sienna Limited, FWD Service Manual ~ LEMON Manuals

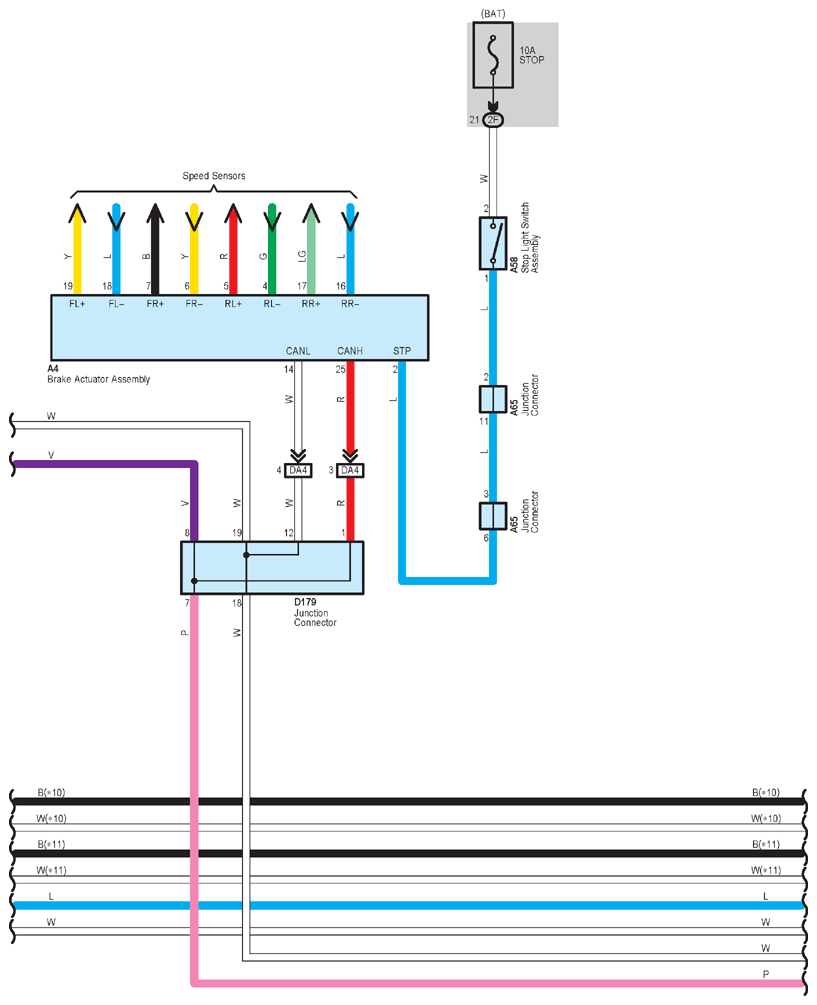

Fig 1: AWD (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

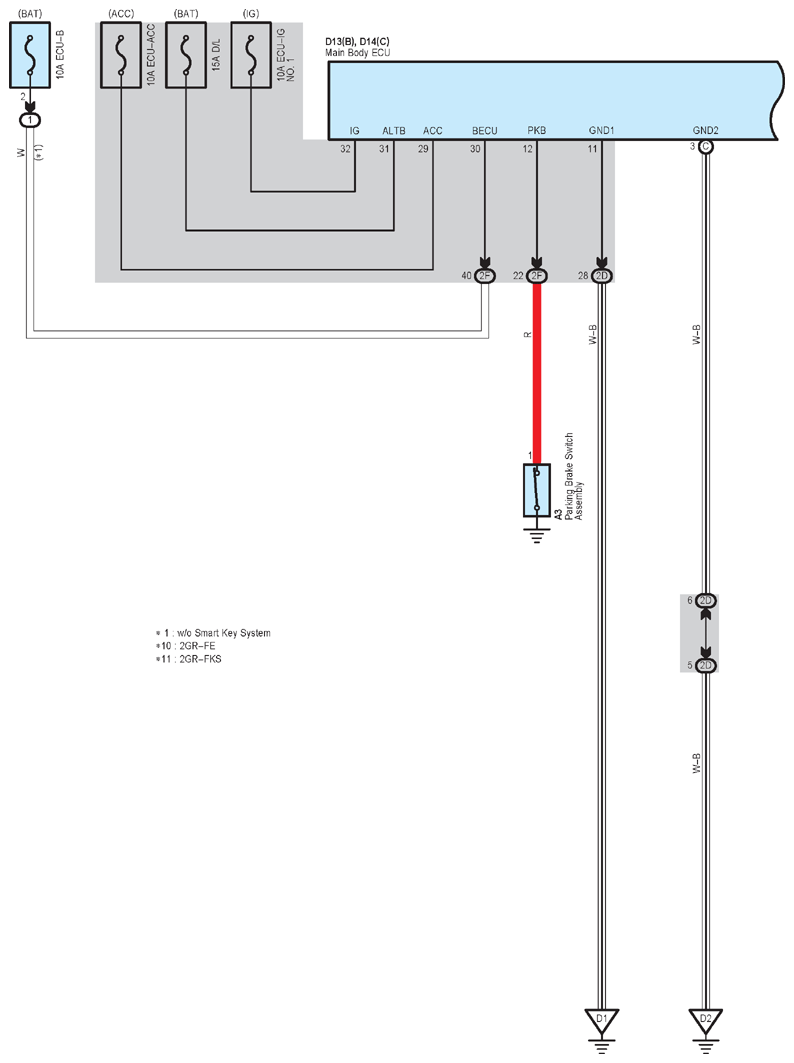

Fig 2: AWD (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

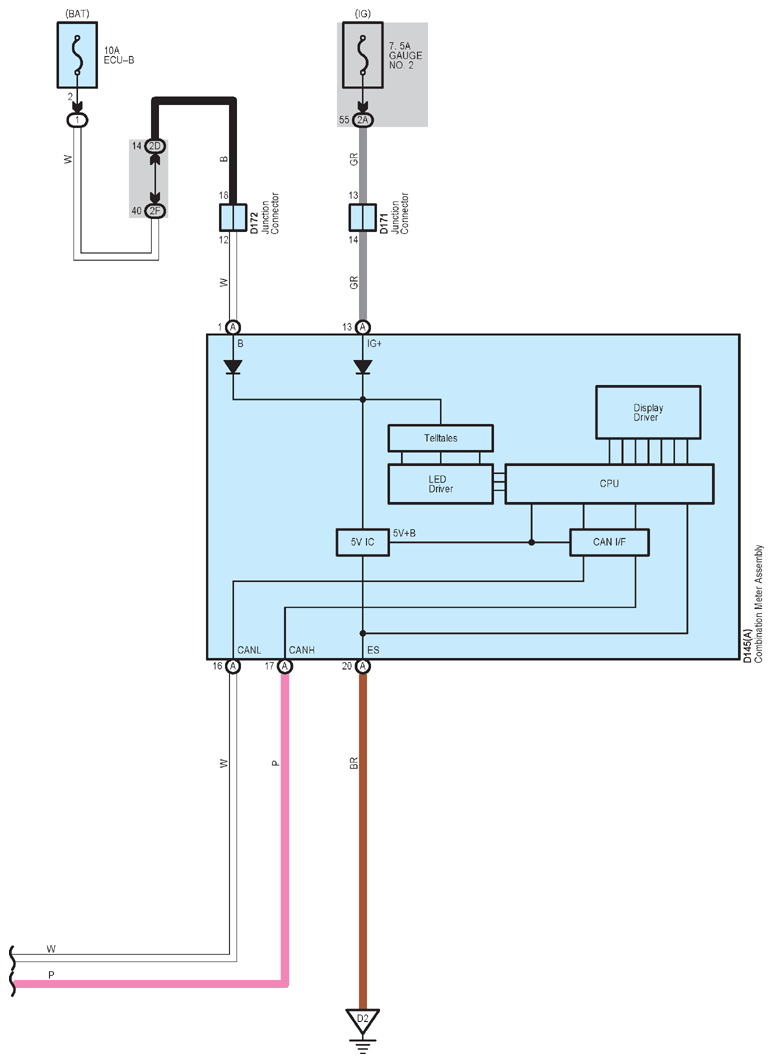

Fig 3: AWD (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

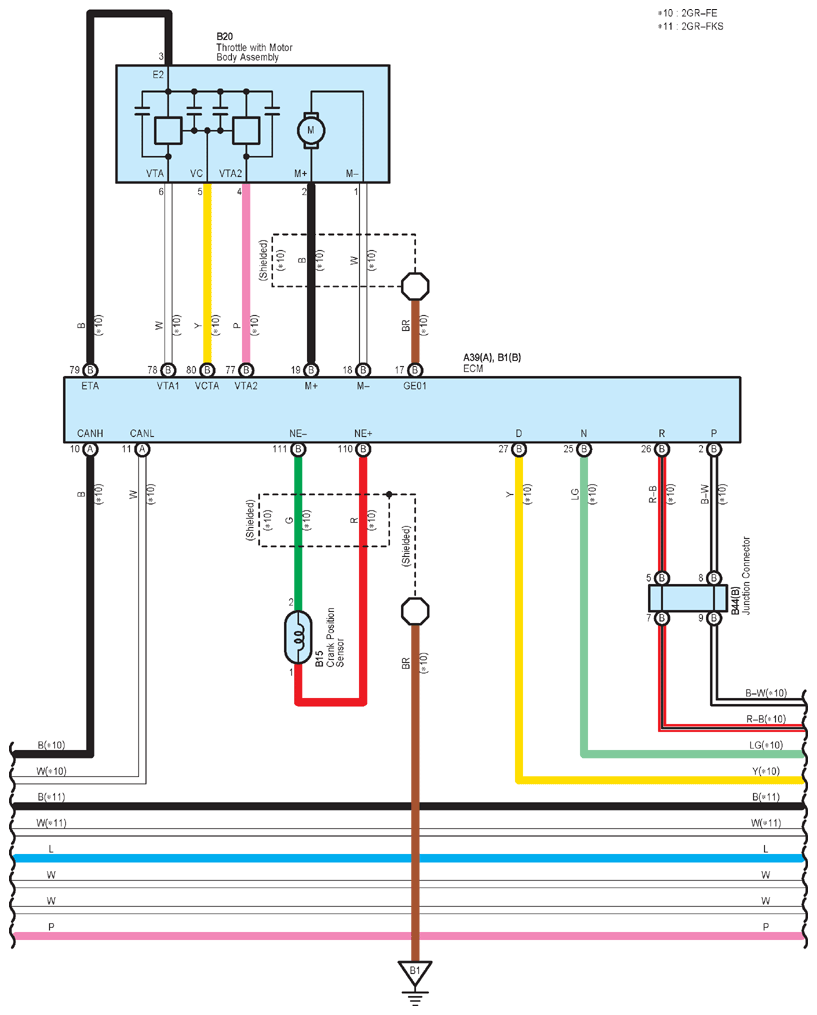

Fig 4: AWD (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

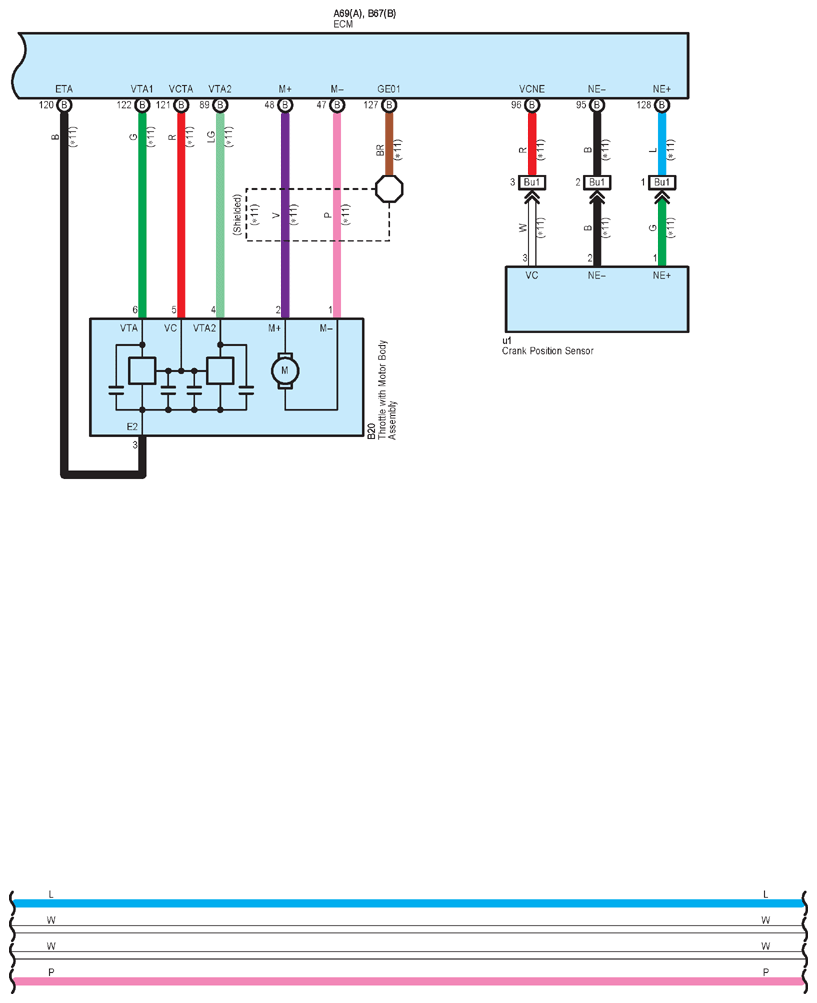

Fig 5: AWD (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

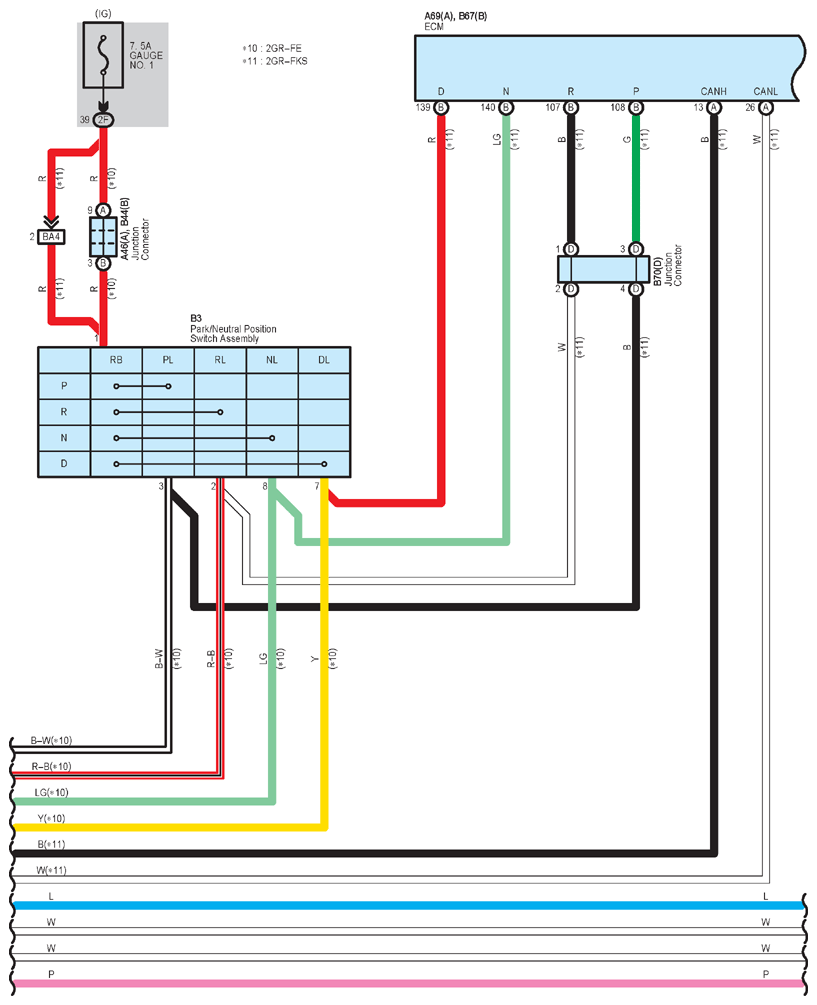

Fig 6: AWD (6 Of 8)

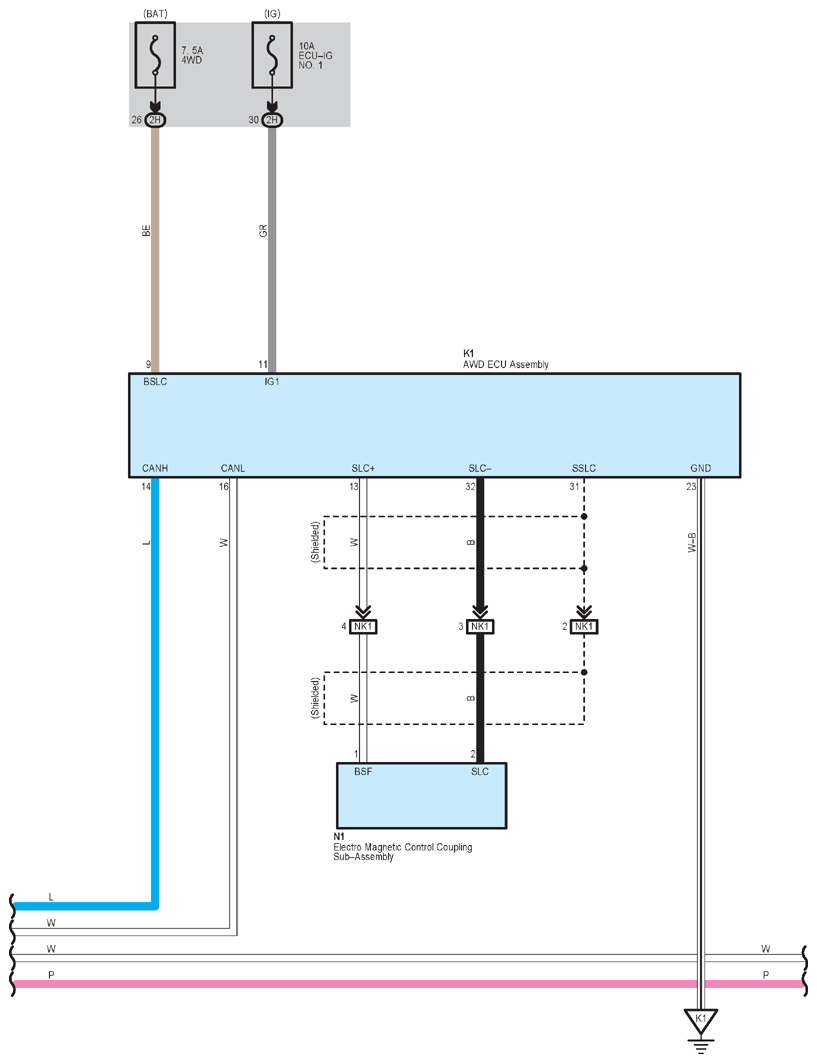

Fig 7: AWD (7 Of 8)

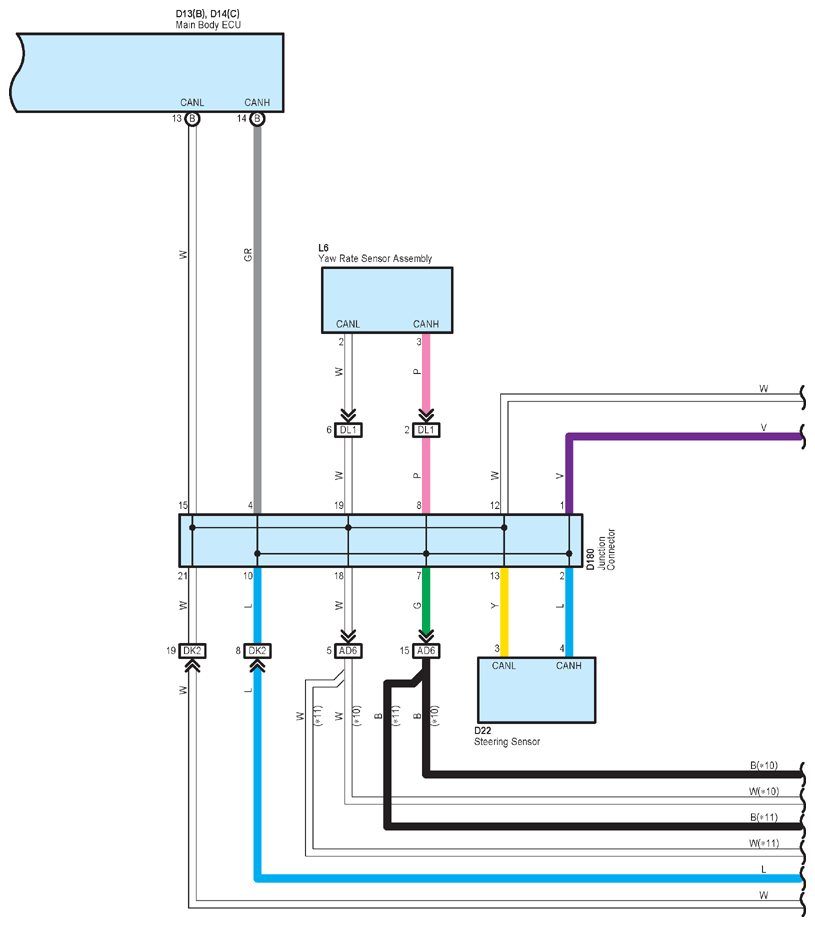

Fig 8: AWD (8 Of 8)
