System Diagrams

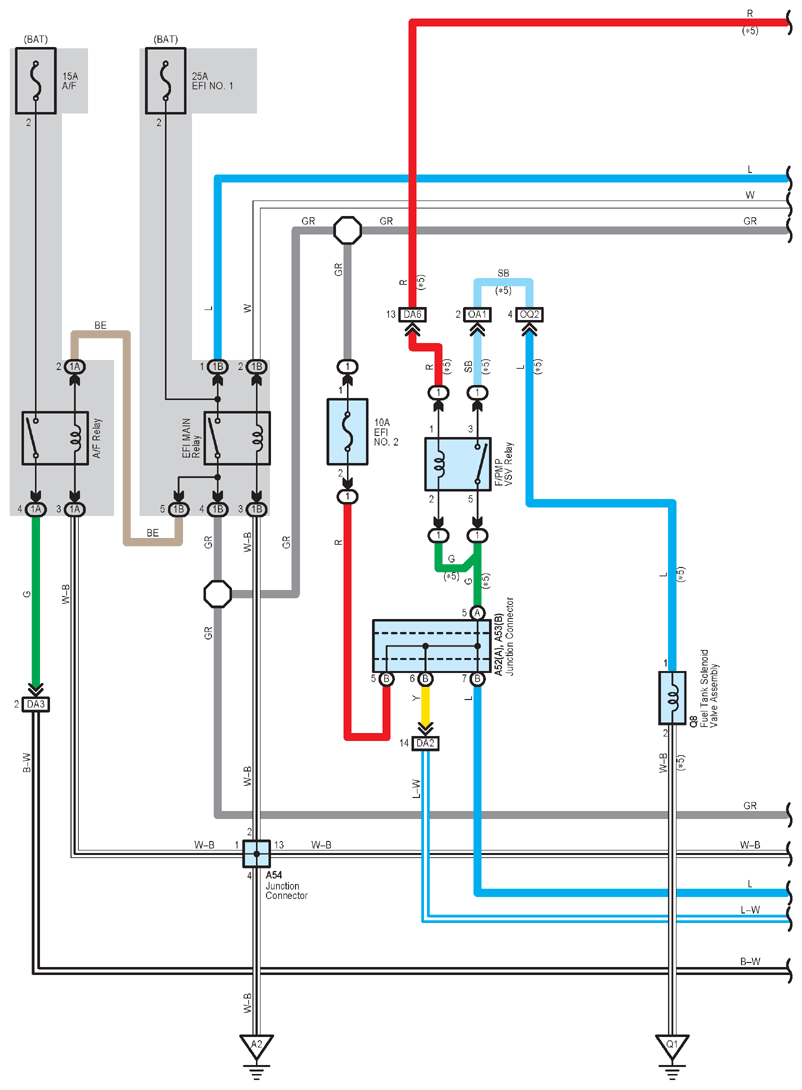

Fig 1: Engine Control (1 Of 15)

G12215609

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

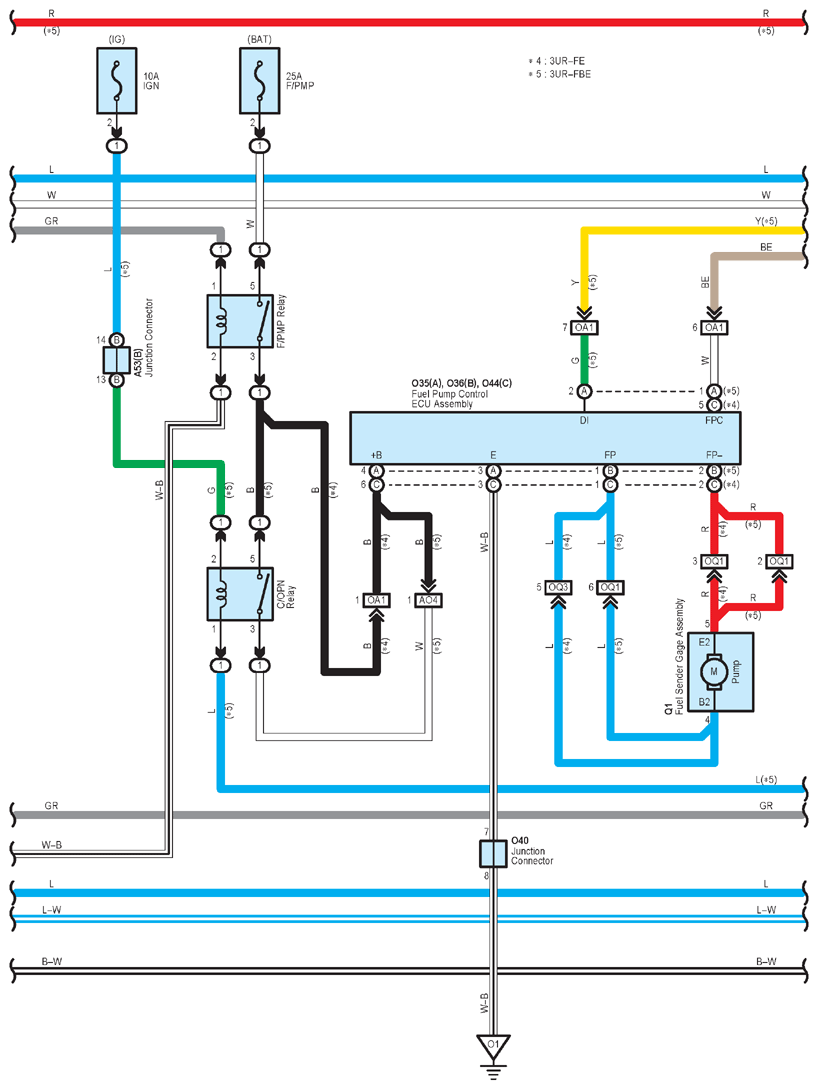

Fig 2: Engine Control (2 Of 15)

G12215610

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

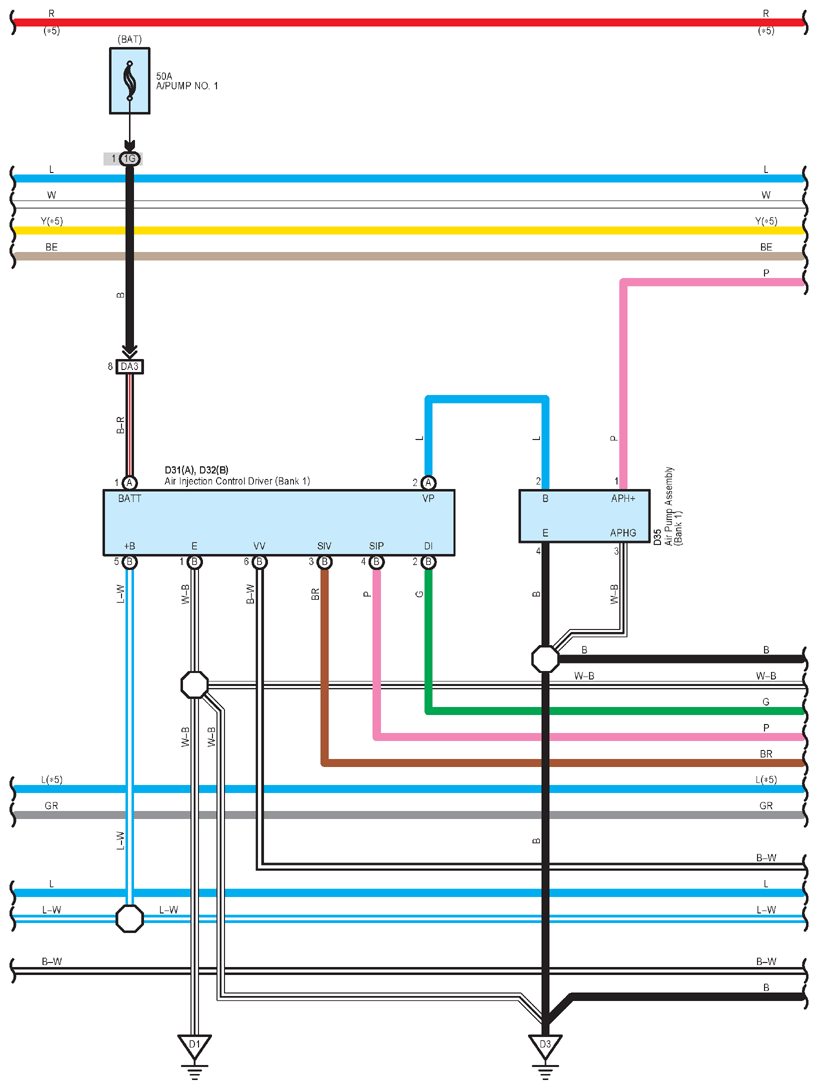

Fig 3: Engine Control (3 Of 15)

G12215611

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

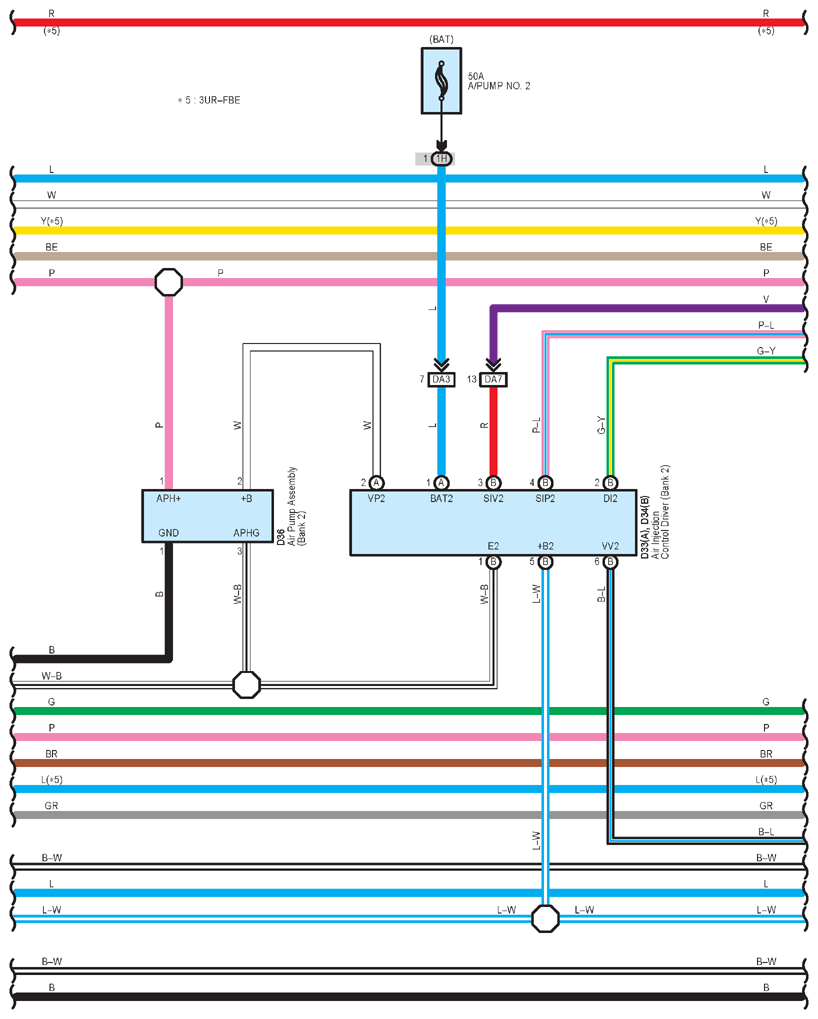

Fig 4: Engine Control (4 Of 15)

G12215612

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

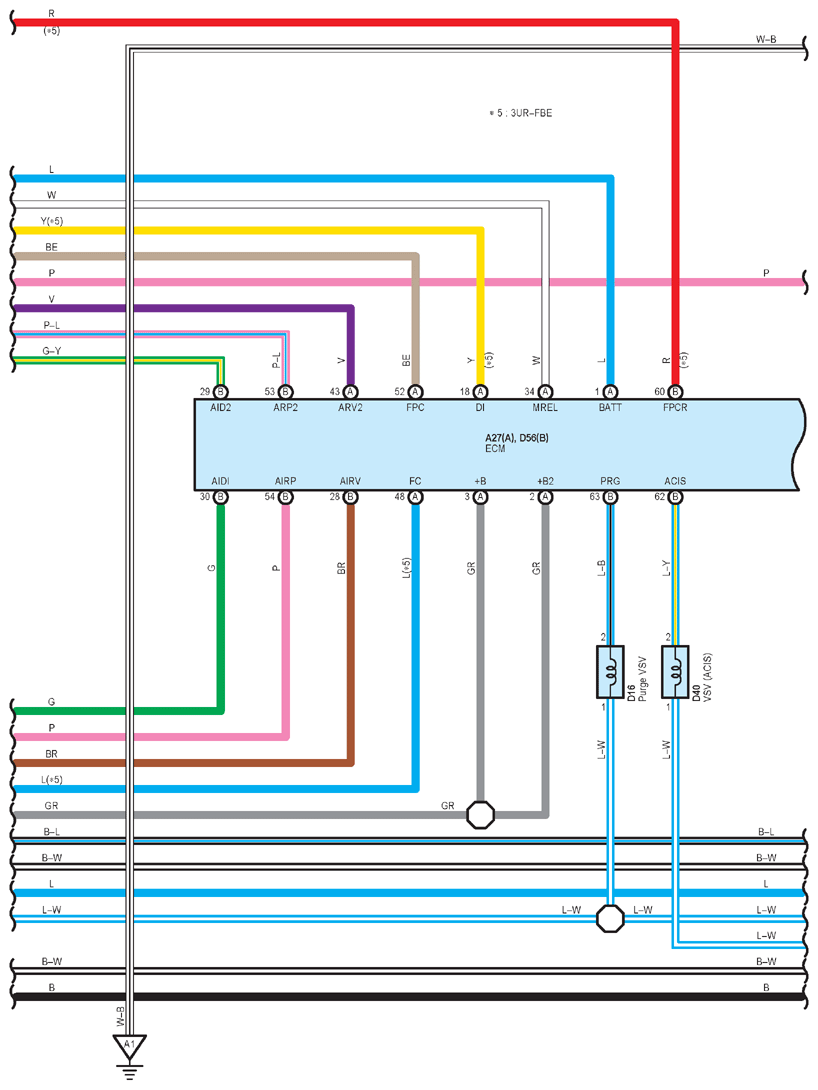

Fig 5: Engine Control (5 Of 15)

G12215613

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

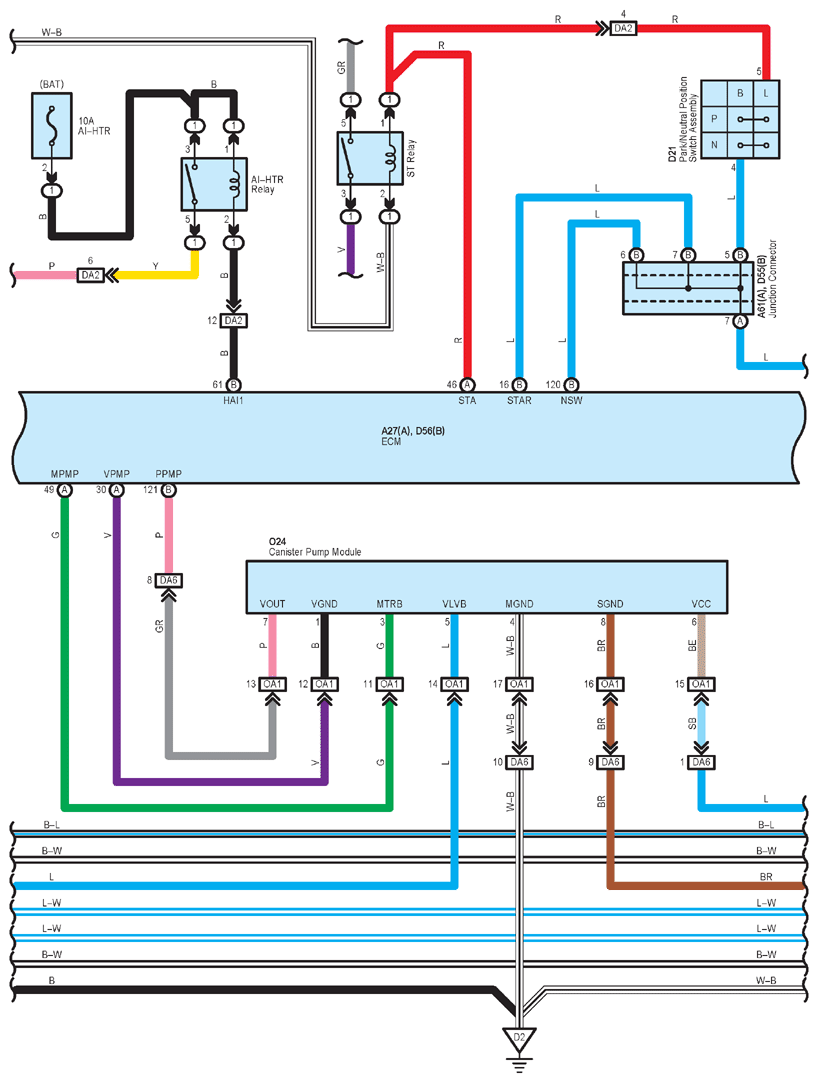

Fig 6: Engine Control (6 Of 15)

G12215614

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

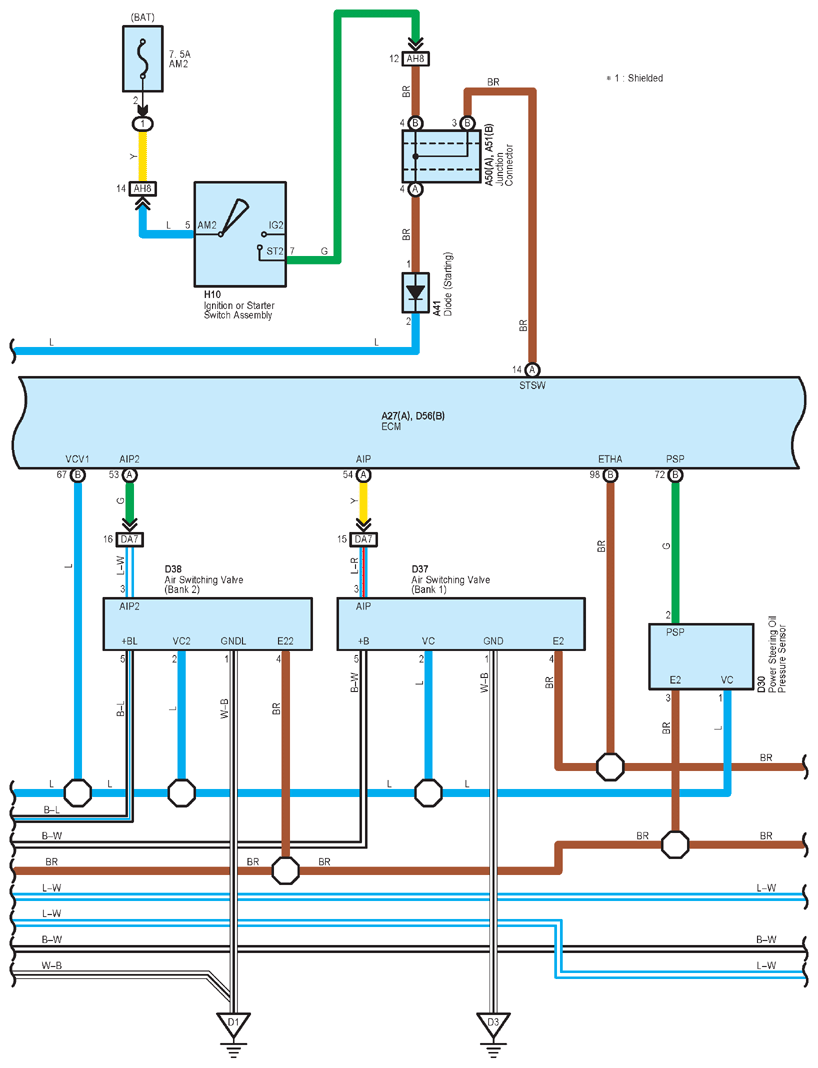

Fig 7: Engine Control (7 Of 15)

G12215615

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

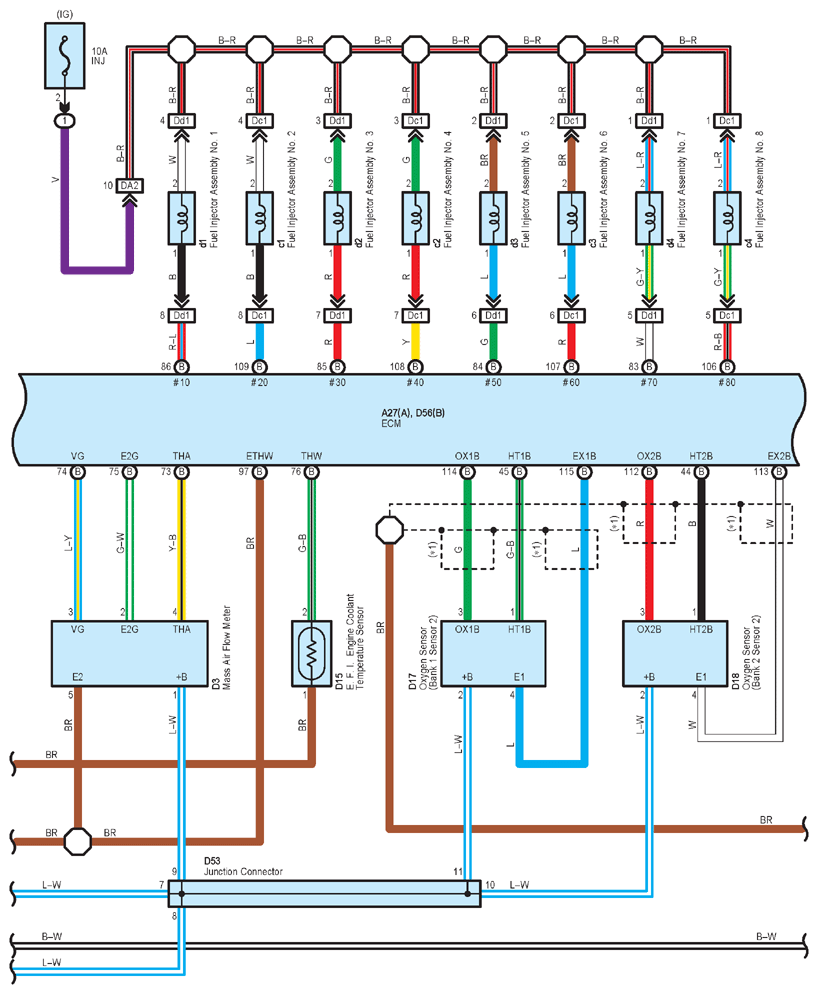

Fig 8: Engine Control (8 Of 15)

G12215616

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

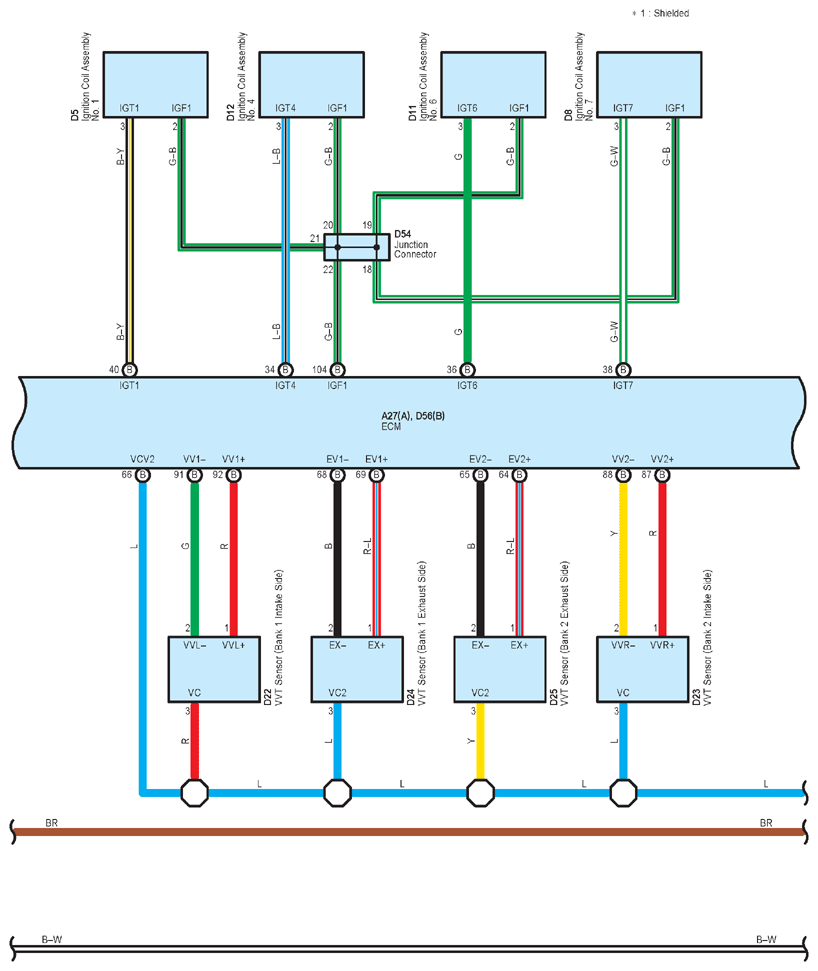

Fig 9: Engine Control (9 Of 15)

G12215617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

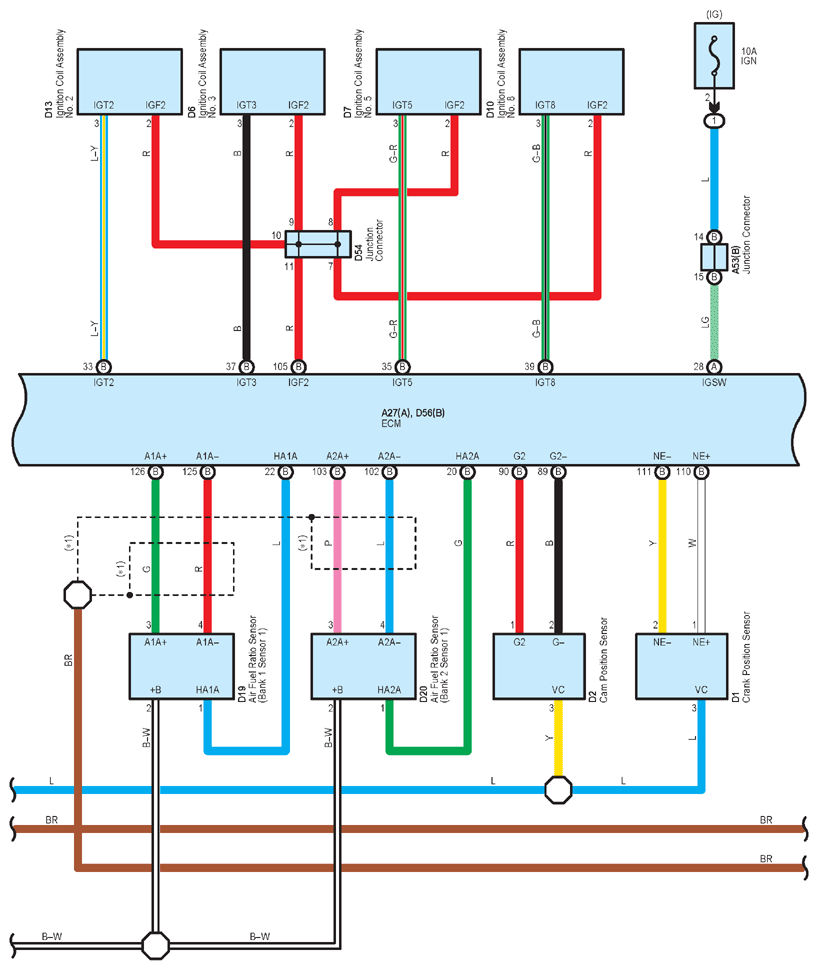

Fig 10: Engine Control (10 Of 15)

G12215618

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

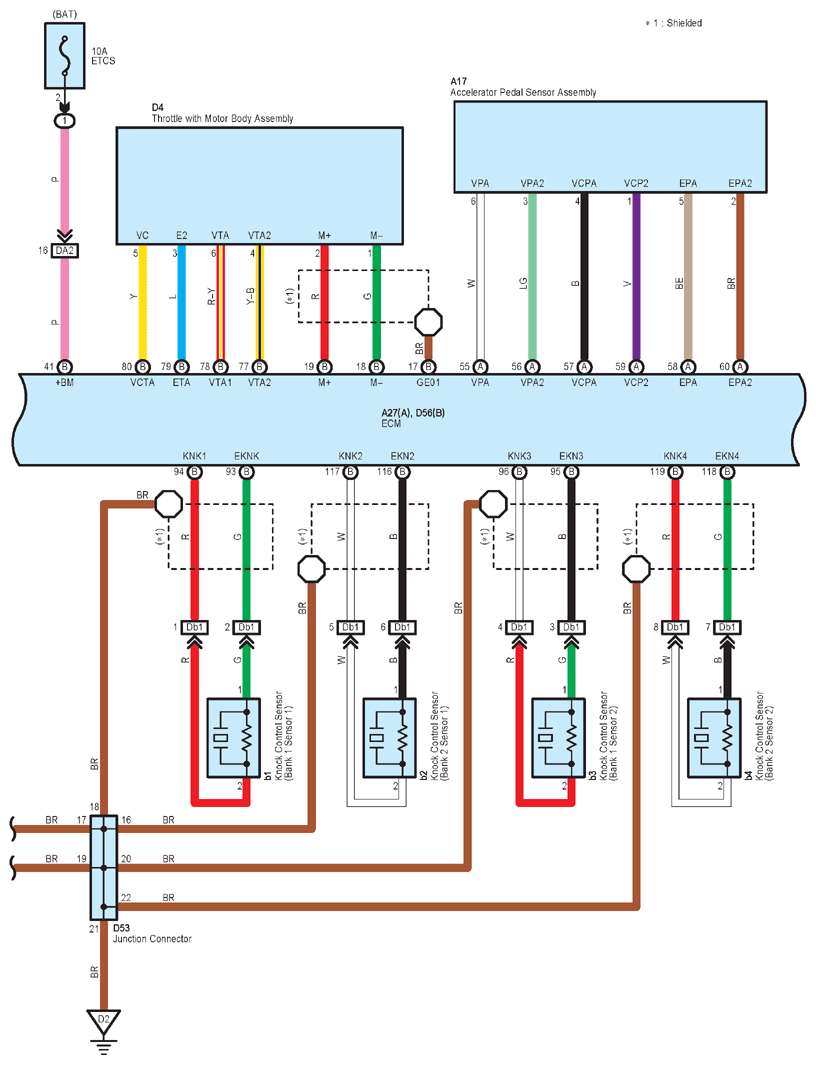

Fig 11: Engine Control (11 Of 15)

G12215619

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

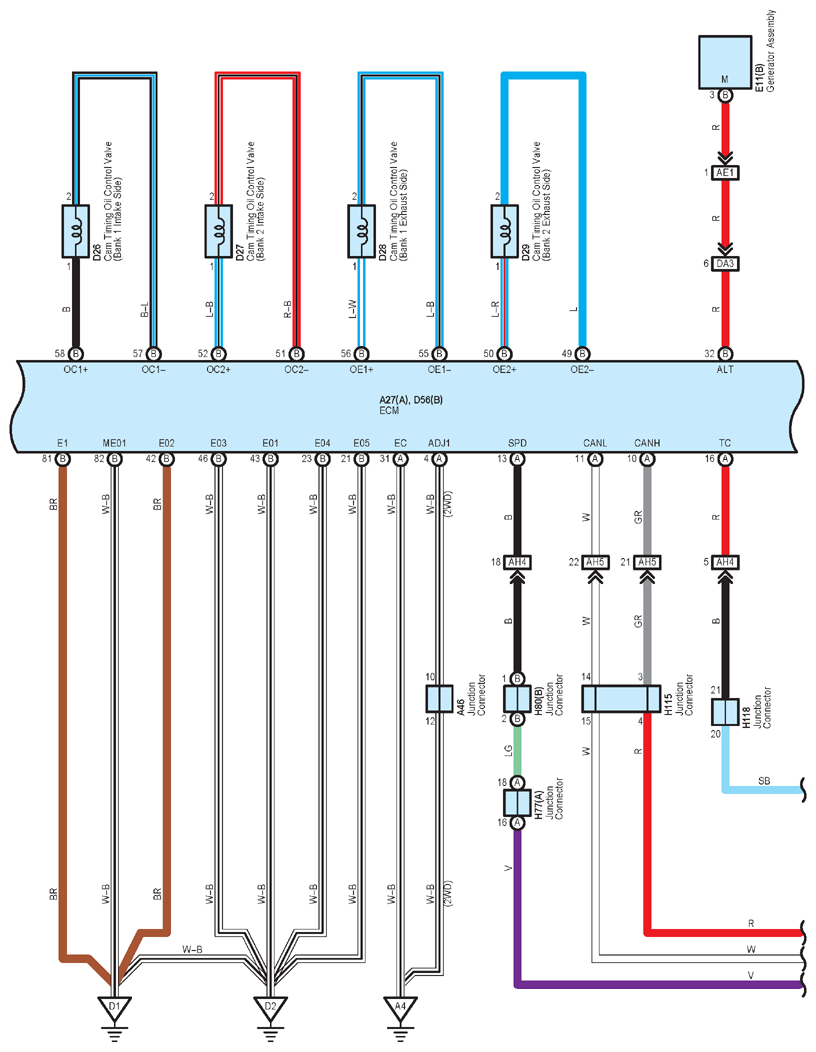

Fig 12: Engine Control (12 Of 15)

G12215620

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

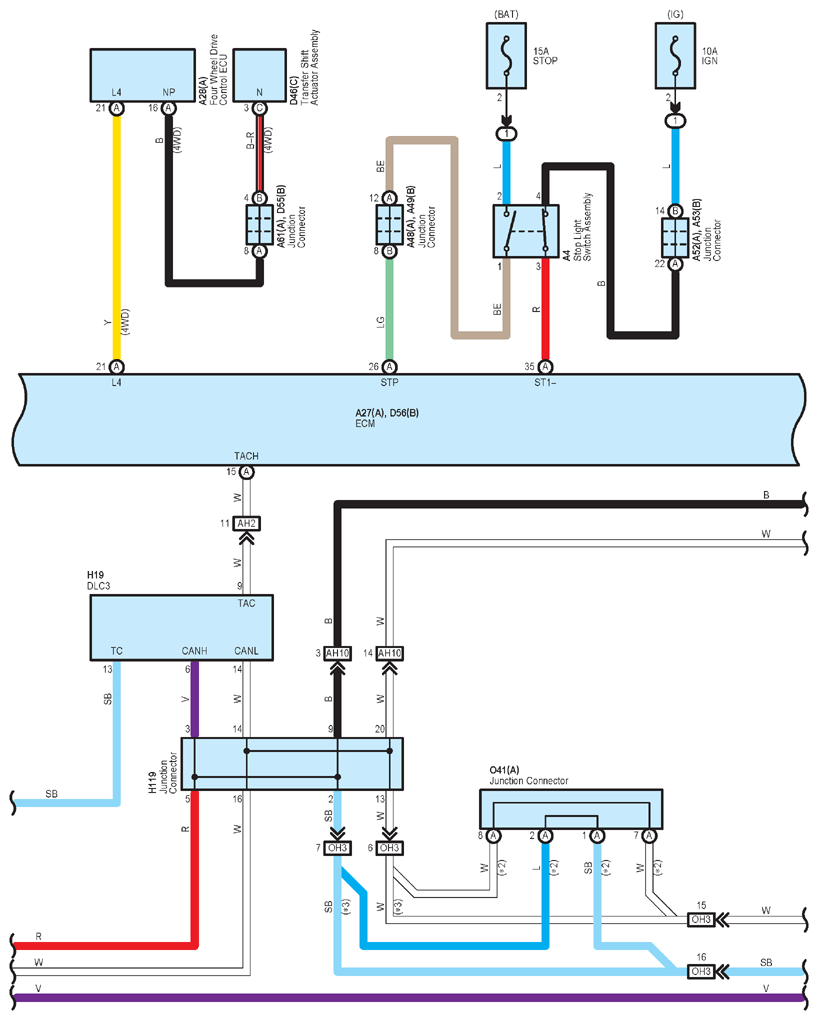

Fig 13: Engine Control (13 Of 15)

G12215621

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

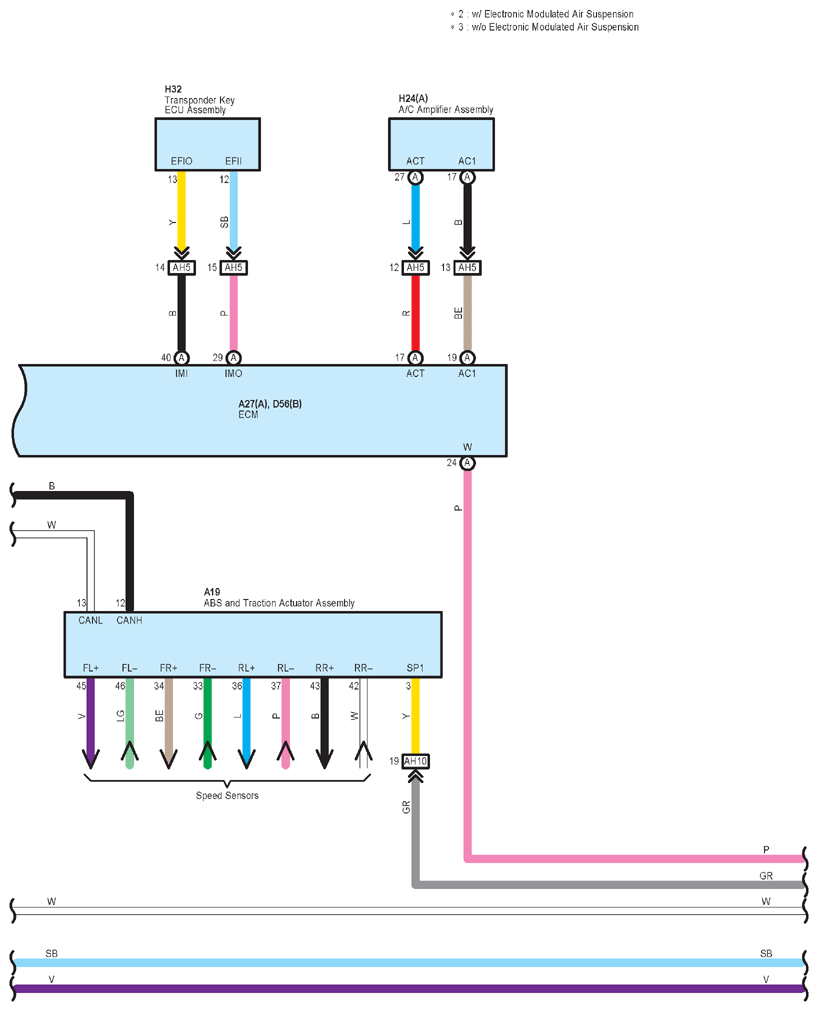

Fig 14: Engine Control (14 Of 15)

G12215622

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

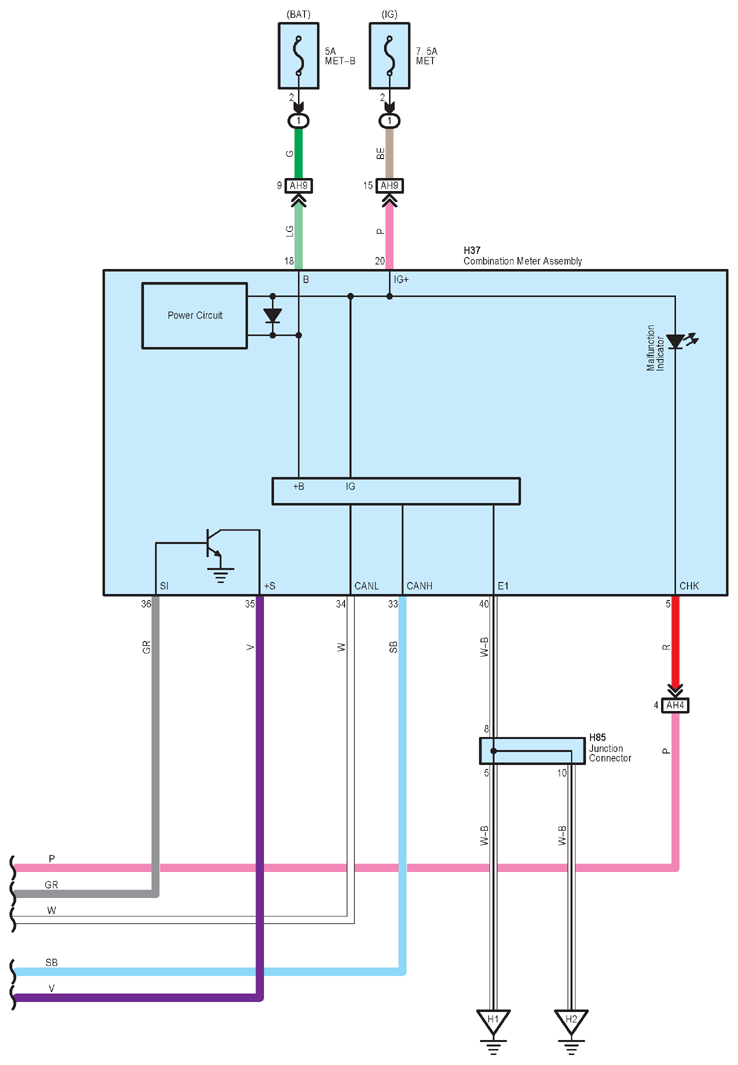

Fig 15: Engine Control (15 Of 15)

G12215623

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
