System Diagrams — 2016 Toyota Sequoia SR5, 5.7L Eng VIN W Service Manual ~ LEMON Manuals

Fig 1: Door Lock Control (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

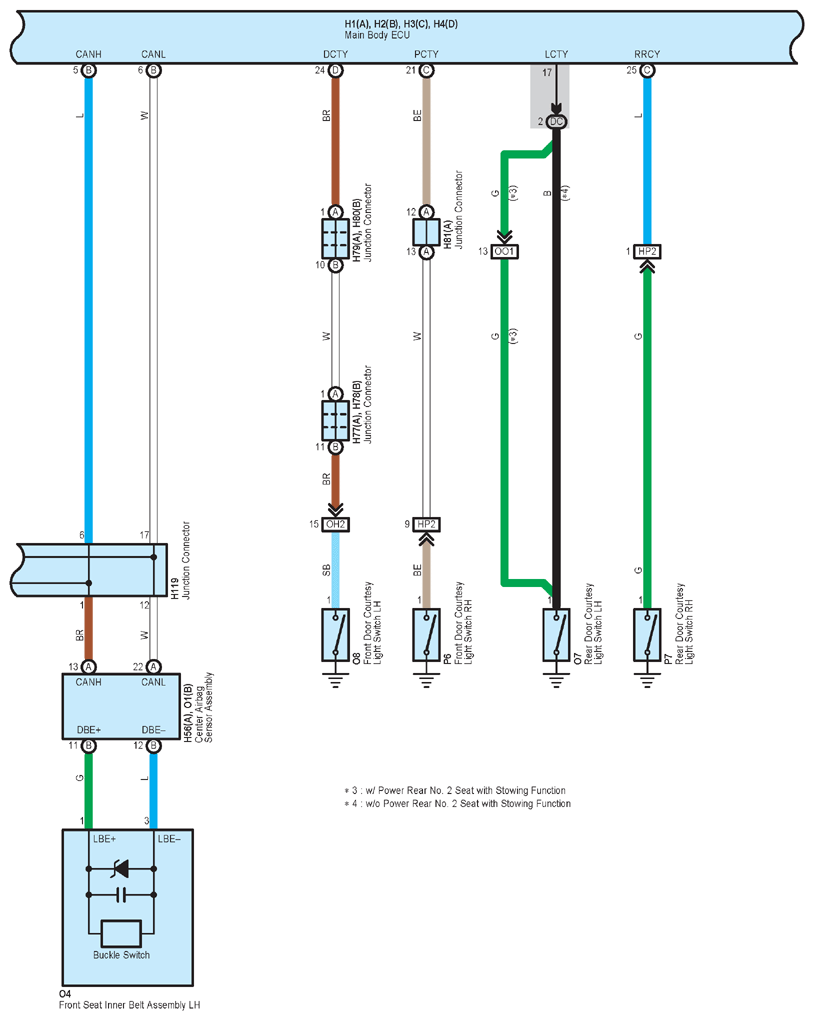

Fig 2: Door Lock Control (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

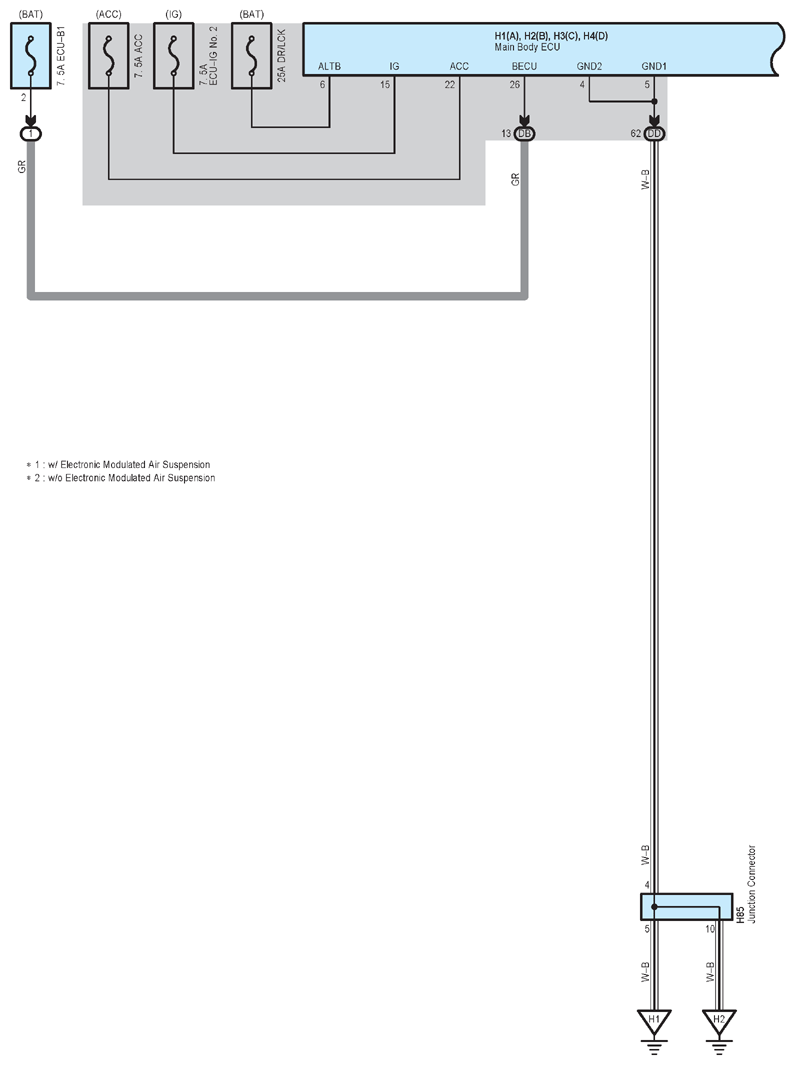

Fig 3: Door Lock Control (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

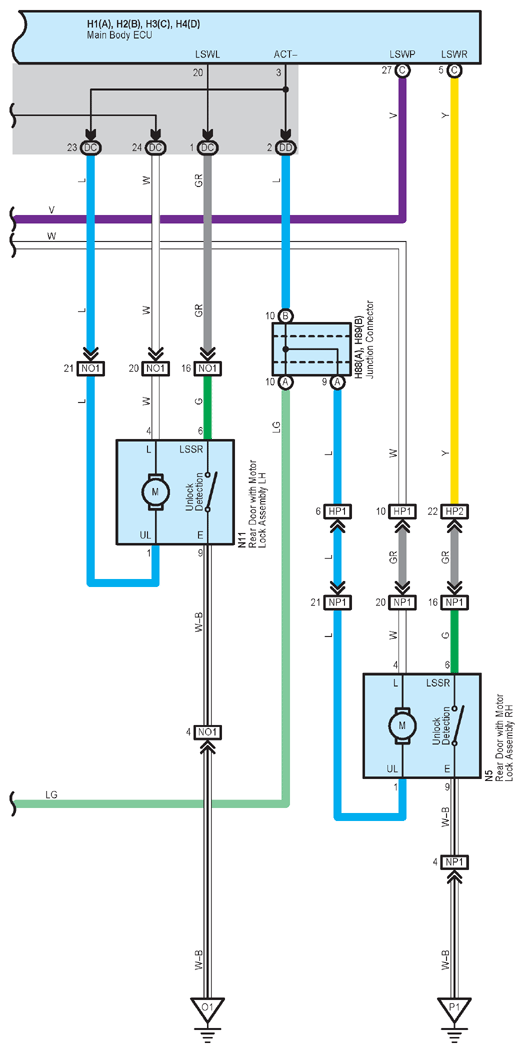

Fig 4: Door Lock Control (4 Of 5)

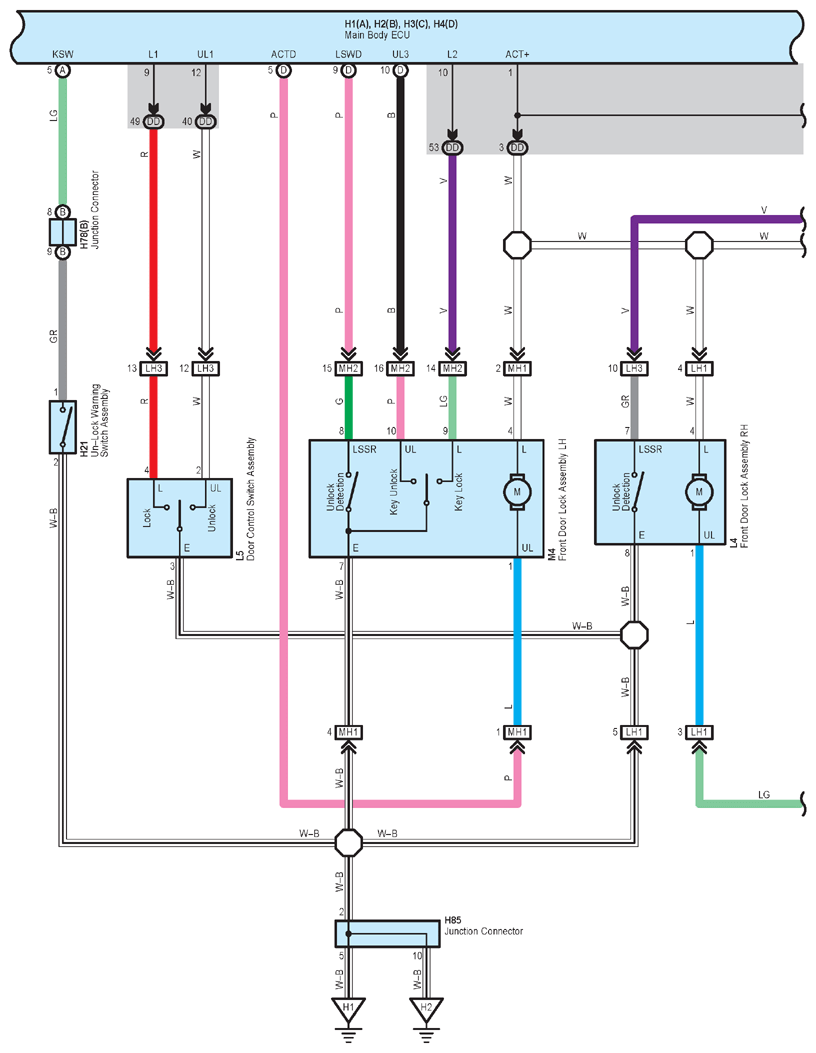

Fig 5: Door Lock Control (5 Of 5)
