System Diagrams

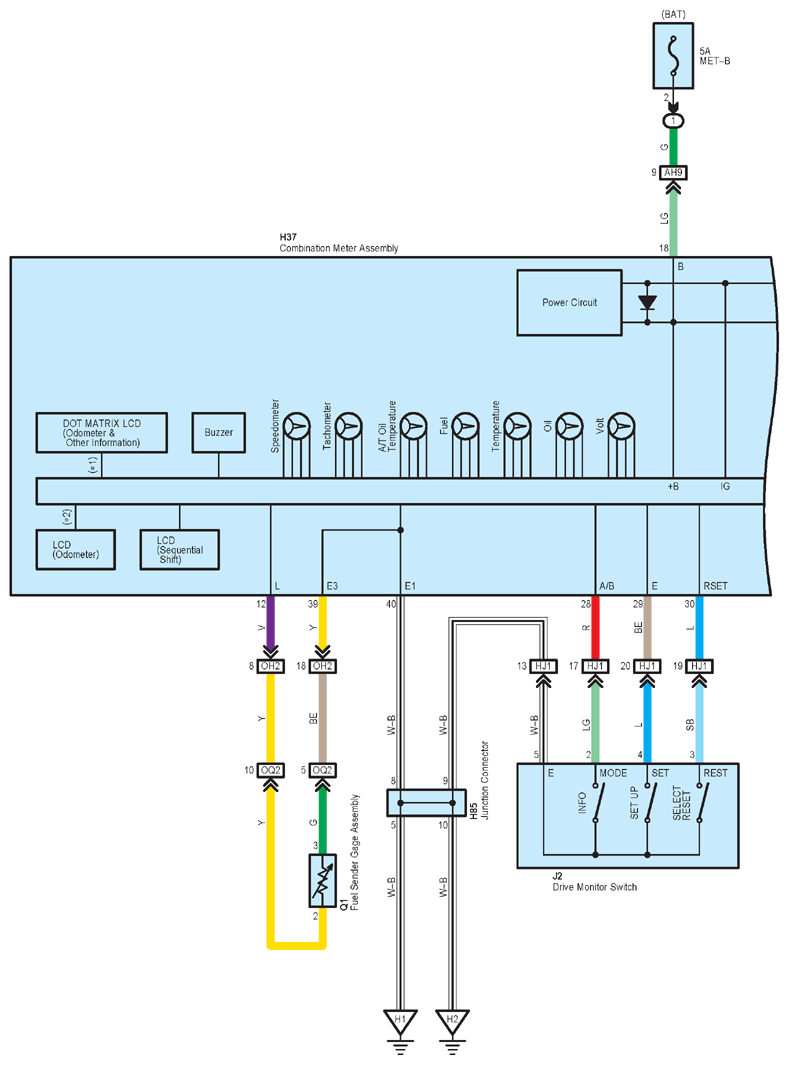

Fig 1: Combination Meter (1 Of 10)
G12215544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

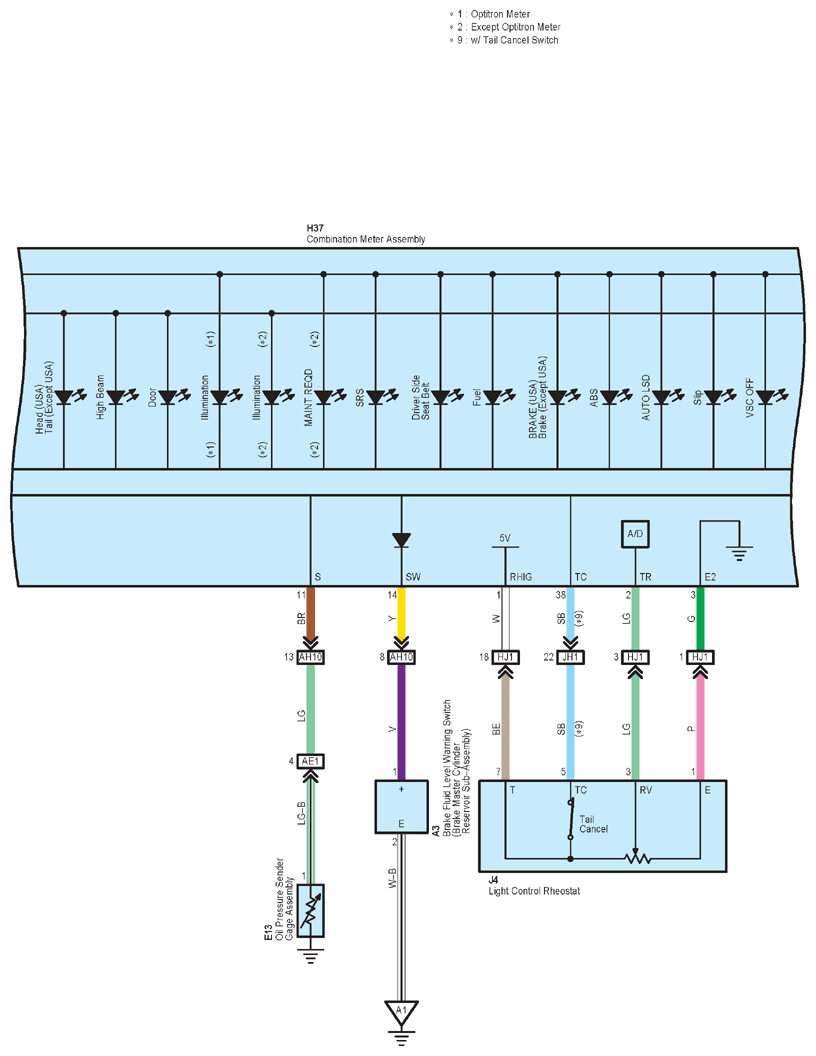

Fig 2: Combination Meter (2 Of 10)
G12215545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

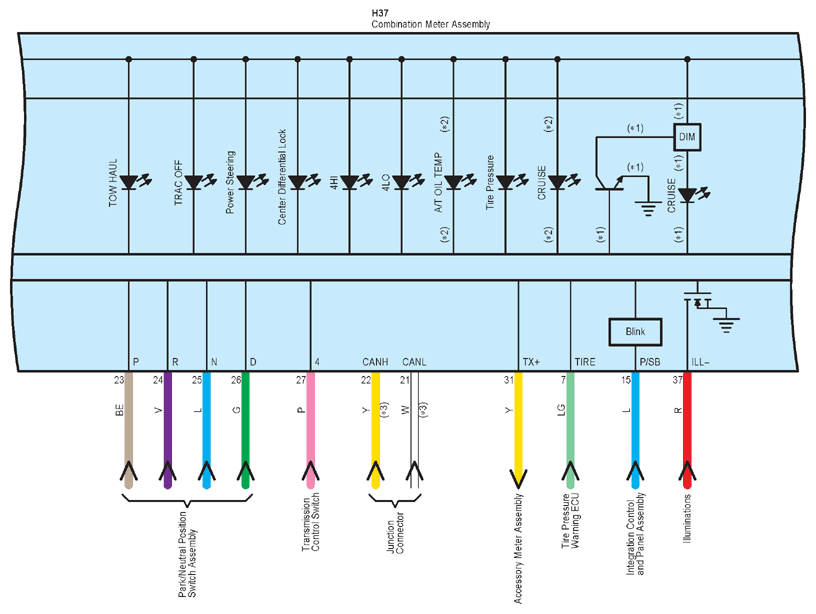

Fig 3: Combination Meter (3 Of 10)
G12215546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

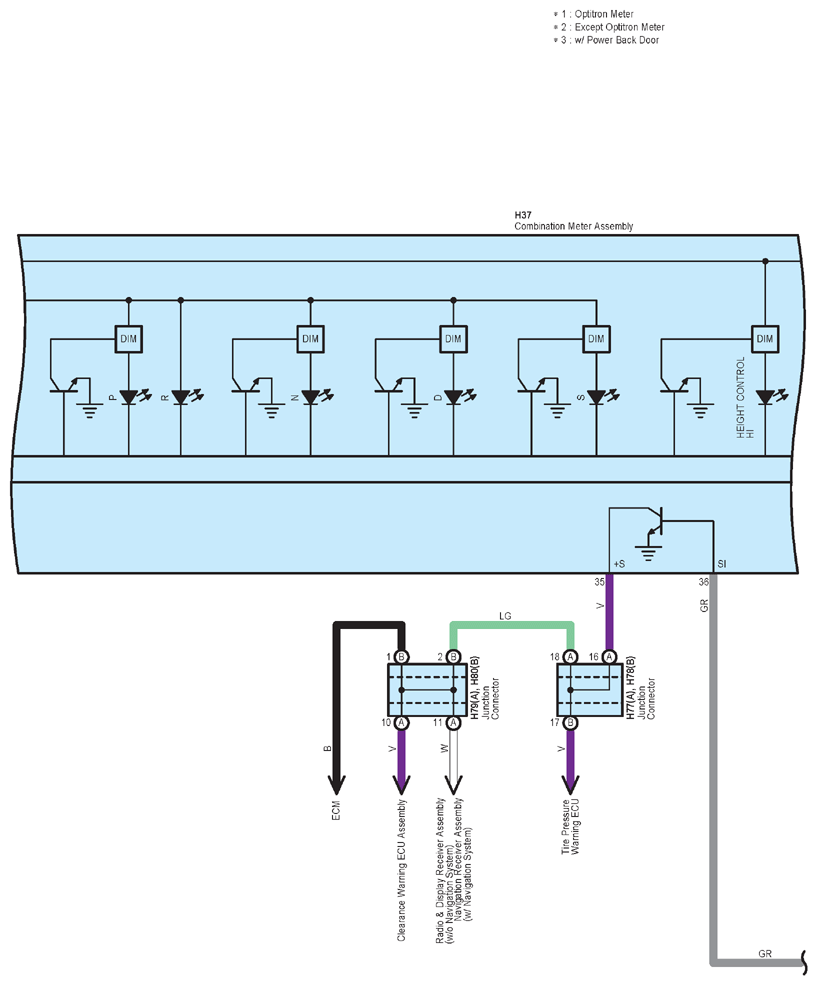

Fig 4: Combination Meter (4 Of 10)
G12215547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

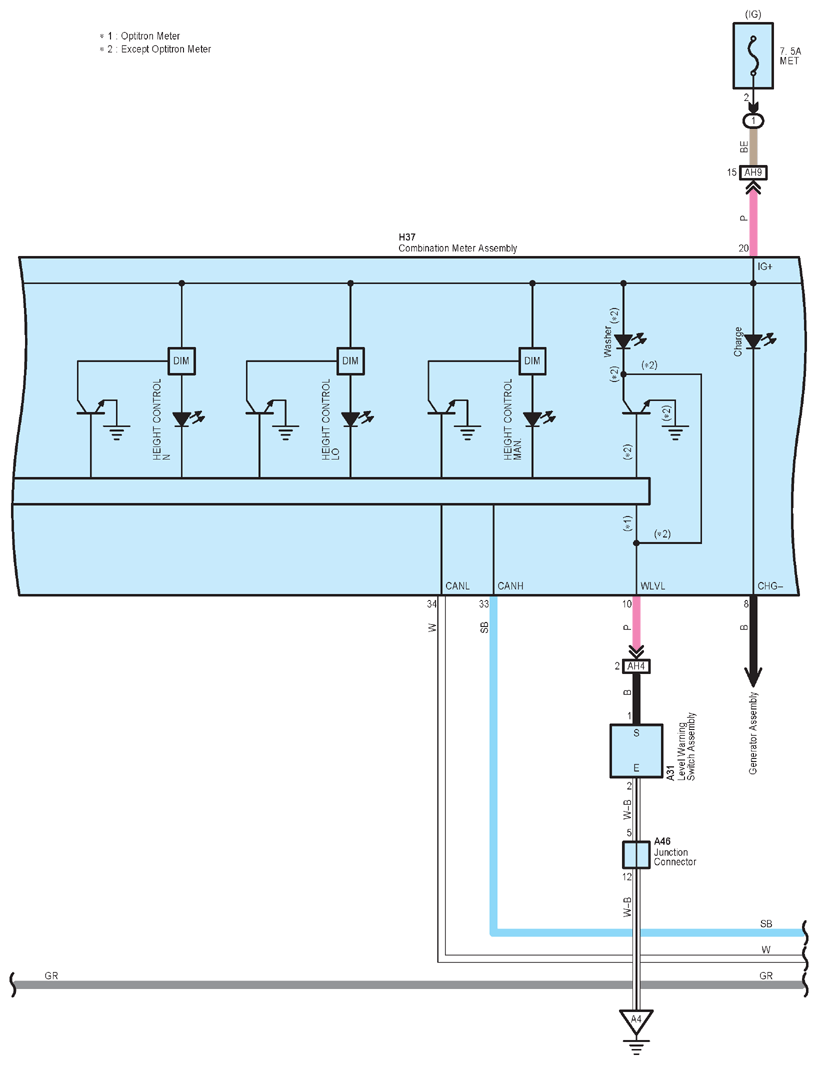

Fig 5: Combination Meter (5 Of 10)
G12215548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

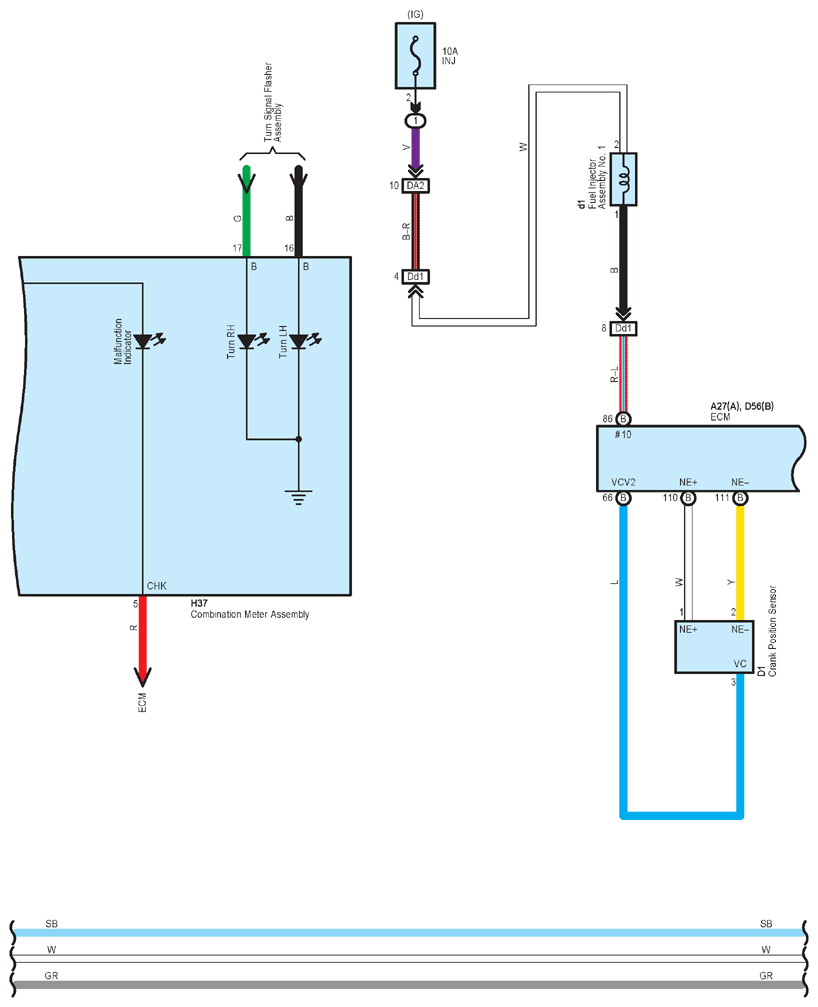

Fig 6: Combination Meter (6 Of 10)
G12215549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

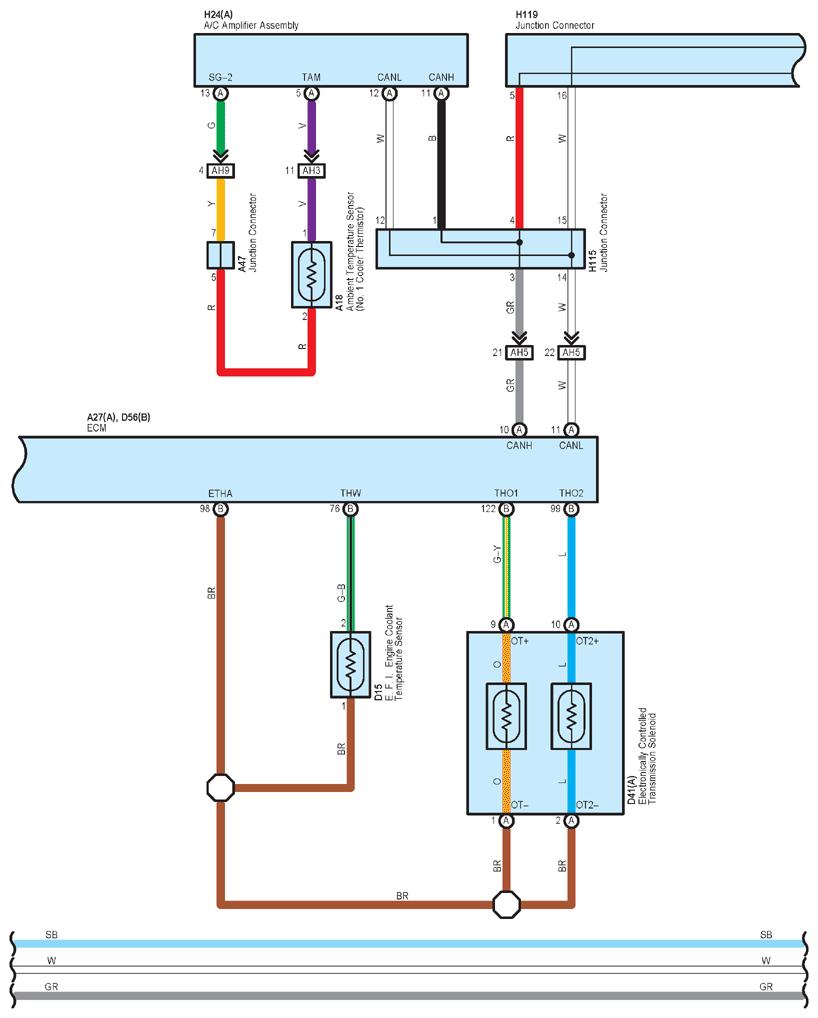

Fig 7: Combination Meter (7 Of 10)
G12215550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

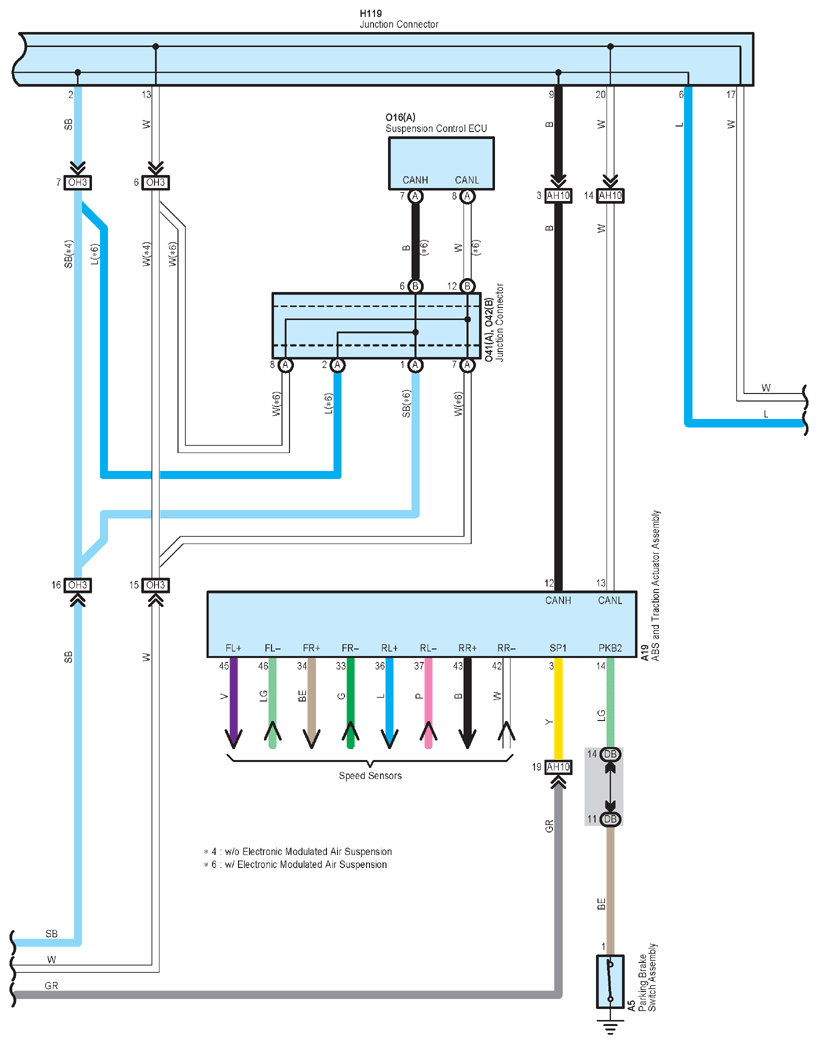

Fig 8: Combination Meter (8 Of 10)
G12215551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

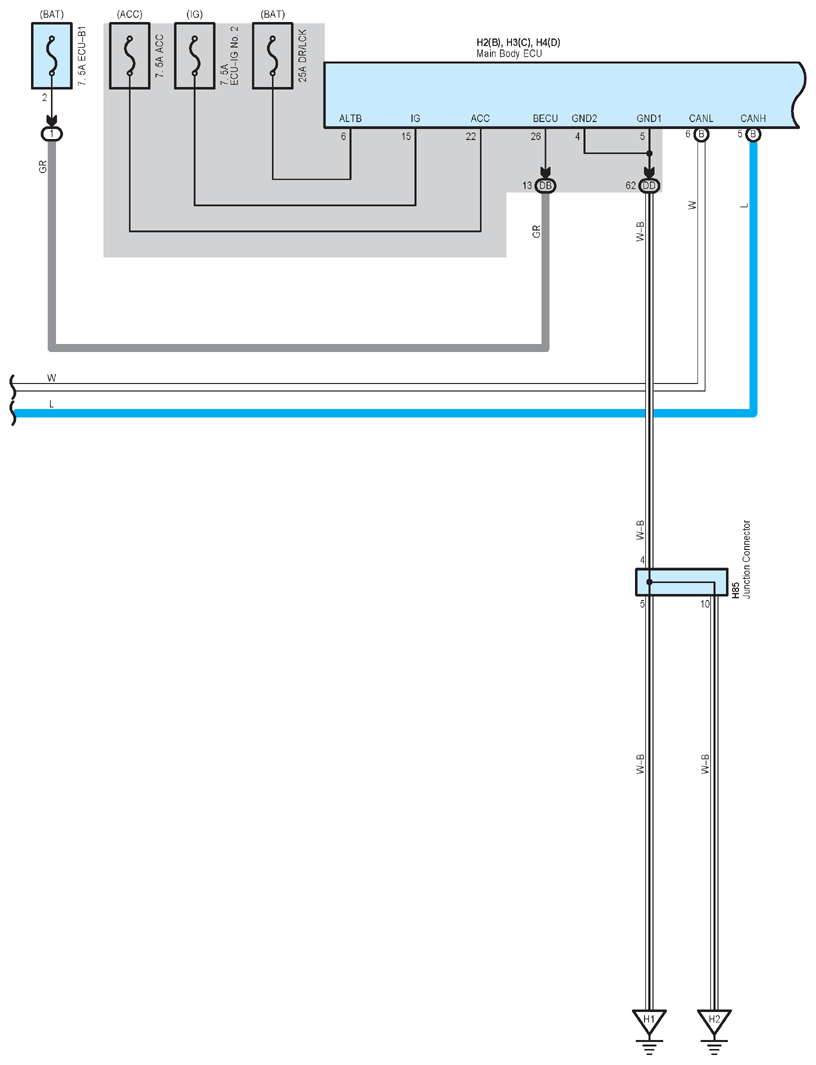

Fig 9: Combination Meter (9 Of 10)
G12215552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

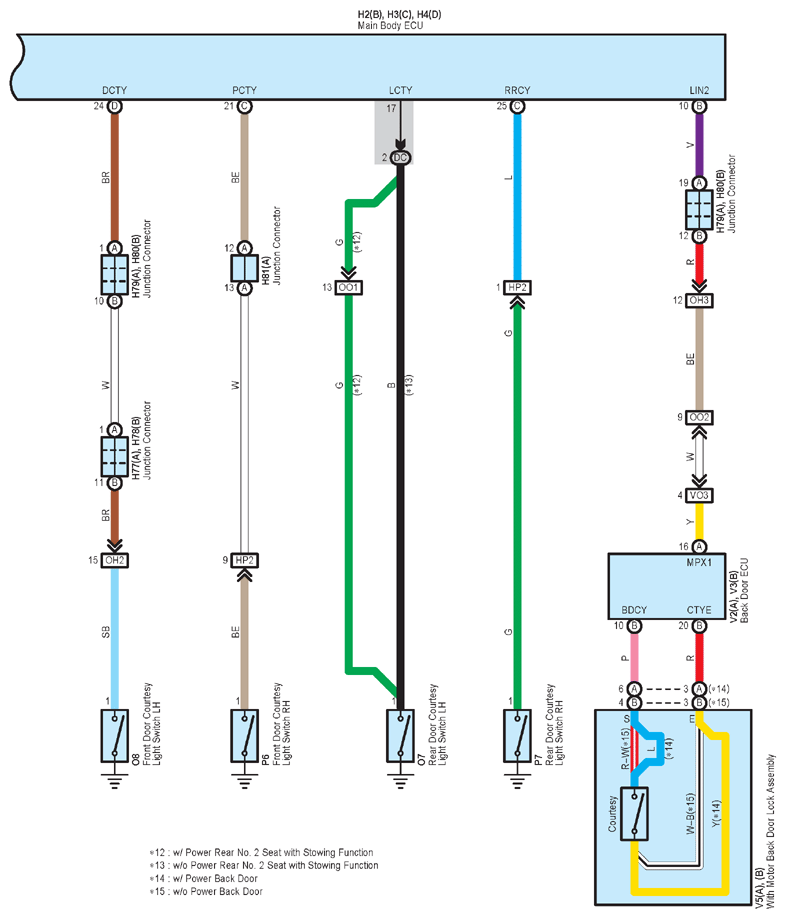

Fig 10: Combination Meter (10 Of 10)
G12215553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
