System Diagrams

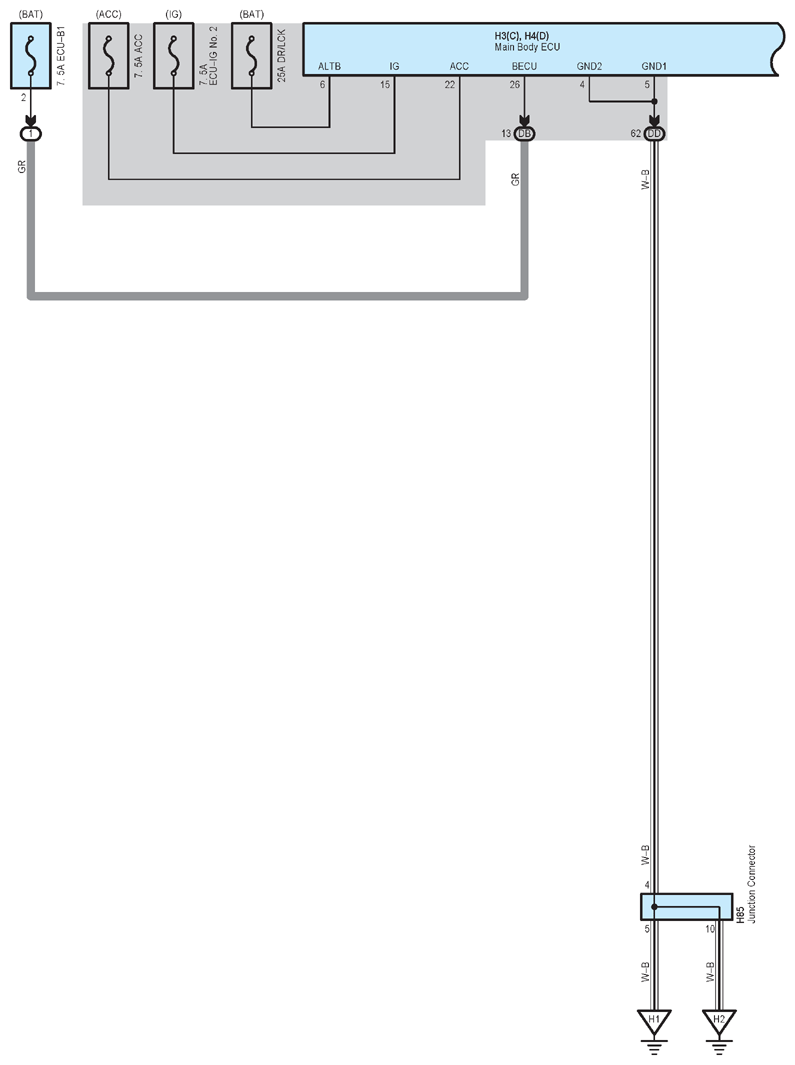

Fig 1: Automatic Light Control, Light Auto Turn Off System (1 Of 3)
G12215447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

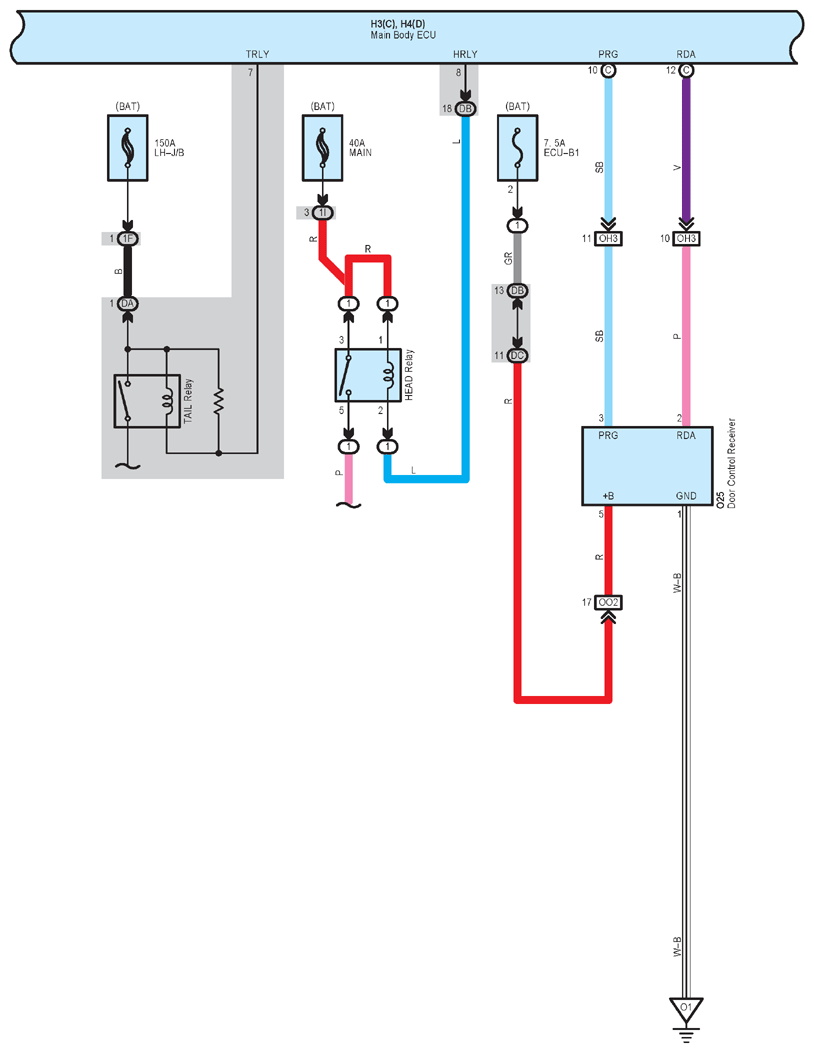

Fig 2: Automatic Light Control, Light Auto Turn Off System (2 Of 3)
G12215448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

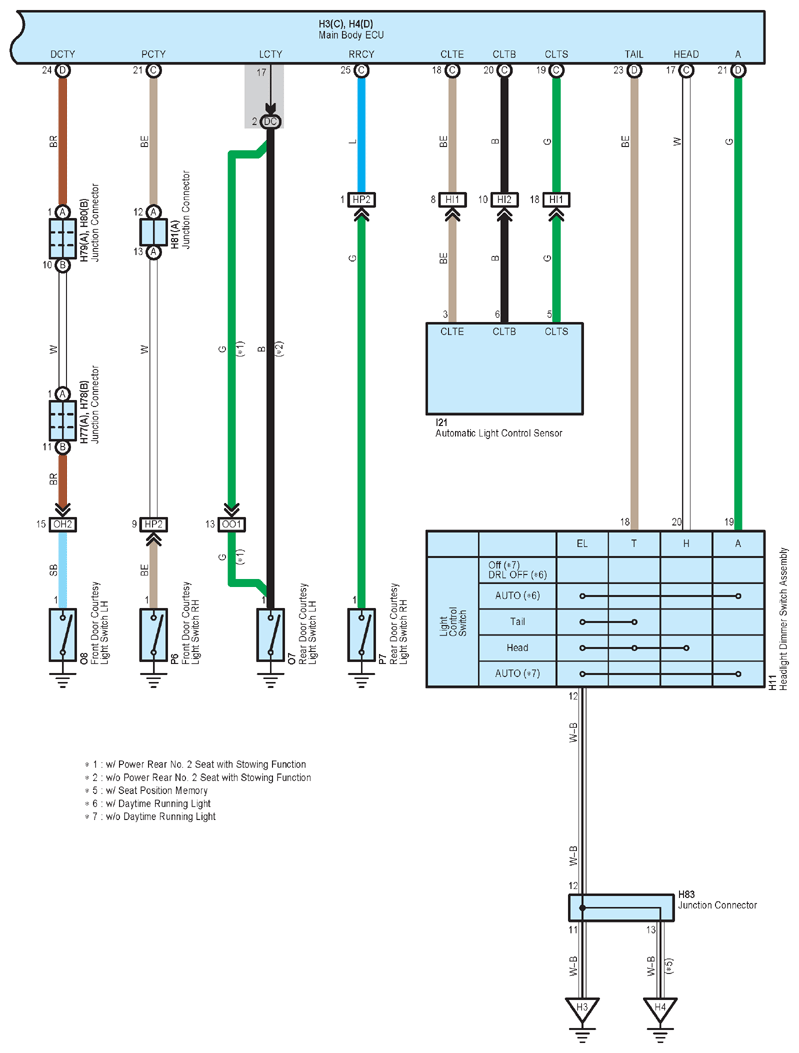

Fig 3: Automatic Light Control, Light Auto Turn Off System (3 Of 3)
G12215449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
