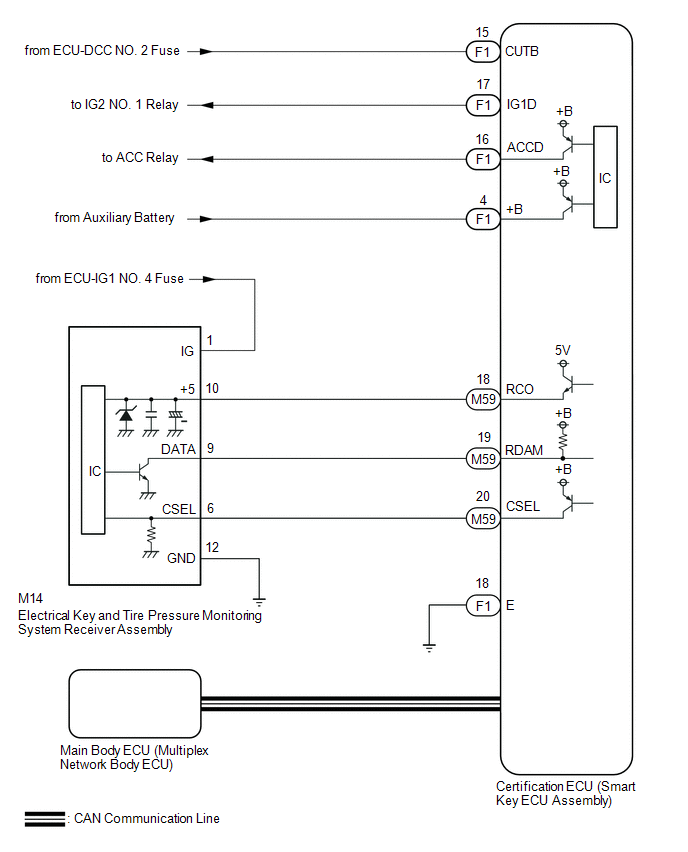

All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [11/2015 - 12/2018]: Wiring Diagram

GTY553084

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
