Multi Mode 4WD: Connectors

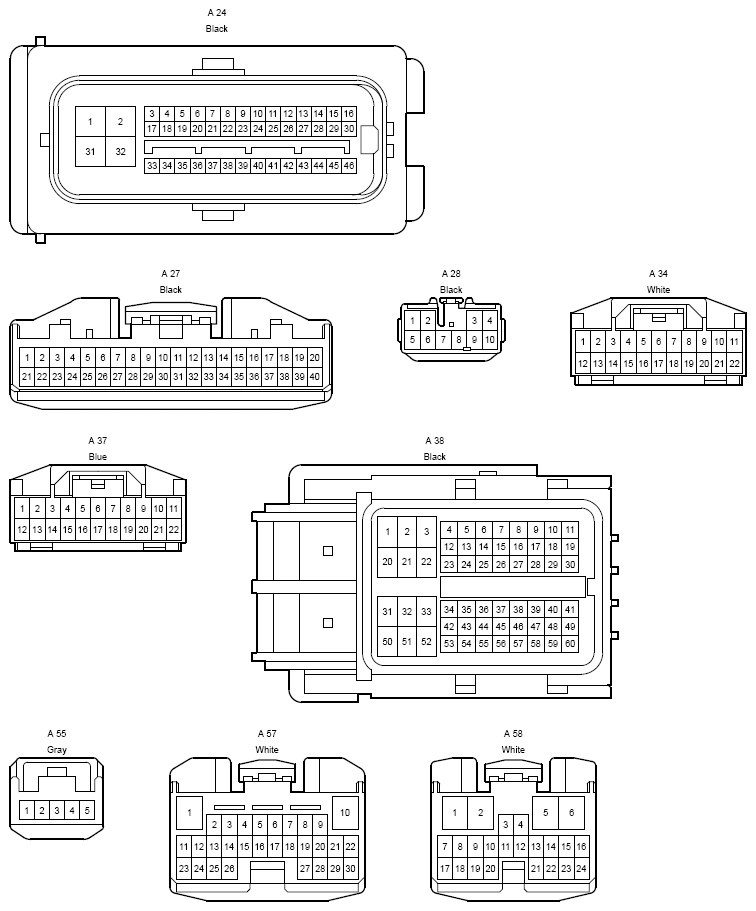

Fig 1: Connectors (1 Of 5)
G12206576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

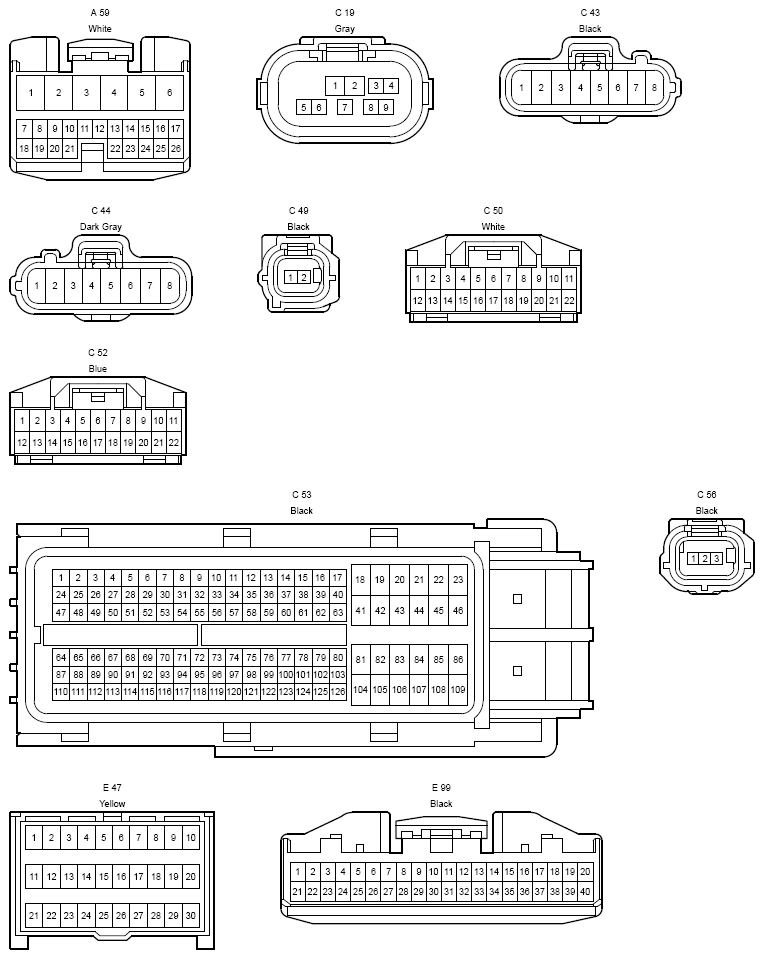

Fig 2: Connectors (2 Of 5)
G12206577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

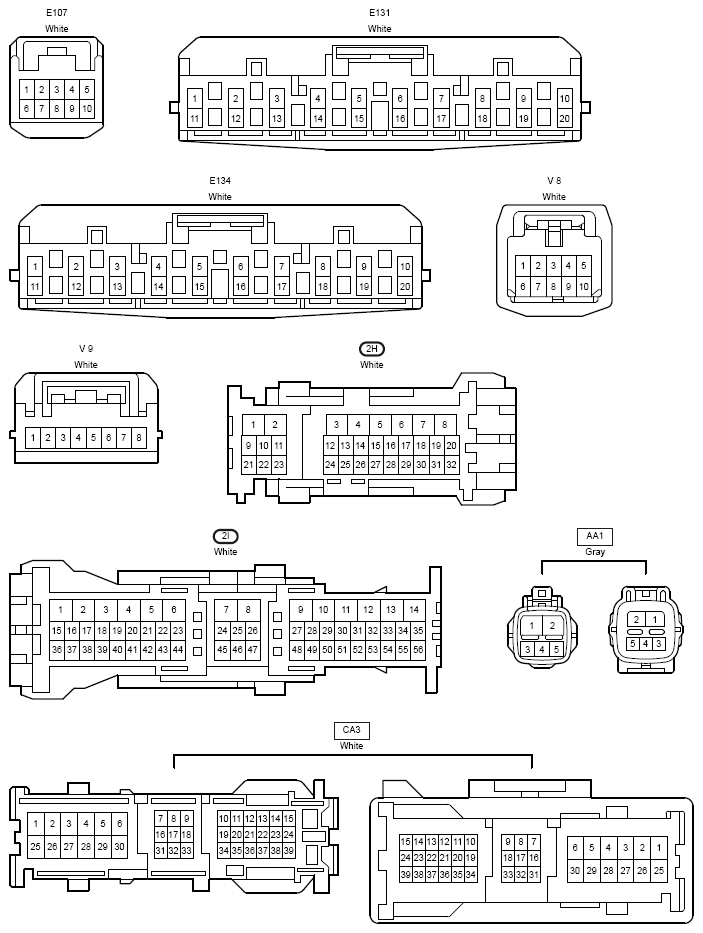

Fig 3: Connectors (3 Of 5)
G12206578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

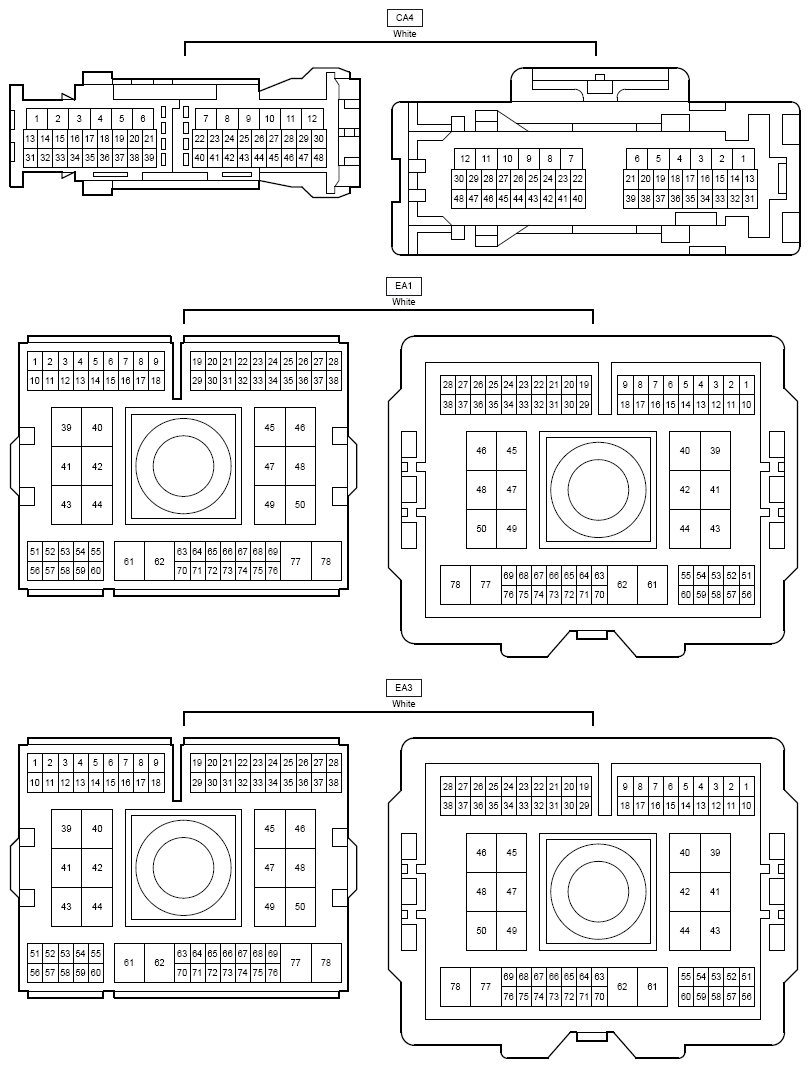

Fig 4: Connectors (4 Of 5)
G12206579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Connectors (5 Of 5)
G12206580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
