System Diagrams

Fig 1: Automatic Light Control, Light Auto Turn Off System (1 Of 3)
G12199360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

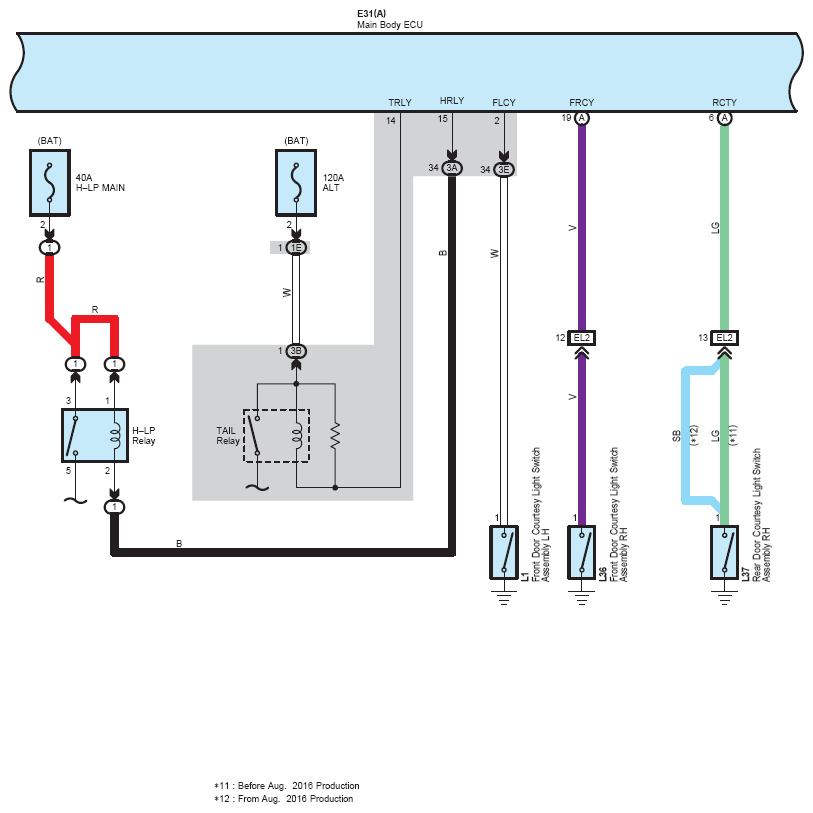

Fig 2: Automatic Light Control, Light Auto Turn Off System (2 Of 3)
G12199361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

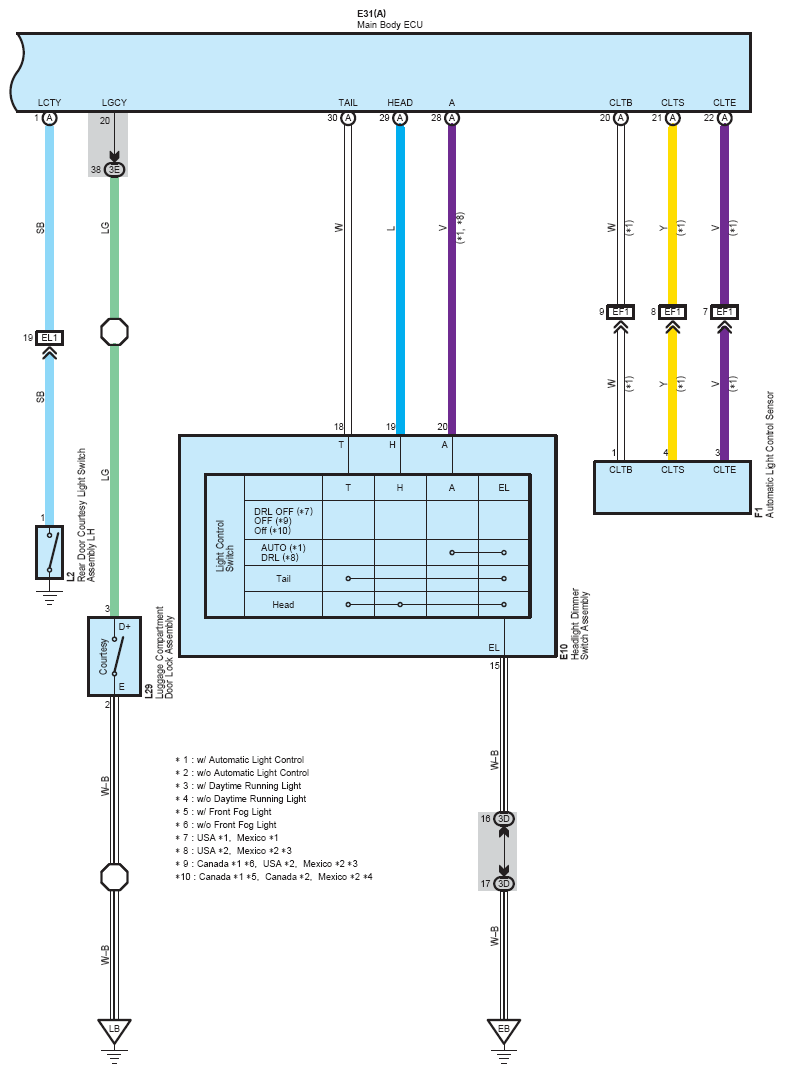

Fig 3: Automatic Light Control, Light Auto Turn Off System (3 Of 3)
G12199362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
