Inspection [08/2013 - ]: Procedure
- INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

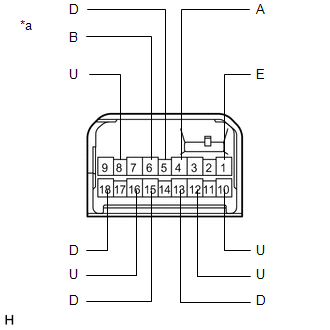

*a Component without harness connected
(Power Window Regulator Master Switch Assembly)Check the switch function.
- Turn the window lock switch off and operate the switches on the power window regulator master switch assembly.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
DRIVER SIDE SWITCHTester Connection Condition Specified Condition 4 (A) - 1 (E) Auto up Below 1 Ω 8 (U) - 1 (E) Auto up Below 1 Ω 8 (U) - 1 (E) Manual up Below 1 Ω 5 (D) - 1 (E) Manual down Below 1 Ω 4 (A) - 1 (E) Auto down Below 1 Ω 5 (D) - 1 (E) Auto down Below 1 Ω Standard Resistance
FRONT PASSENGER SIDE SWITCHTester Connection Condition Specified Condition 6 (B) - 16 (U) Up Below 1 Ω 1 (E) - 15 (D) Up Below 1 Ω 1 (E) - 16 (U) Off Below 1 Ω 1 (E) - 15 (D) Off Below 1 Ω 1 (E) - 16 (U) Down Below 1 Ω 6 (B) - 15 (D) Down Below 1 Ω Standard Resistance
REAR LH SIDE SWITCHTester Connection Condition Specified Condition 6 (B) - 12 (U) Up Below 1 Ω 1 (E) - 13 (D) Up Below 1 Ω 1 (E) - 13 (D) Off Below 1 Ω 1 (E) - 12 (U) Off Below 1 Ω 6 (B) - 13 (D) Down Below 1 Ω 1 (E) - 12 (U) Down Below 1 Ω Standard Resistance
REAR RH SIDE SWITCHTester Connection Condition Specified Condition 6 (B) - 10 (U) Up Below 1 Ω 1 (E) - 18 (D) Up Below 1 Ω 1 (E) - 18 (D) Off Below 1 Ω 1 (E) - 10 (U) Off Below 1 Ω 6 (B) - 18 (D) Down Below 1 Ω 1 (E) - 10 (U) Down Below 1 Ω If the result is not as specified, replace the power window regulator master switch assembly.
- Check that the LEDs illuminate.

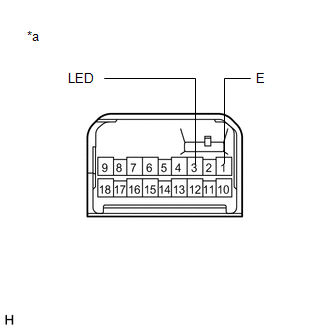

*a Component without harness connected
(Power Window Regulator Master Switch Assembly)- Apply battery voltage to the power window regulator master switch assembly and check that the LEDs illuminate.
OK
Measurement Condition Specified Condition Battery positive (+) → Terminal 3 (LED)
Battery negative (-) → Terminal 1 (E)LEDs illuminate If the result is not as specified, replace the power window regulator master switch assembly.
- Apply battery voltage to the power window regulator master switch assembly and check that the LEDs illuminate.

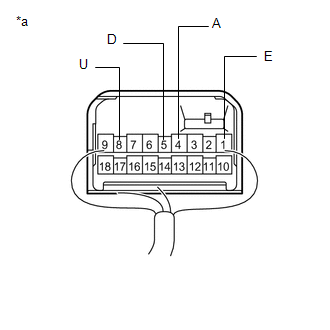

*a Component with harness connected
(Power Window Regulator Master Switch Assembly)Check the switch function.
- Reconnect the power window regulator master switch assembly.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition 8 (U) - 1 (E) Ignition switch ON, driver door power window regulator switch off 11 to 14 V 8 (U) - 1 (E) Ignition switch ON, driver door power window regulator switch up (Auto up position) Below 1 V 8 (U) - 1 (E) Ignition switch ON, driver door power window regulator switch up (Manual operation) Below 1 V 4 (A) - 1 (E) Ignition switch ON, driver door power window regulator switch off 11 to 14 V 4 (A) - 1 (E) Ignition switch ON, driver door power window regulator switch up (Auto up position) Below 1 V 4 (A) - 1 (E) Ignition switch ON, driver door power window regulator switch down (Auto down position) Below 1 V 5 (D) - 1 (E) Ignition switch ON, driver door power window regulator switch off 11 to 14 V 5 (D) - 1 (E) Ignition switch ON, driver door power window regulator switch down (Auto down position) Below 1 V 5 (D) - 1 (E) Ignition switch ON, driver door power window regulator switch down (Manual operation) Below 1 V If the result is not as specified, replace the power window regulator master switch assembly.
