System Diagrams — 2016 Toyota 4Runner SR5, RWD Service Manual ~ LEMON Manuals

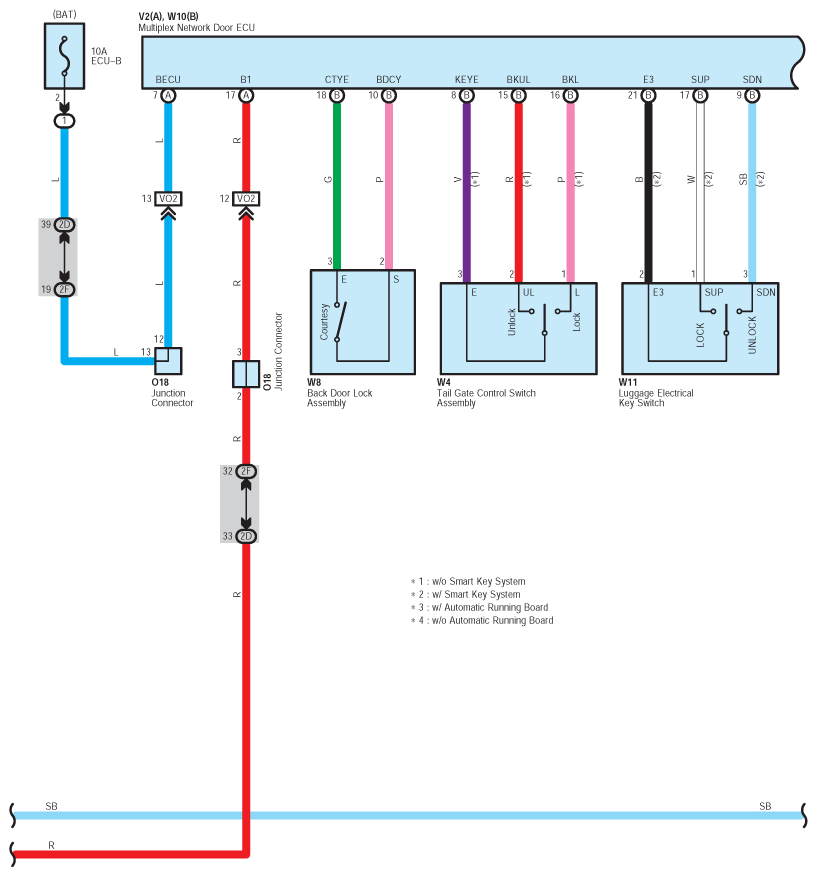

Fig 1: Power Window (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

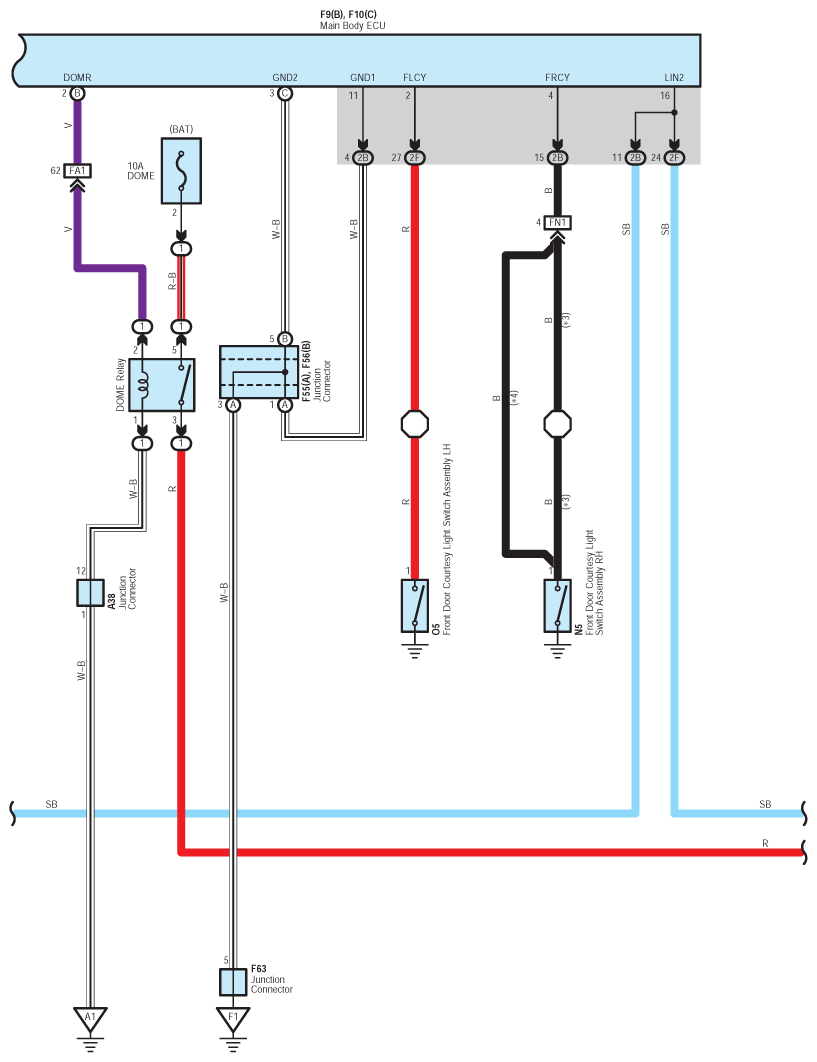

Fig 2: Power Window (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

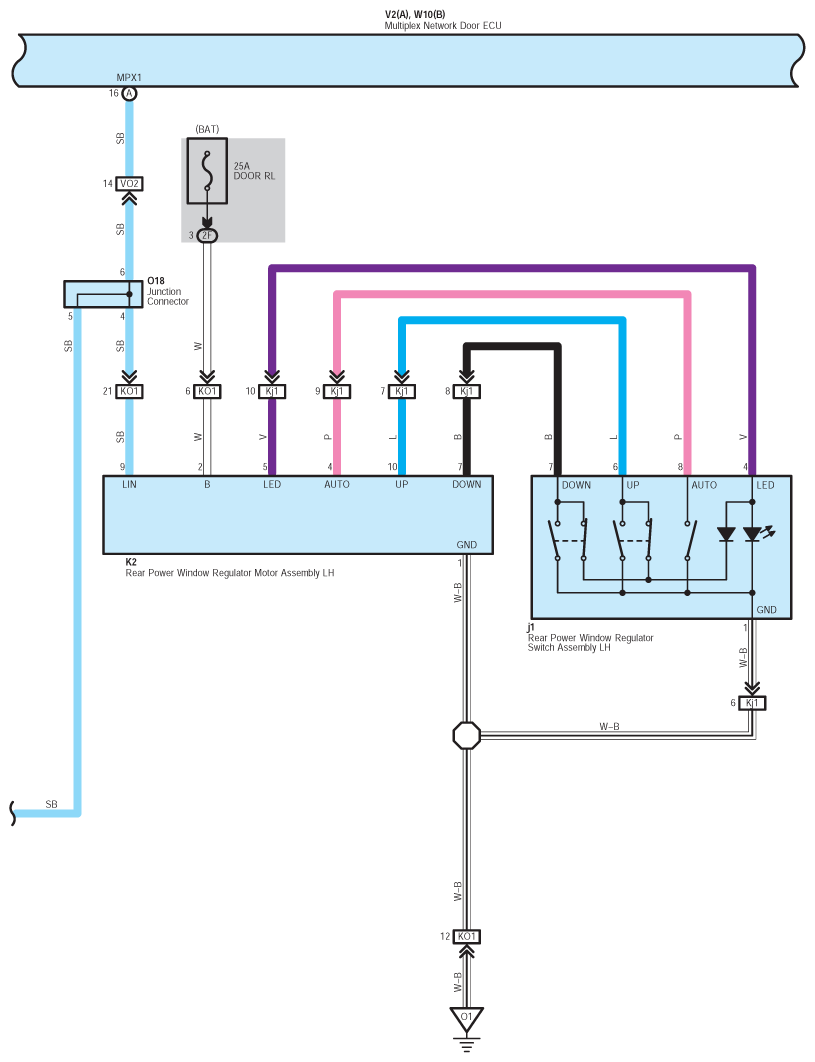

Fig 3: Power Window (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

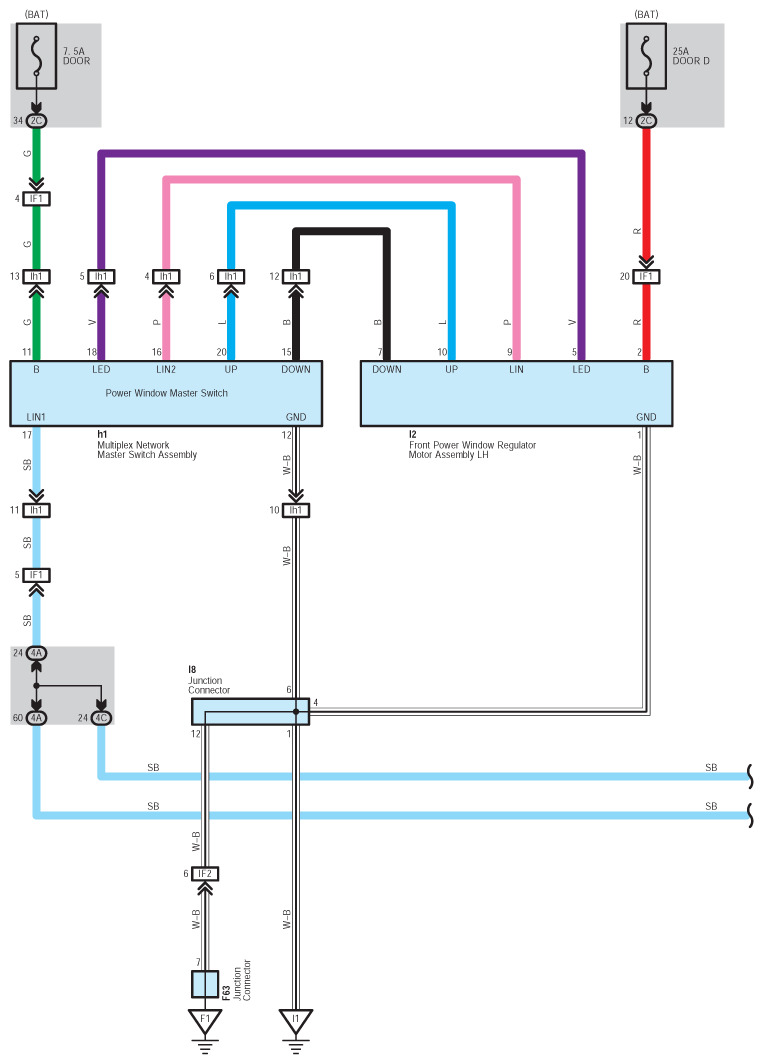

Fig 4: Power Window (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

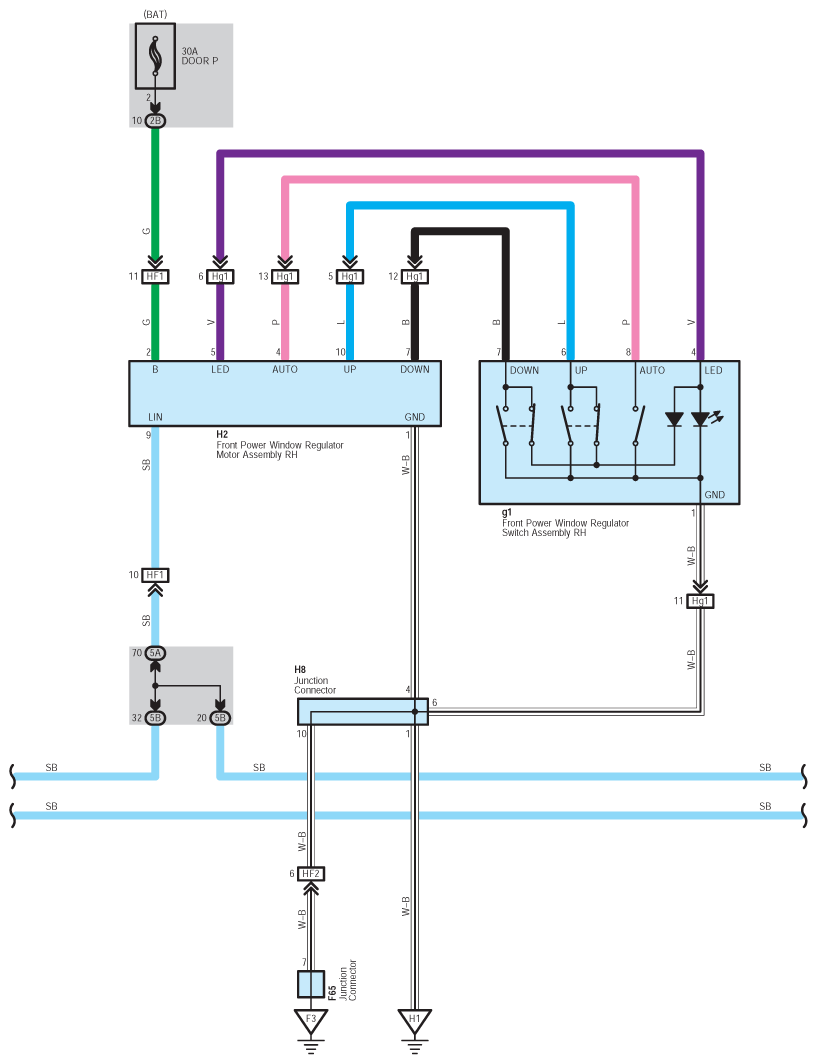

Fig 5: Power Window (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

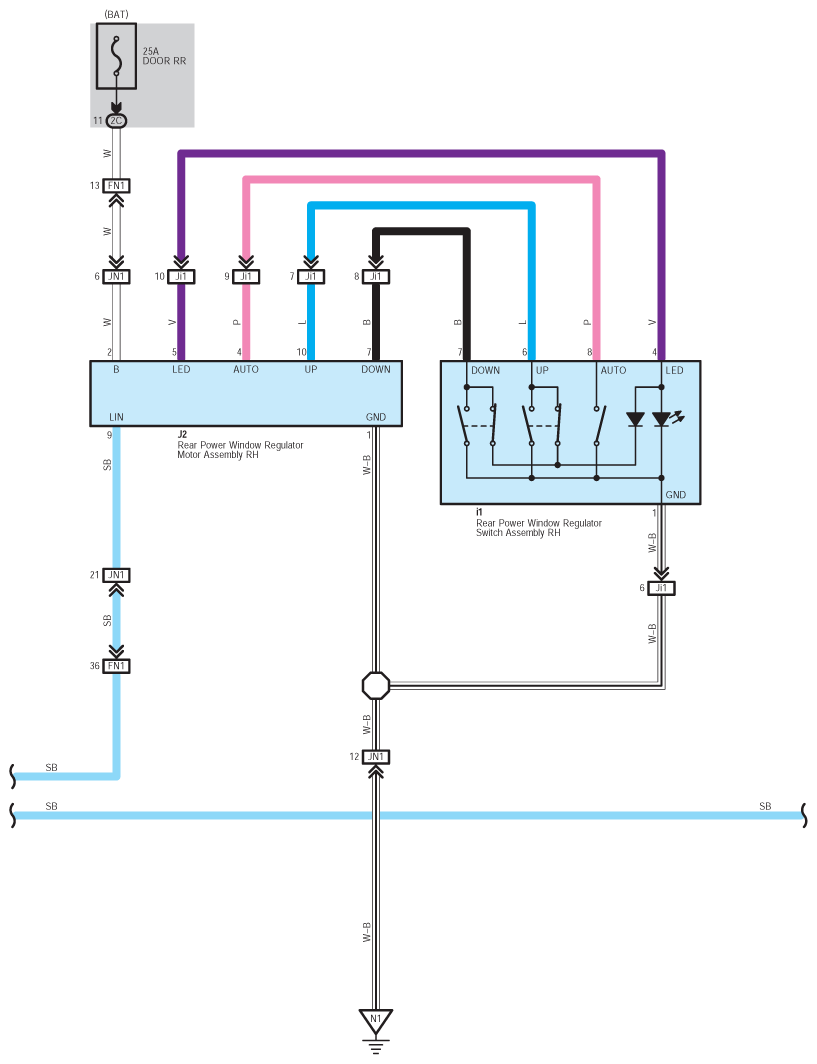

Fig 6: Power Window (6 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

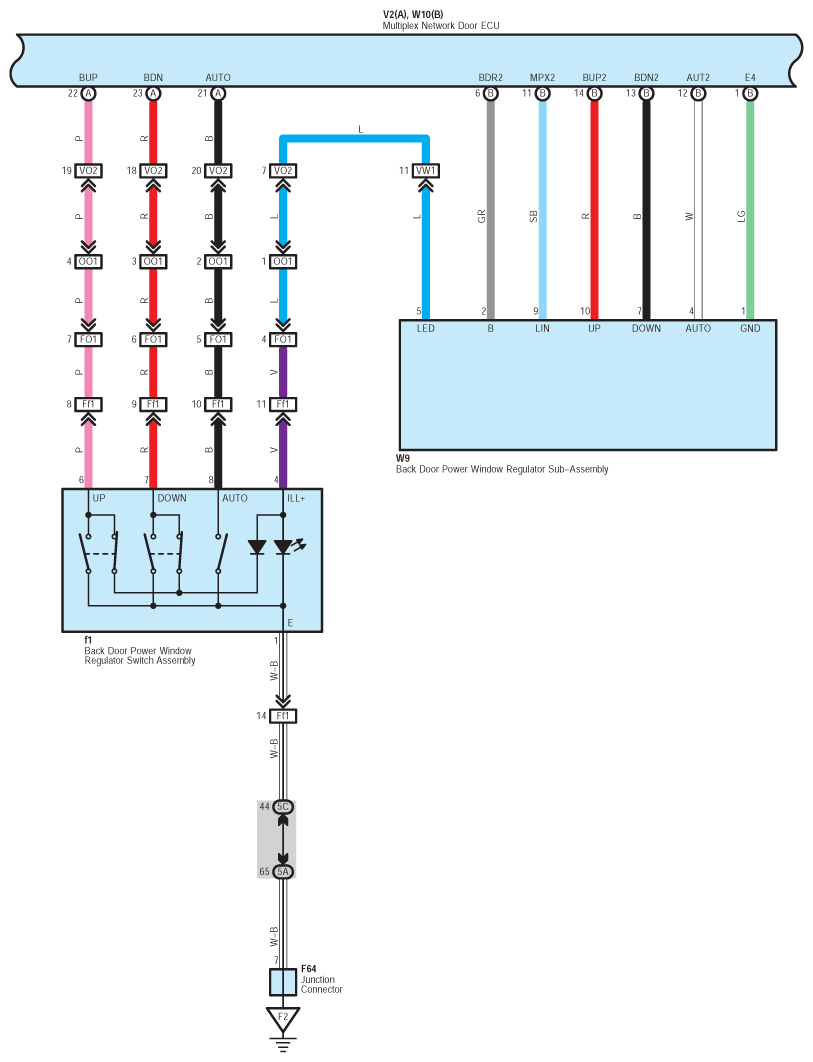

Fig 7: Power Window (7 Of 9)

Fig 8: Power Window (8 Of 9)

Fig 9: Power Window (9 Of 9)
