System Diagrams

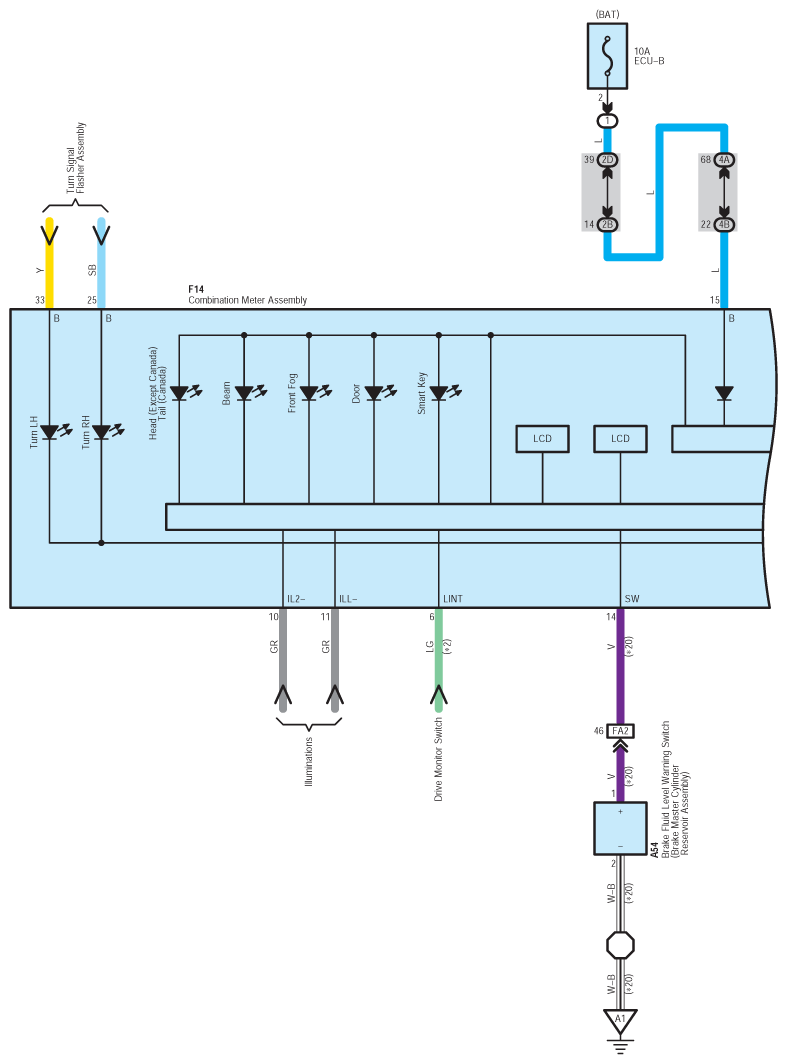

Fig 1: Combination Meter (1 Of 12)

G12198329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

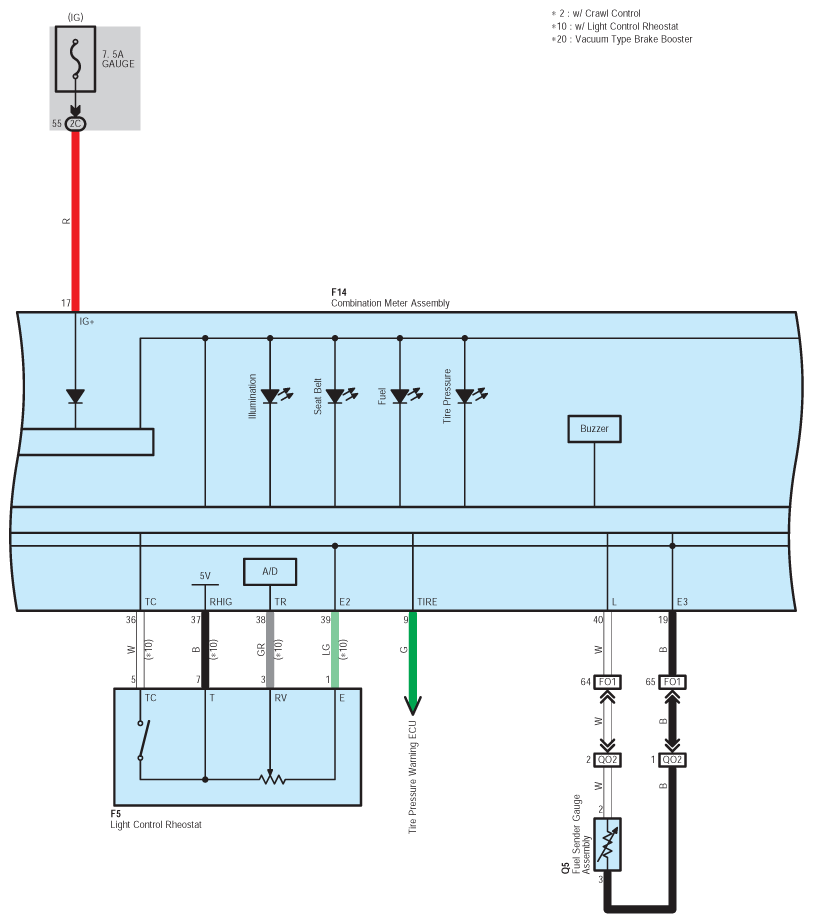

Fig 2: Combination Meter (2 Of 12)

G12198330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

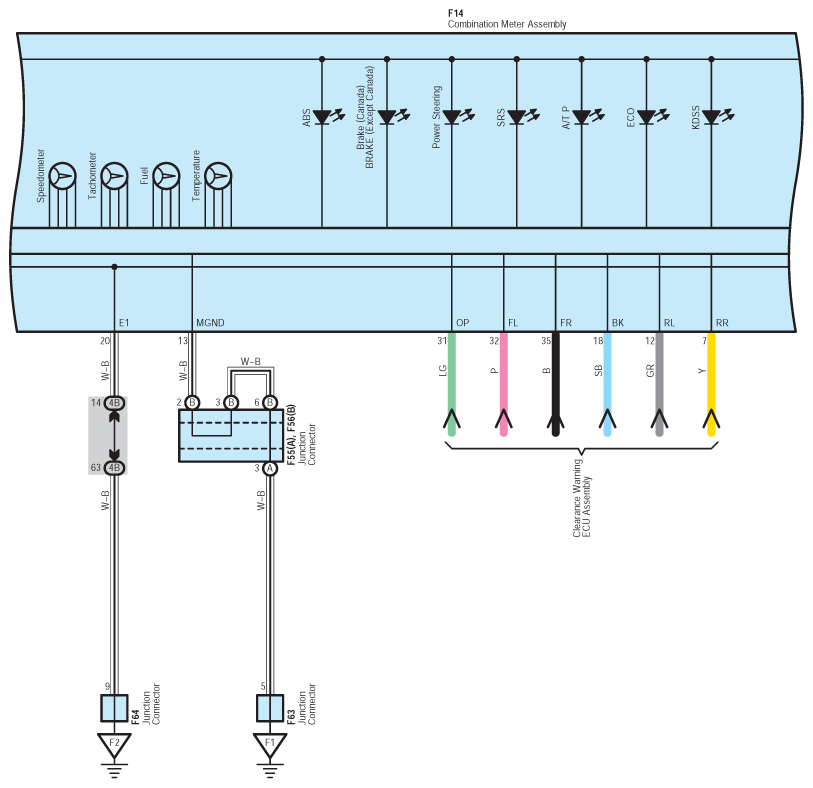

Fig 3: Combination Meter (3 Of 12)

G12198331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

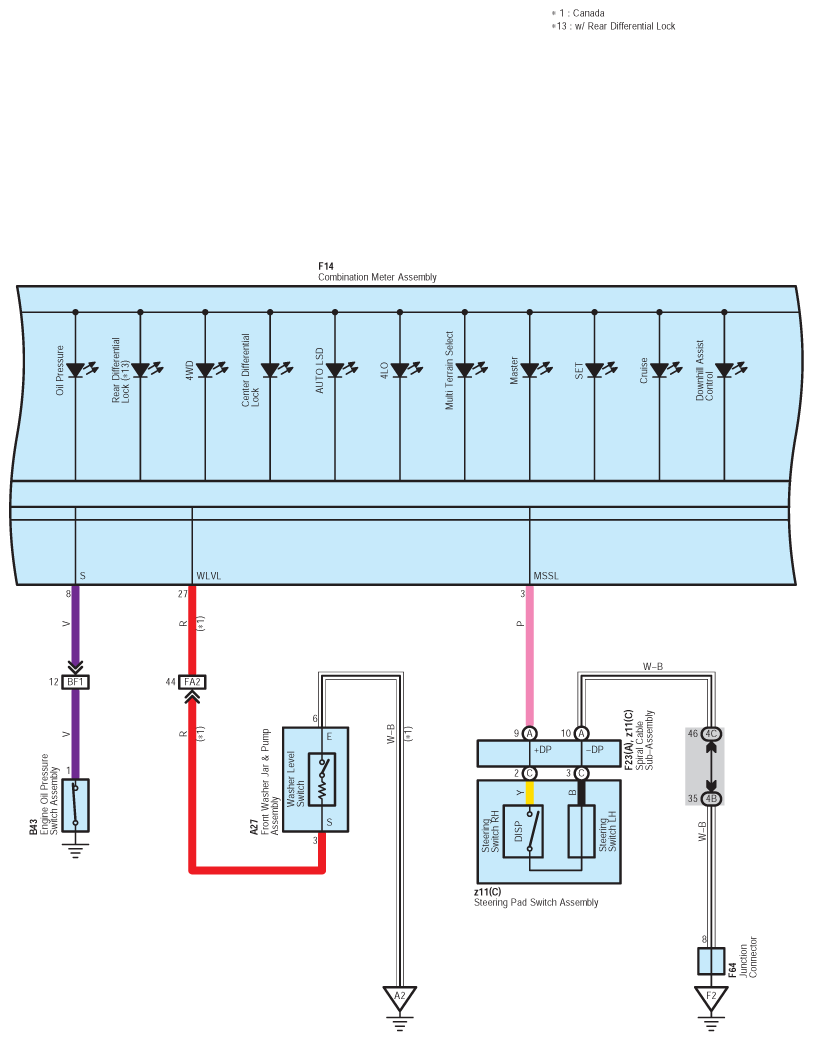

Fig 4: Combination Meter (4 Of 12)

G12198332

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

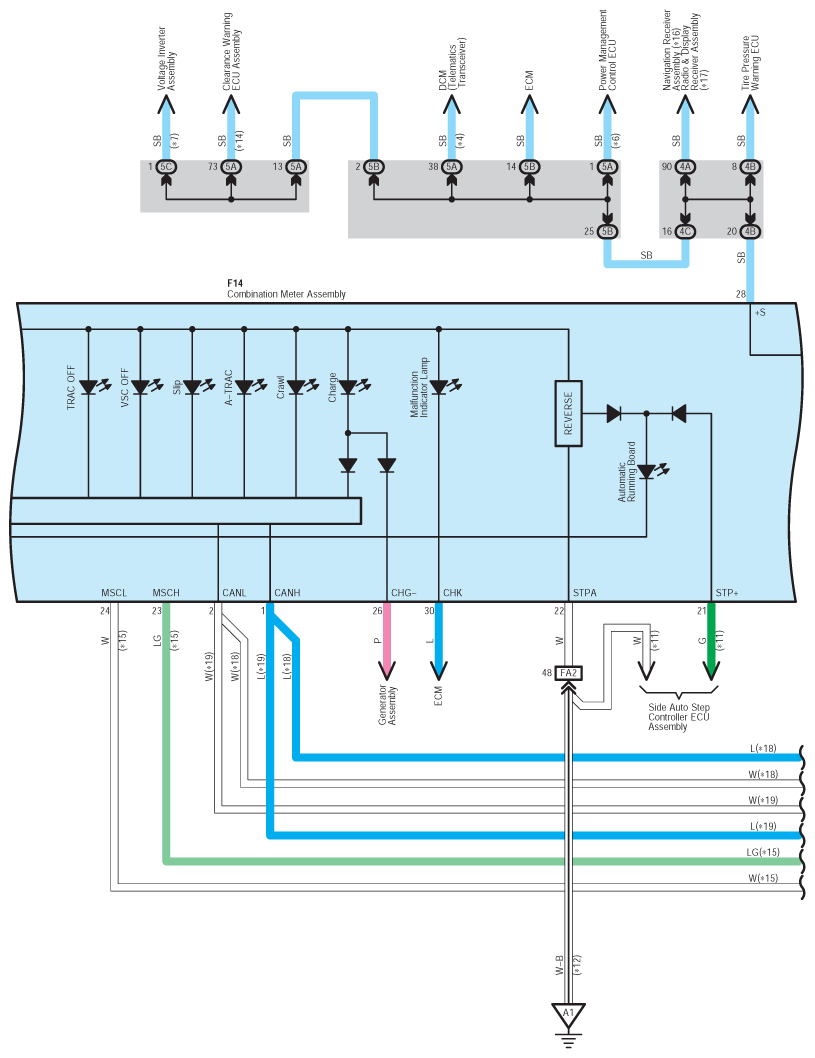

Fig 5: Combination Meter (5 Of 12)

G12198333

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

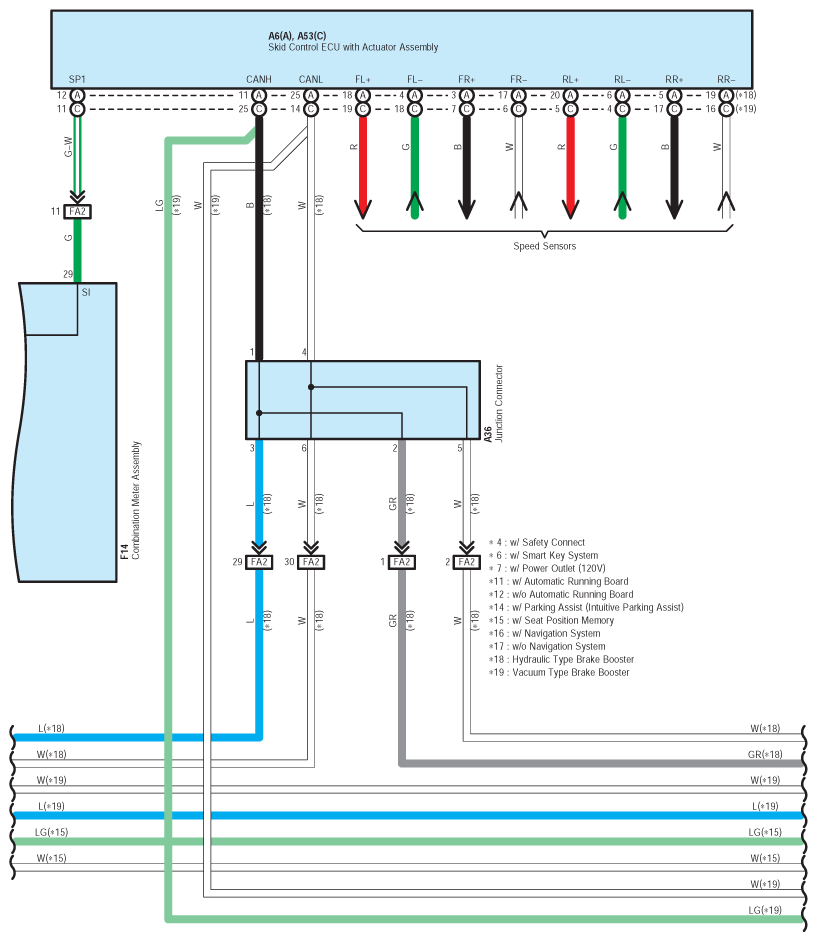

Fig 6: Combination Meter (6 Of 12)

G12198334

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

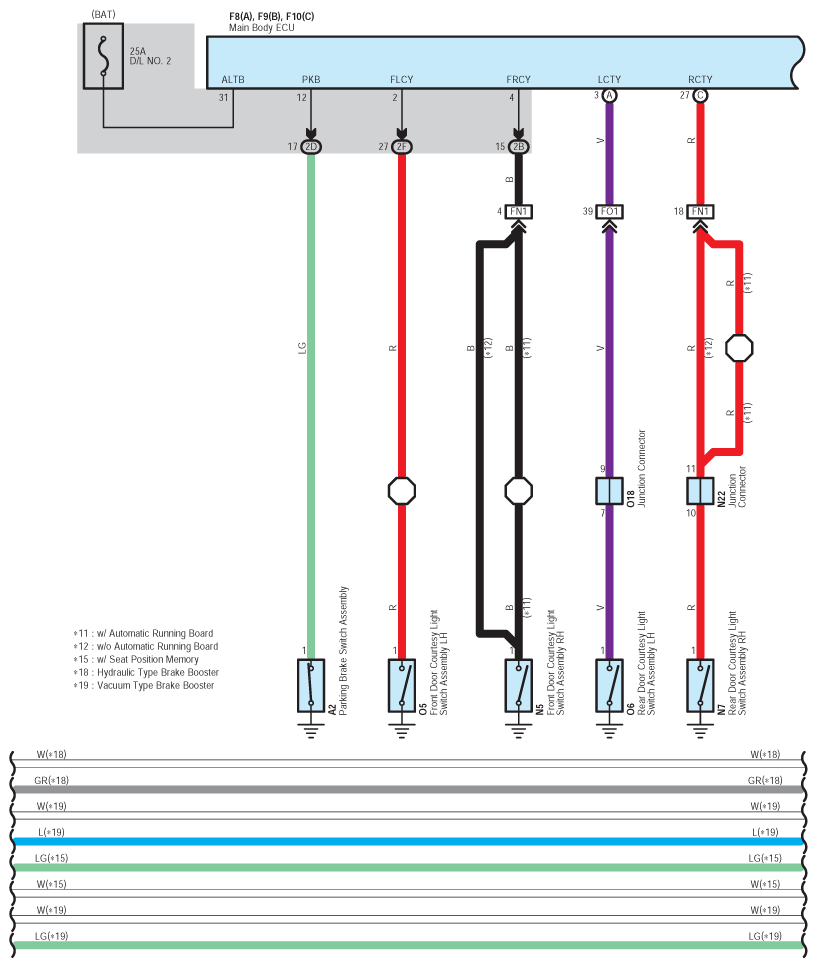

Fig 7: Combination Meter (7 Of 12)

G12198335

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

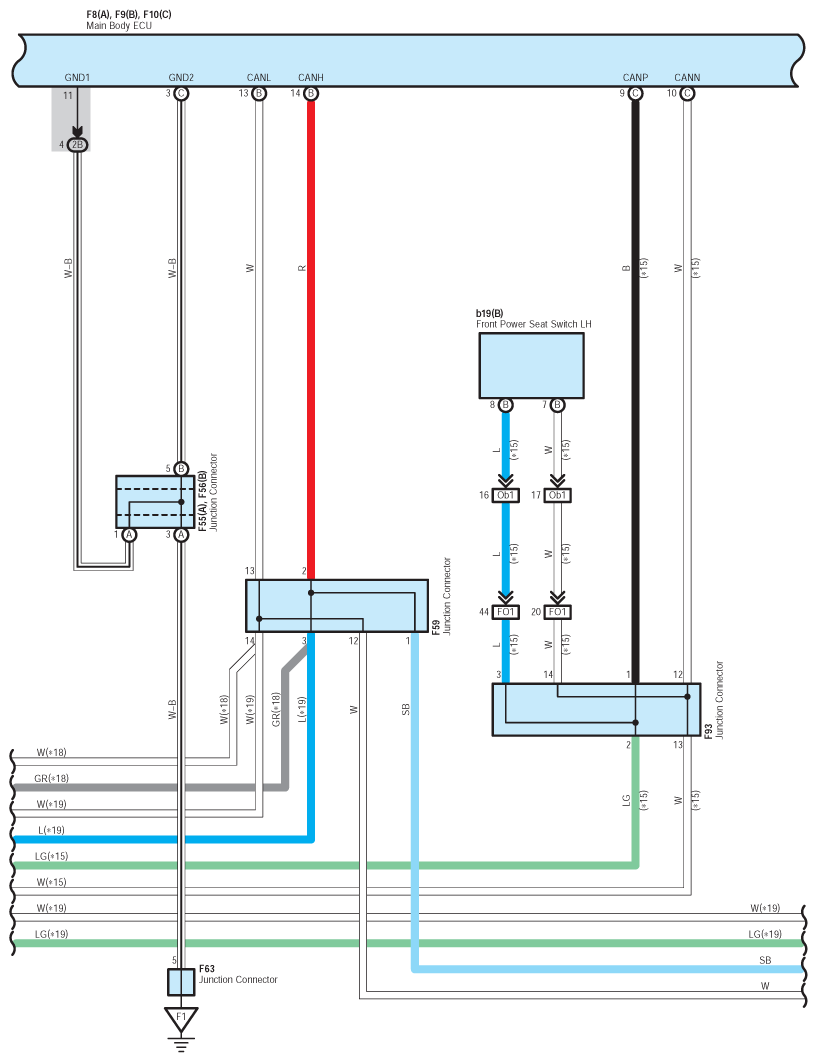

Fig 8: Combination Meter (8 Of 12)

G12198336

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

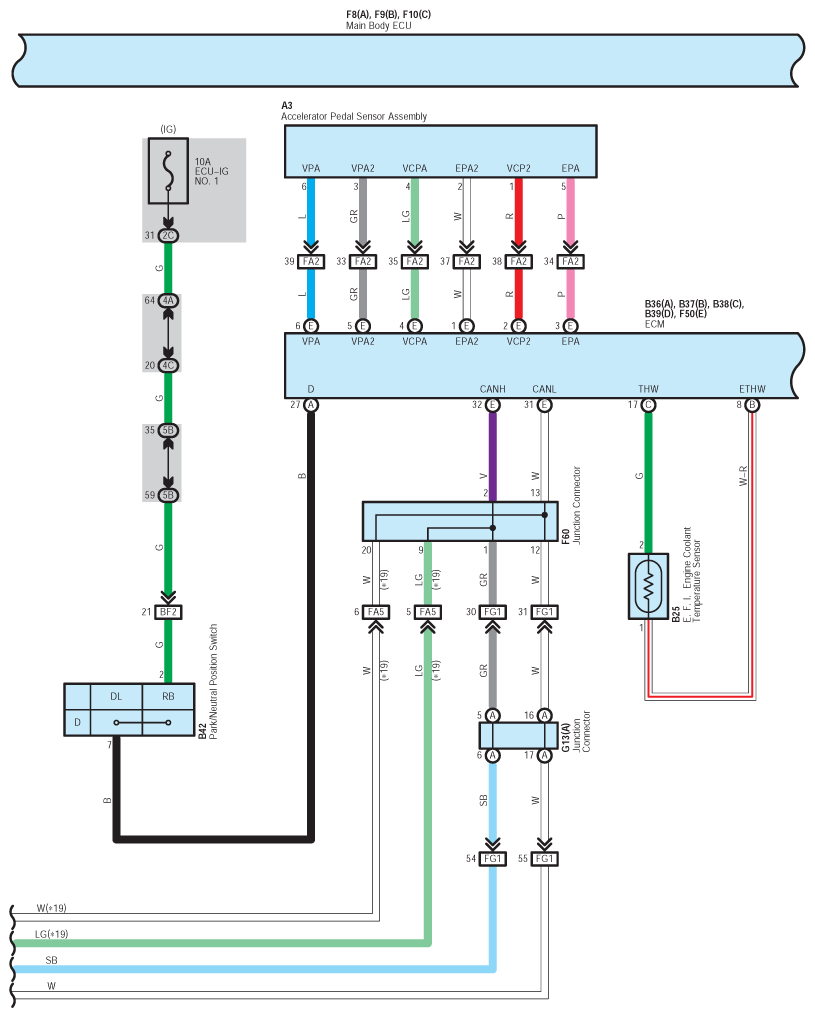

Fig 9: Combination Meter (9 Of 12)

G12198337

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

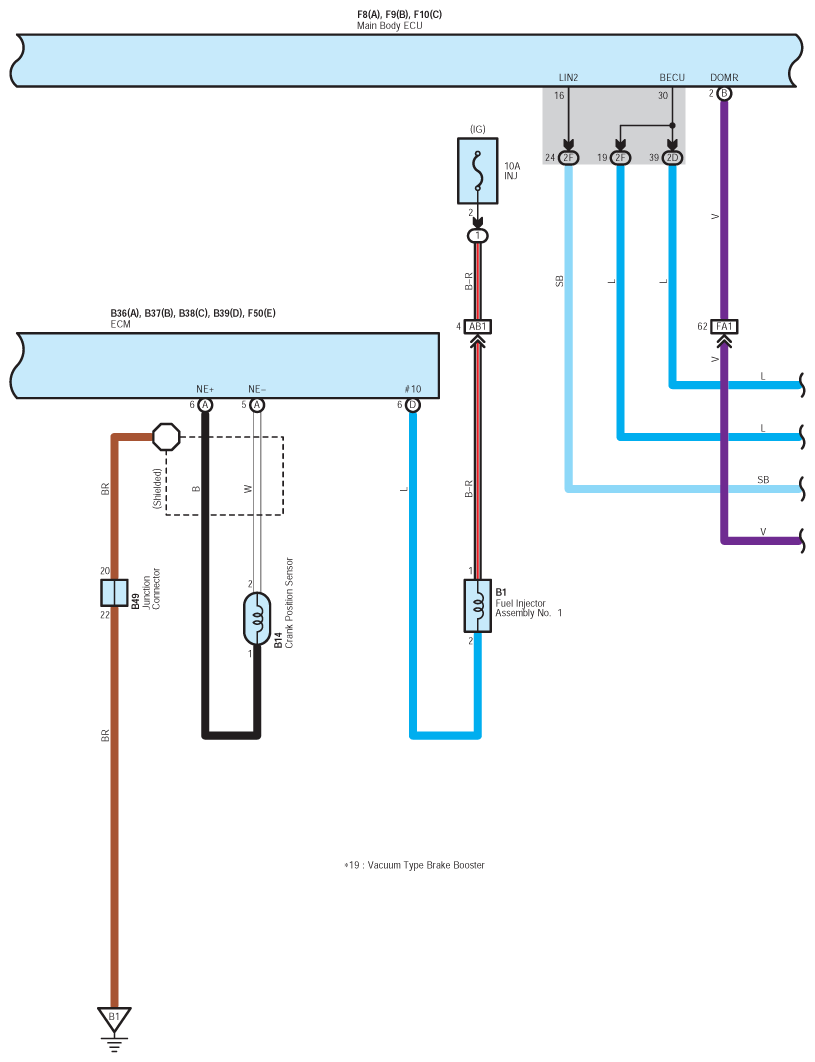

Fig 10: Combination Meter (10 Of 12)

G12198338

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

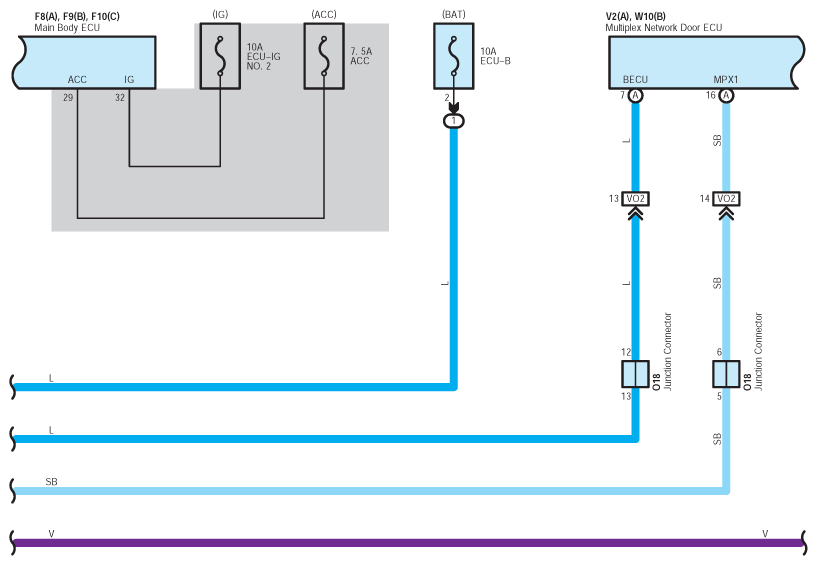

Fig 11: Combination Meter (11 Of 12)

G12198339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

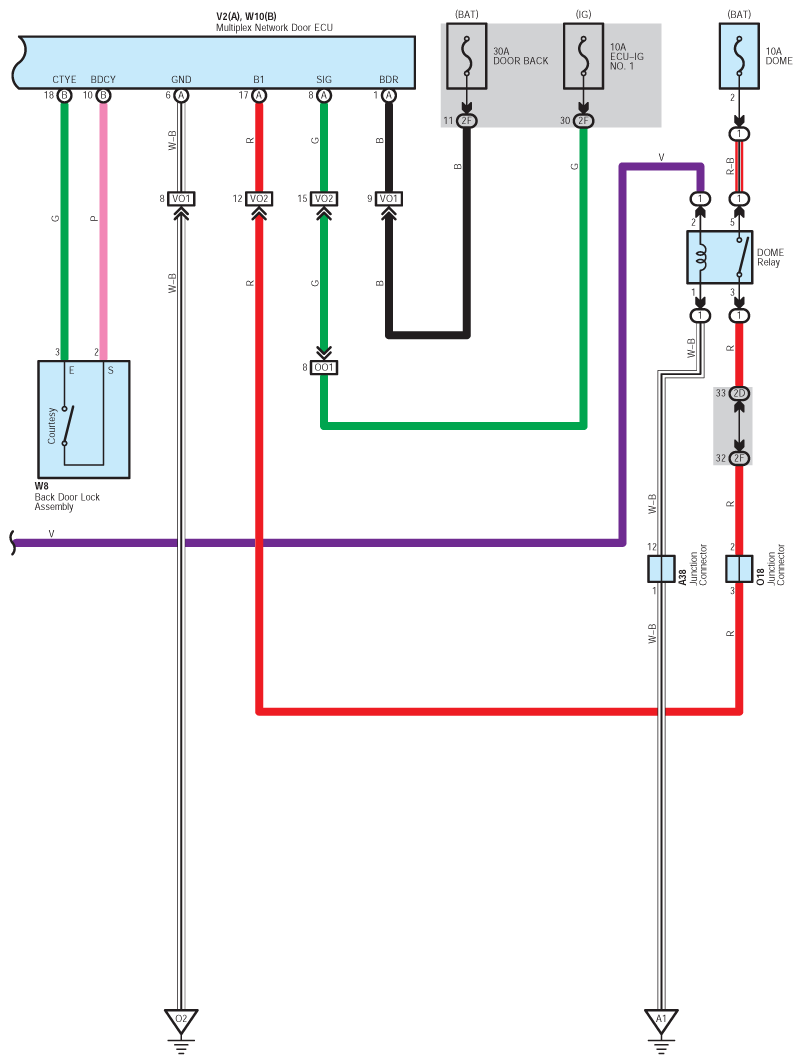

Fig 12: Combination Meter (12 Of 12)

G12198340

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
