Removal [08/2015 - ]: Procedure

  1. REMOVE DRIVE MONITOR SWITCH

    See step  1

  2. REMOVE MAP LIGHT ASSEMBLY

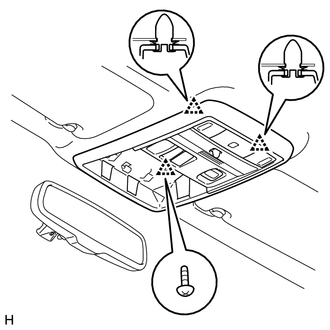

    1. Remove the screws.
      GTY229649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 clips and remove the map light assembly.
  3. REMOVE TRACTION CONTROL SWITCH (A-TRAC SWITCH)

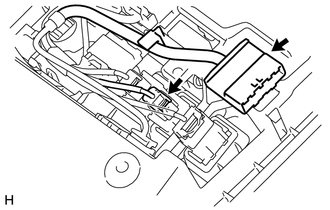

    1. Disconnect the 2 connectors.
      GTY712079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

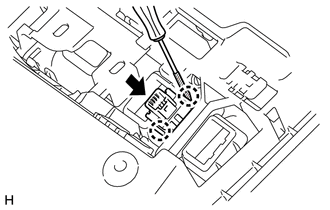

    2. Using a screwdriver, detach the 2 claws and remove the traction control switch (A-TRAC switch) from the map light assembly.
      GTY232036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.
