DTC C1A4B: Stop Light Relay Circuit [08/2014 - ]: Wiring Diagram

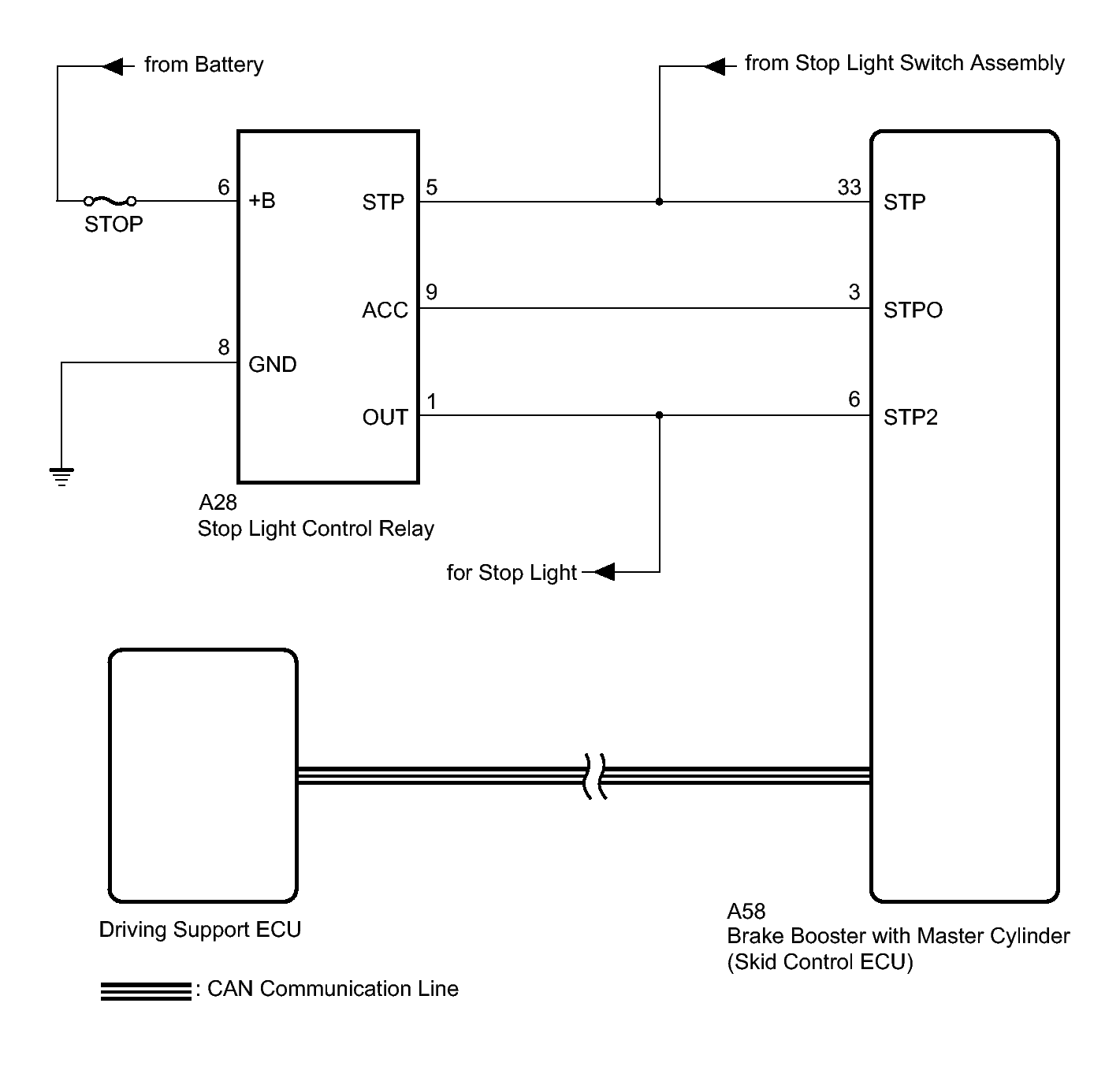

Fig 1: Stop Light Control Relay Circuit-Wiring Diagram

GTY431829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
