AC Line Insulation Malfunction [08/2014 - ]: Description

WARNING: This page is about a different variant/trim than selected.

The CCID (Charging Circuit Interrupting Device) built into the electric vehicle charger cable assembly detects insulation malfunctions in the AC line between the CCID and electric vehicle charger assembly.

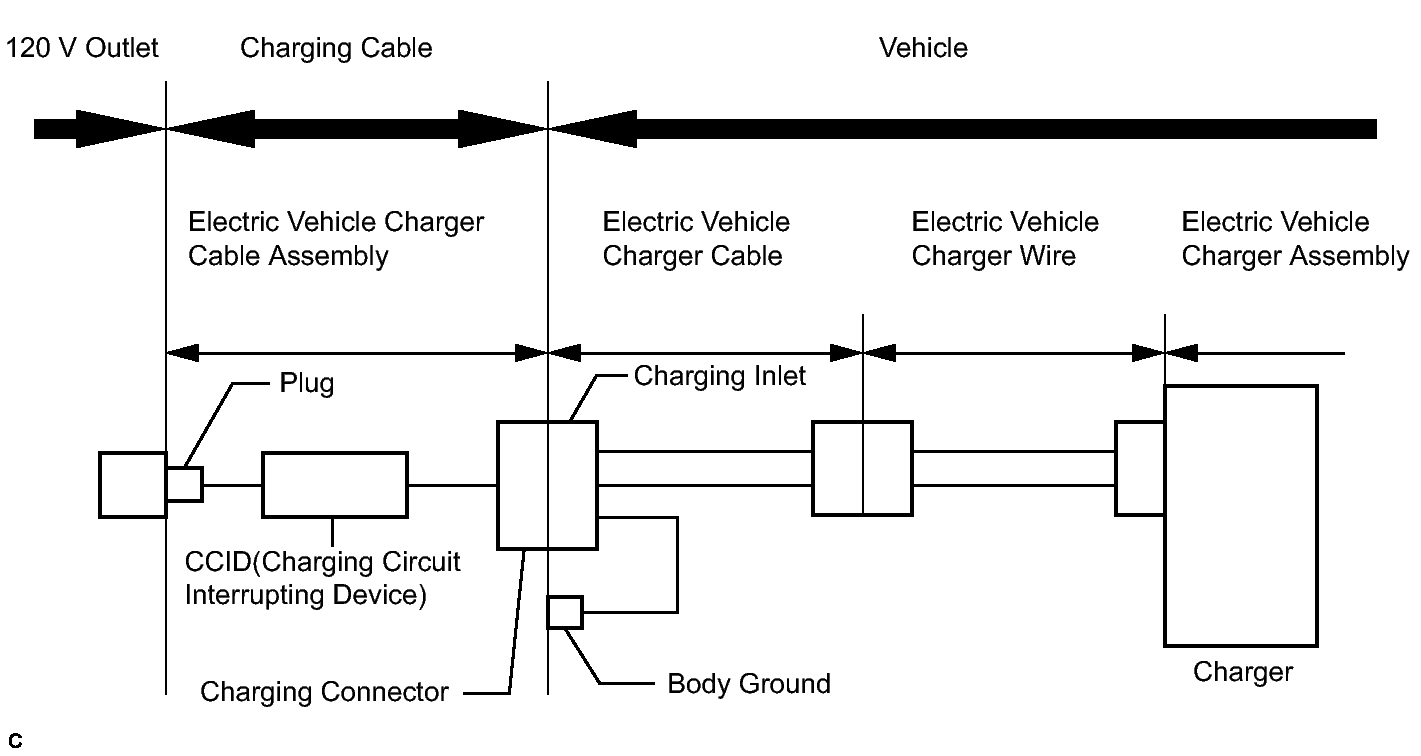

Fig 1: AC Line Insulation Diagram
GTY424195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
