Navigation ECU Communication Stop Mode [08/2014 - ]: Wiring Diagram

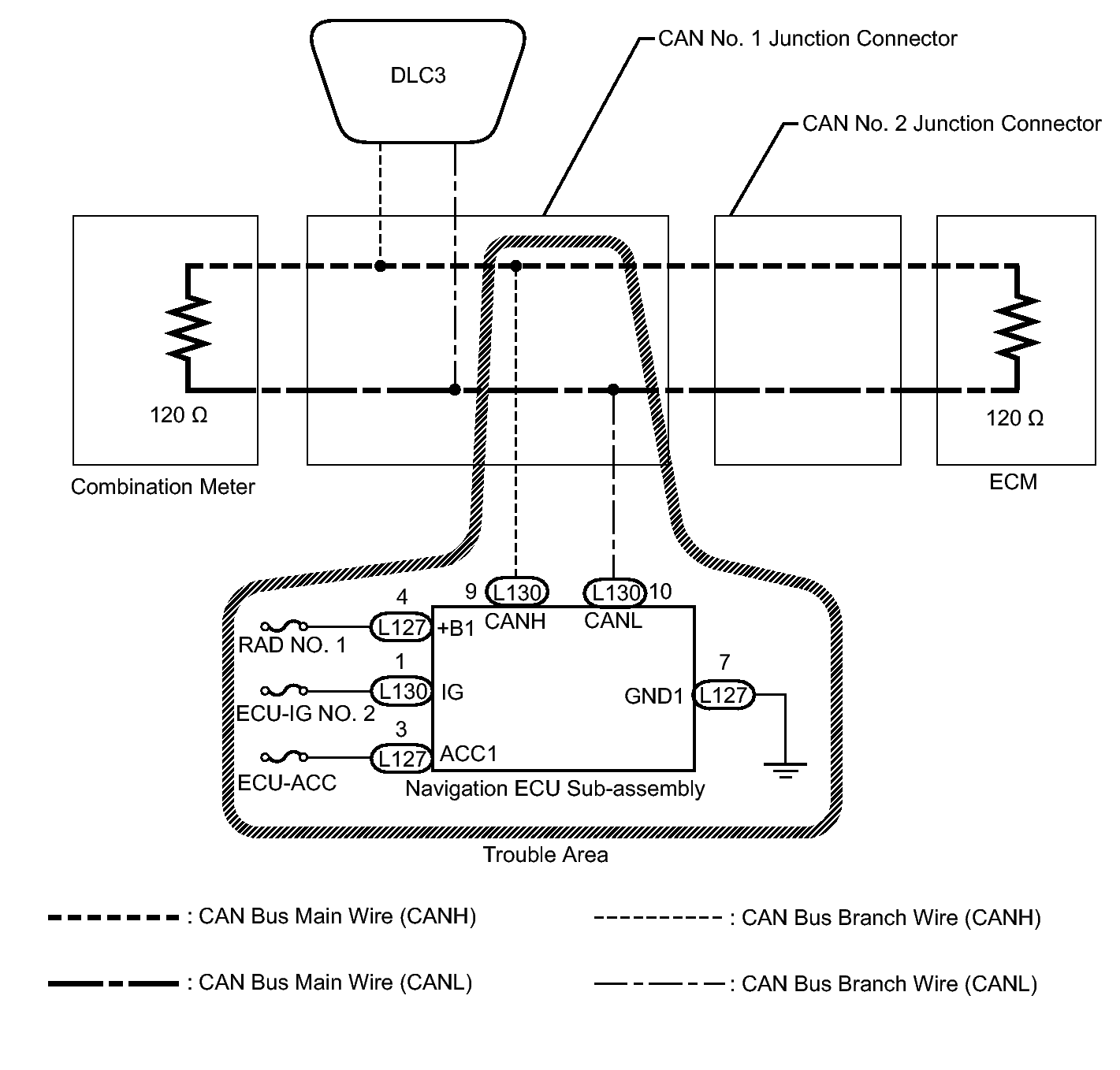

Fig 1: View Of Navigation ECU Wiring Diagram

GTY338274

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
