Audio Receiver Assembly Communication Stop Mode [08/2014 - ]: Wiring Diagram

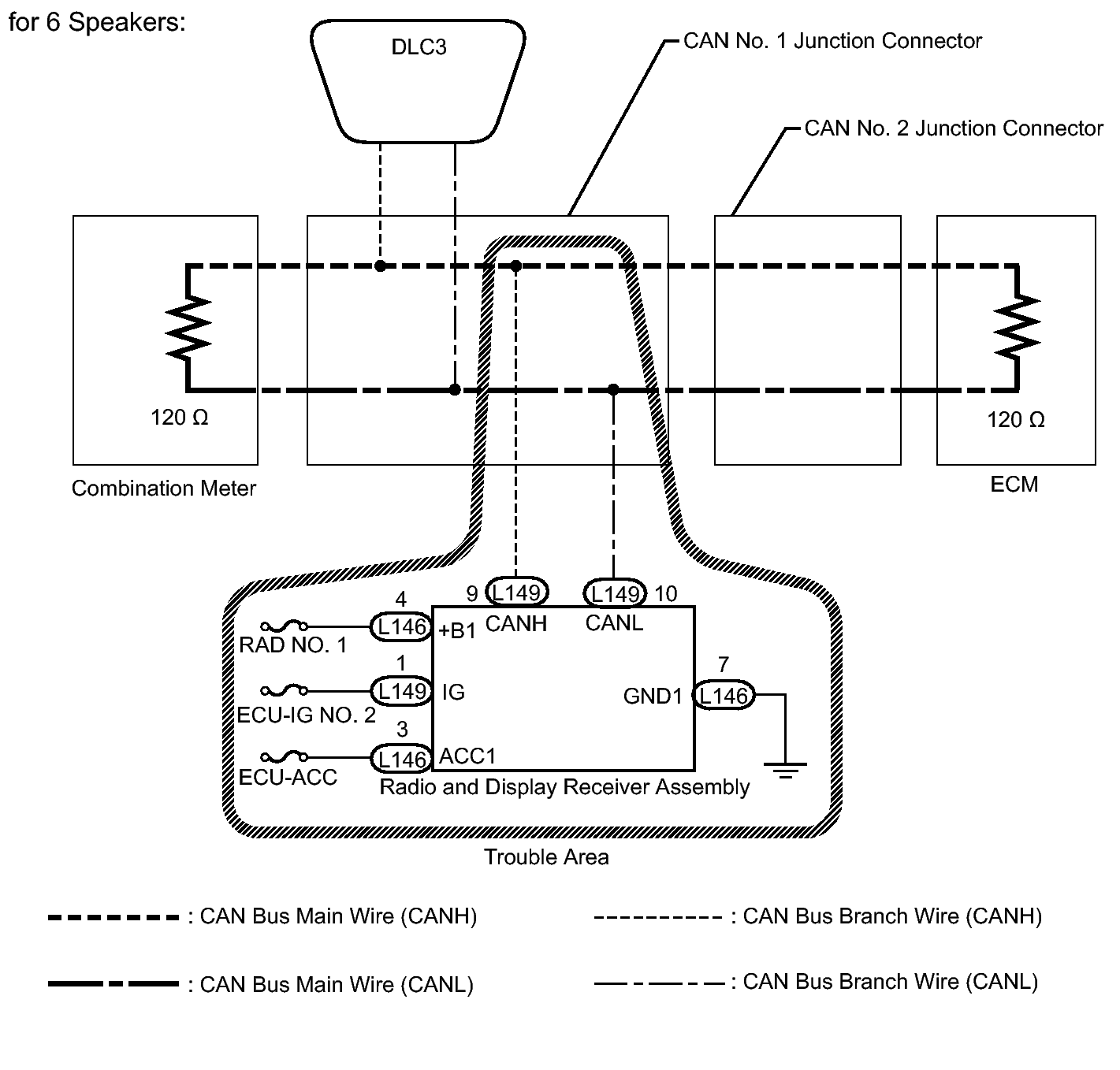

Fig 1: Radio & Display Receiver Assembly Wiring Diagram (1 Of 2)
GTY473604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Radio & Display Receiver Assembly Wiring Diagram (2 Of 2)
GTY325056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
