DTC C1A4B: Stop Light Relay Circuit [08/2014 - ]: Wiring Diagram

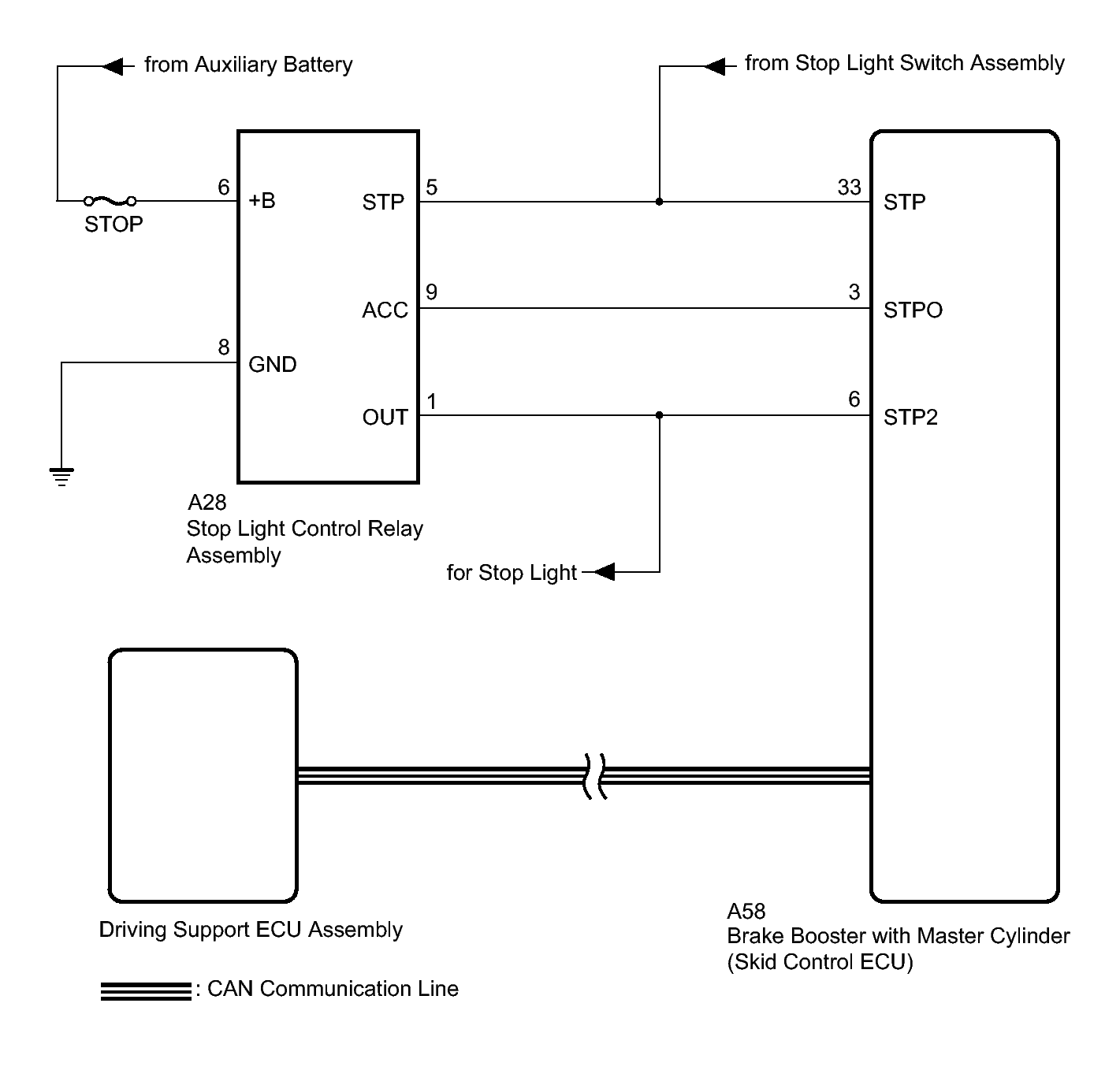

Fig 1: Identifying Stop Light Switch Assembly Wiring Diagram

GTY481506

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
