Components [12/2013 - 11/2016]: Illustration

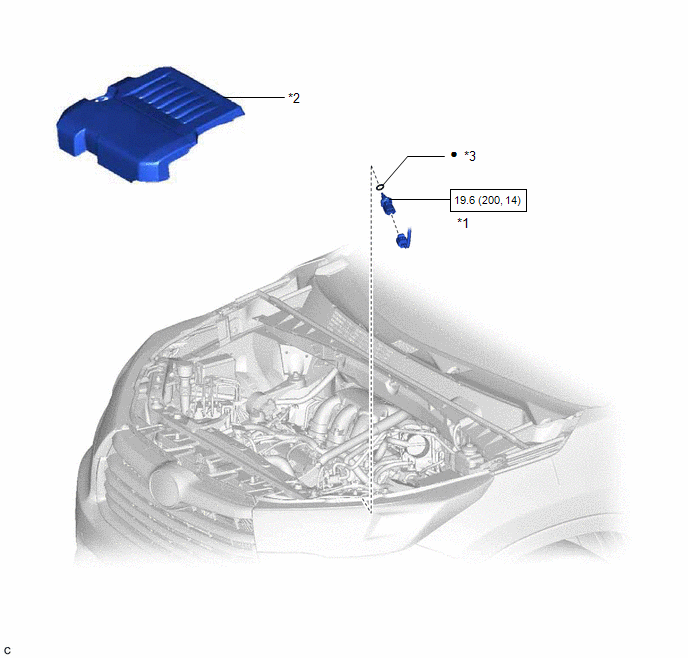

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
GTY425887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE COOLANT TEMPERATURE SENSOR *2 V-BANK COVER SUB-ASSEMBLY
*3 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
