Components [12/2012 - ]: Illustration

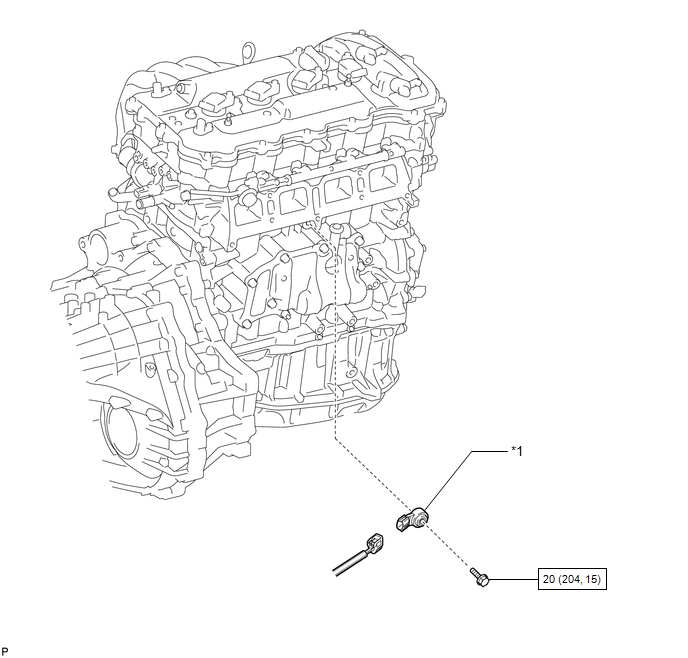

Fig 1: Knock Sensor Replacement Components With Torque Specifications [12/2012 - ]
GTY379152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 KNOCK SENSOR - -
Specified torque: N*m (kgf*cm, ft.*lbf) - -
