Section 148 (Automatic Beam Level Control System (Diagnostic Codes & Circuit Tests) (Plug-In))
>>
Automatic Headlight Beam Level Control System
>>
Circuit Tests
>>
LVL Terminal Circuit [10/2013 - ]
>>
Wiring Diagram
LVL Terminal Circuit [10/2013 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

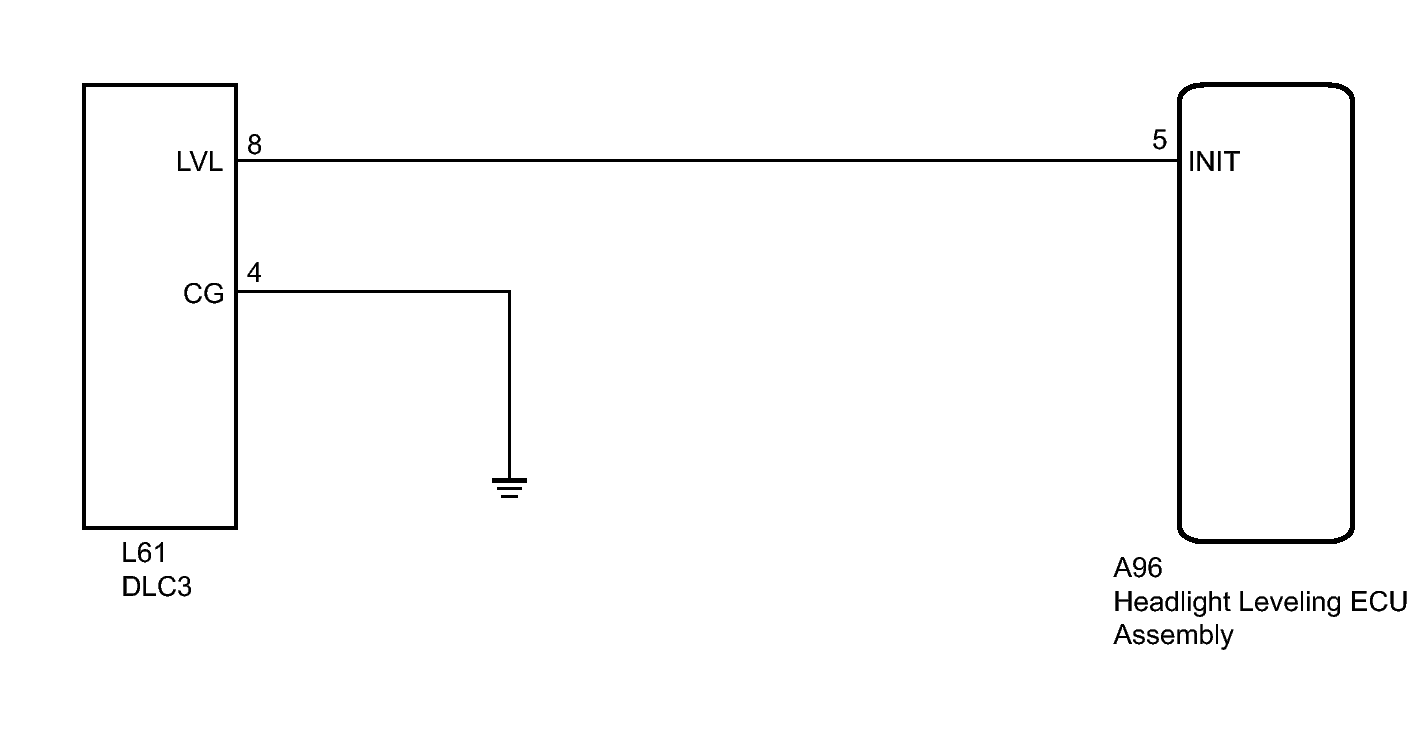

Fig 1: LVL Terminal Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
