ECM Power Source Circuit [10/2013 - ]: Wiring Diagram

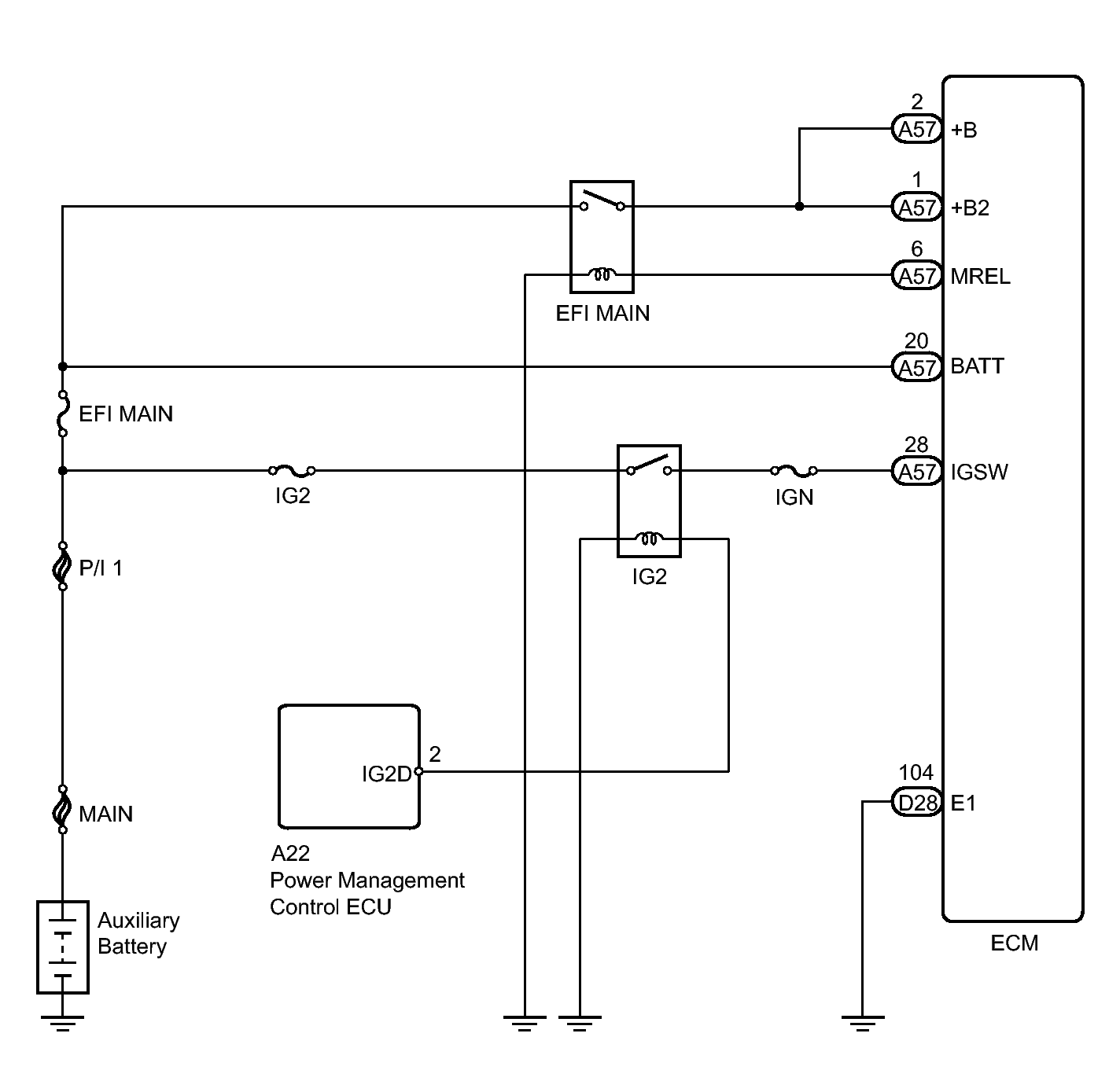

Fig 1: ECM Power Source Circuit Wiring Diagram

GTY335591

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
