Interior Light (H/B): Notes

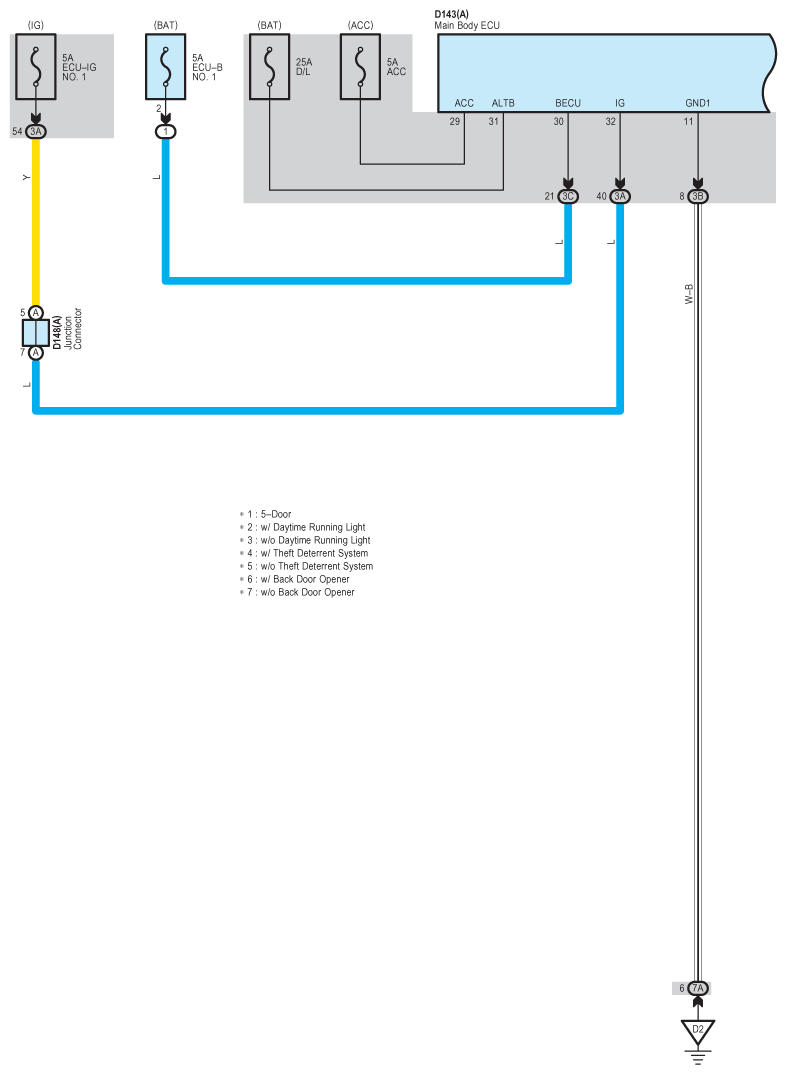

Fig 1: Interior Light System Wiring Diagram (H/B) (1 Of 3)
G09112571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

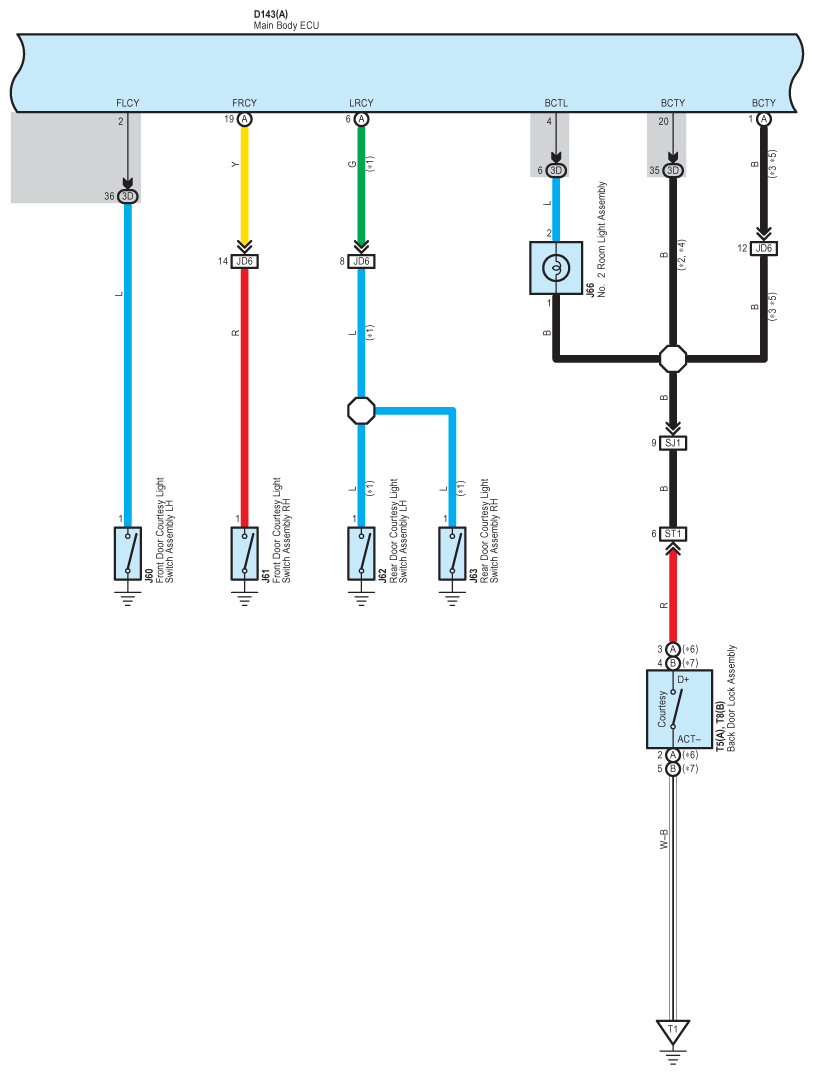

Fig 2: Interior Light System Wiring Diagram (H/B) (2 Of 3)
G09112572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

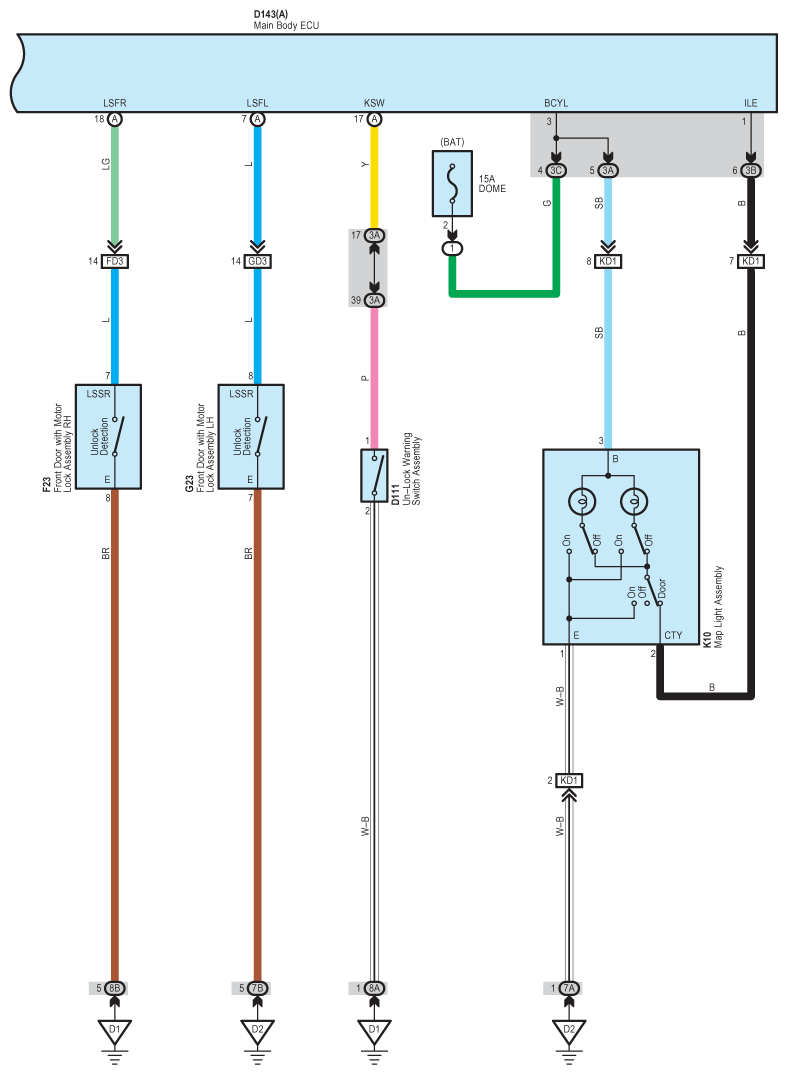

Fig 3: Interior Light System Wiring Diagram (H/B) (3 Of 3)
G09112573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
