Charging (H/B): Notes

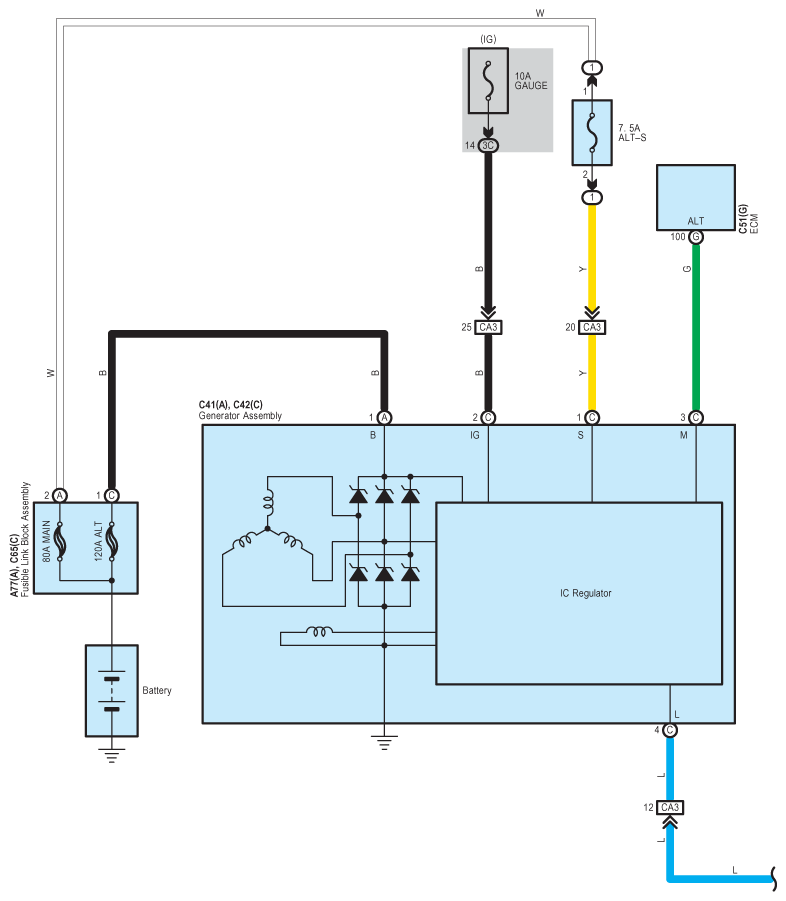

Fig 1: Charging System Wiring Diagram (H/B) (1 Of 2)
G09112545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

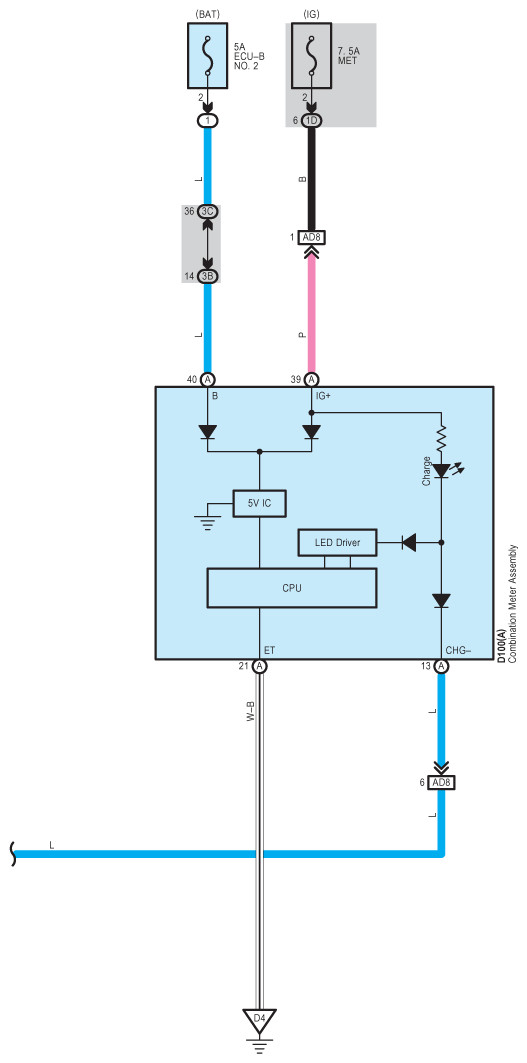

Fig 2: Charging System Wiring Diagram (H/B) (2 Of 2)
G09112546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
