Air Conditioning (S/D): Notes

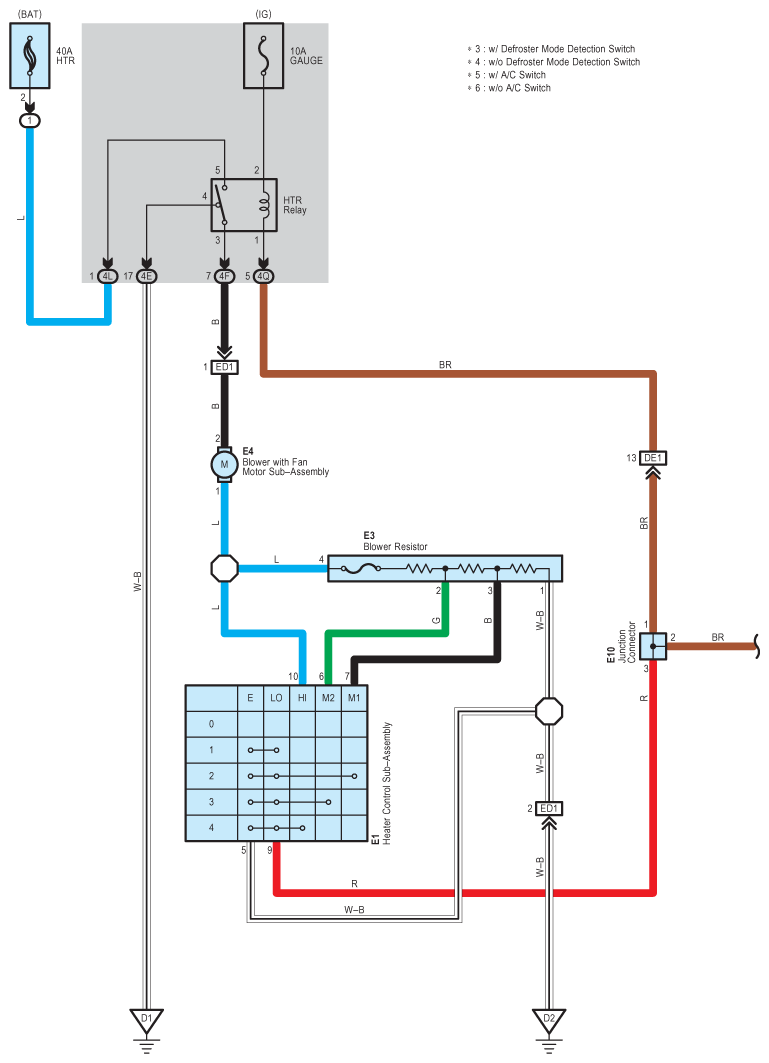

Fig 1: Air Conditioning (S/D) System Wiring Diagram (1 Of 3)
G09112772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

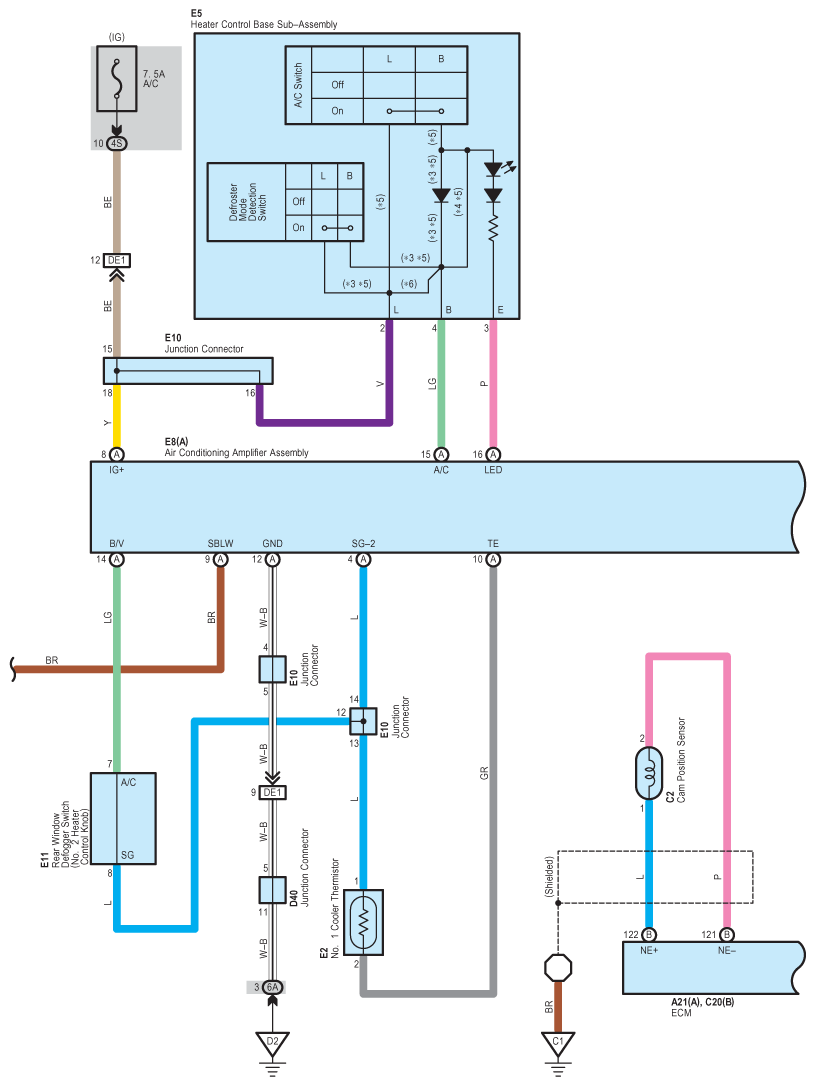

Fig 2: Air Conditioning (S/D) System Wiring Diagram (2 Of 3)
G09112773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

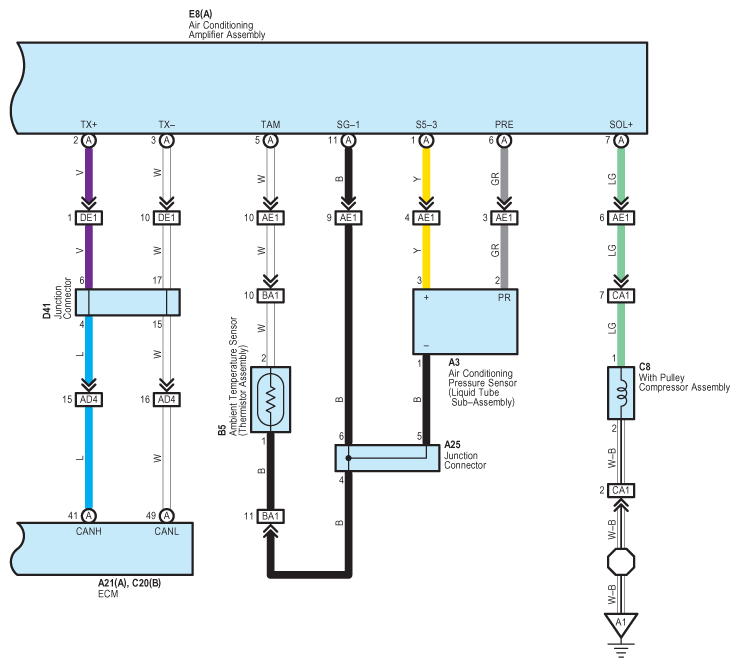

Fig 3: Air Conditioning (S/D) System Wiring Diagram (3 Of 3)
G09112774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
