IGNITION COIL AND SPARK PLUG (for Hatchback): Components: Illustration

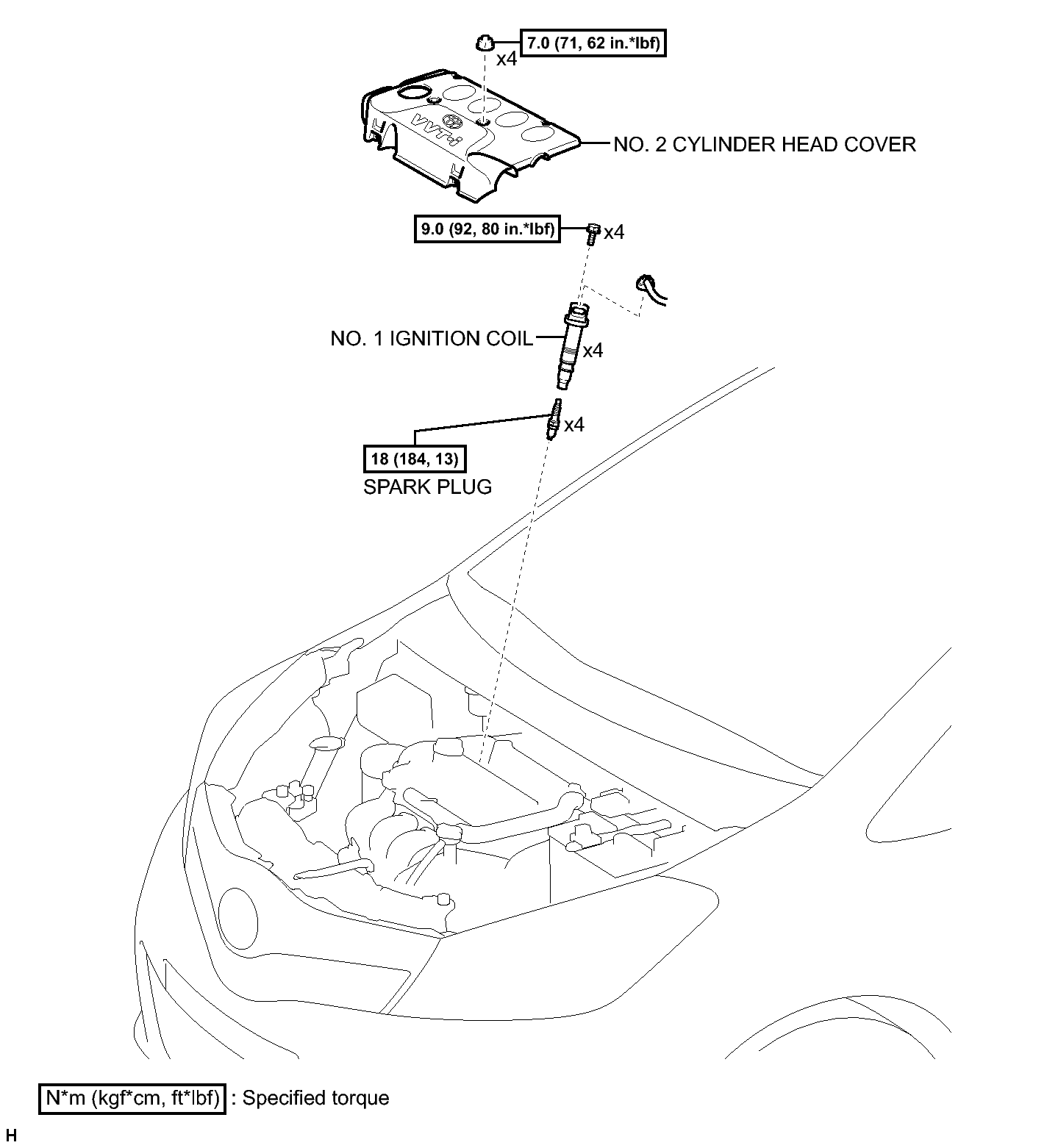

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (For Hatchback)
GTY338599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
