ECM (for Sedan): Removal: Removal

NOTE:

Replace the ECM with a new one if necessary.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE FRONT WIPER ARM HEAD CAP . Refer to REMOVAL - Step 2
REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH . Refer to REMOVAL - Step 3
REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH . Refer to REMOVAL - Step 4
REMOVE COWL SIDE VENTILATOR SUB-ASSEMBLY LH . Refer to REMOVAL - Step 5
REMOVE COWL SIDE VENTILATOR SUB-ASSEMBLY RH . Refer to REMOVAL - Step 6
REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY . Refer to REMOVAL - Step 7
REMOVE FRONT WIPER MOTOR AND LINK . Refer to REMOVAL - Step 8
REMOVE FRONT AIR SHUTTER SEAL
1. Disengage the 3 claws and remove the front air shutter seal.

  Fig 1: Identifying Front Air Shutter Seal Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COWL TOP PANEL OUTER
1. Disengage the claw and disconnect the wire harness.

  Fig 2: Identifying Wire Harness Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and remove the cowl top panel outer center bracket.

  Fig 3: Identifying Cowl Top Panel Outer Center Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 8 bolts and remove the cowl top panel outer.

  Fig 4: Identifying Cowl Top Panel Outer Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ECM

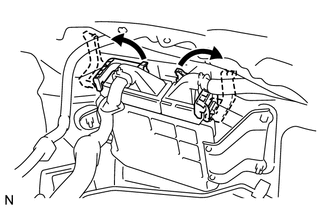

Fig 5: Identifying Lock Knobs And Harness Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 lock knobs and harness clamp.
2. Disconnect the 2 ECM connectors.

  Fig 6: Identifying ECM Connectors Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and 2 nuts and remove the ECM.
REMOVE ECM BRACKET

Fig 7: Locating ECM Bracket Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws and the ECM bracket.
REMOVE ECM BRACKET NO. 2

Fig 8: Identifying ECM Bracket No. 2 With Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws and ECM bracket No. 2.
