CRANKSHAFT POSITION SENSOR (for Hatchback): Components: Illustration

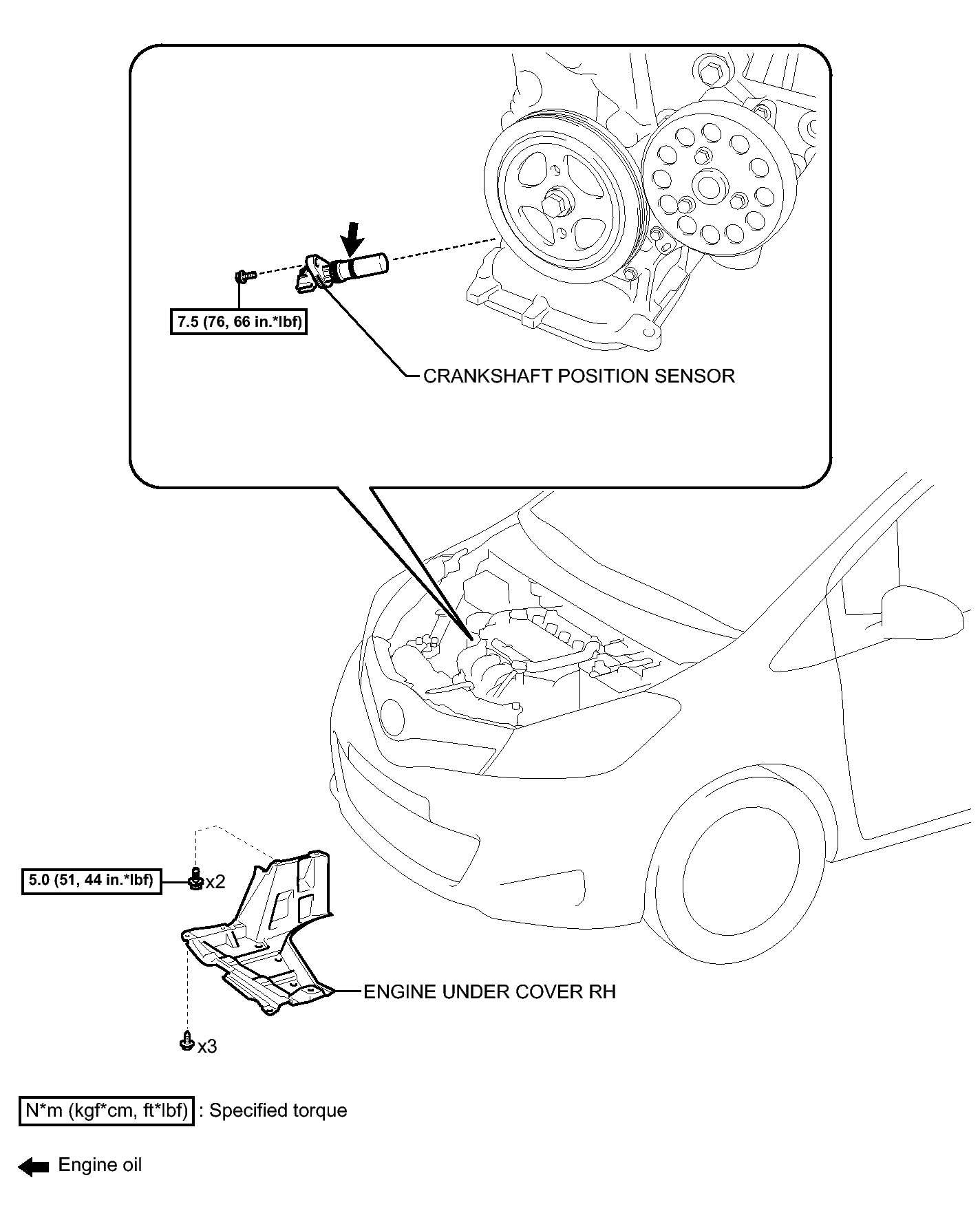

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications (For Hatchback)
GTY342949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
