AIR FUEL RATIO SENSOR (for Hatchback): Components: Illustration

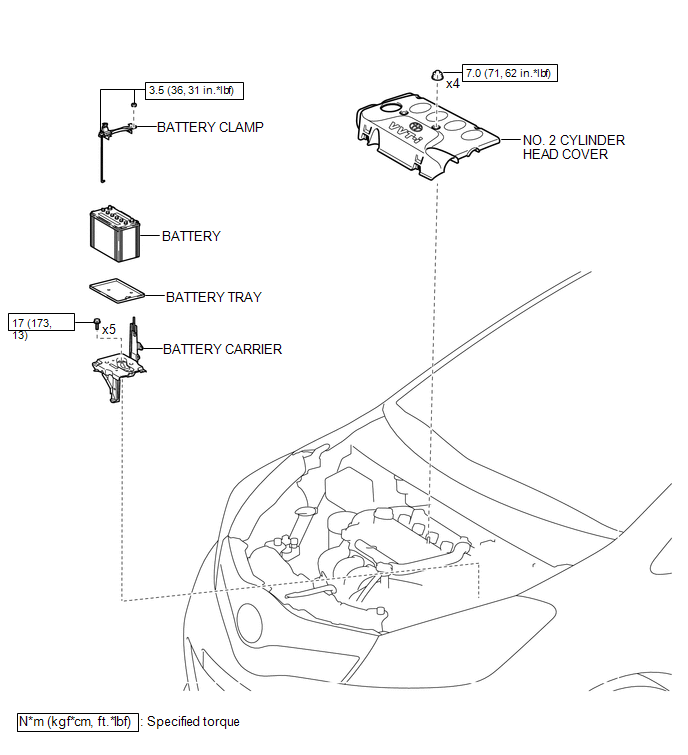

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications (For Hatchback) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

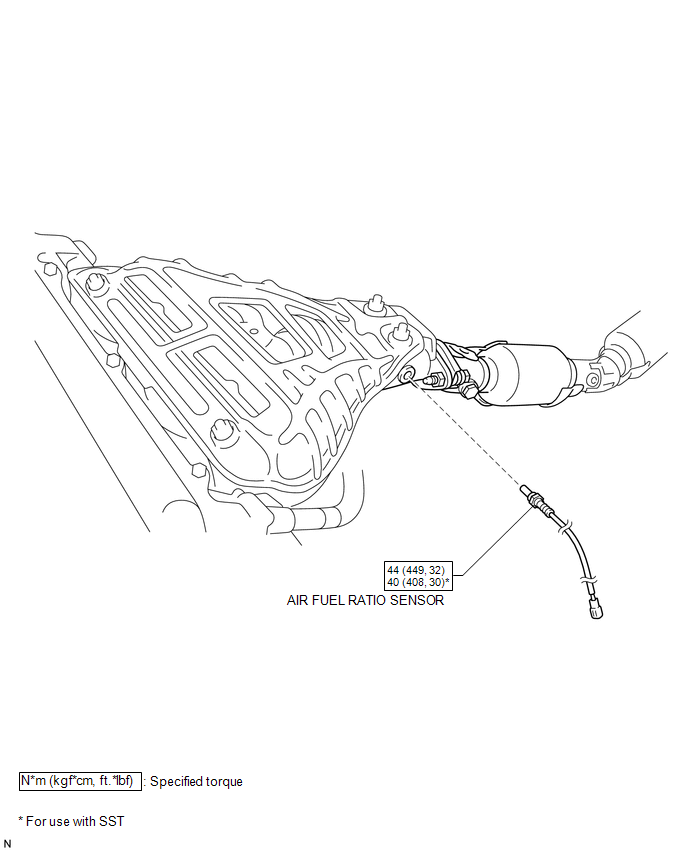

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications (For Hatchback) (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications (For Hatchback) (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
