Starting (S/D): Notes

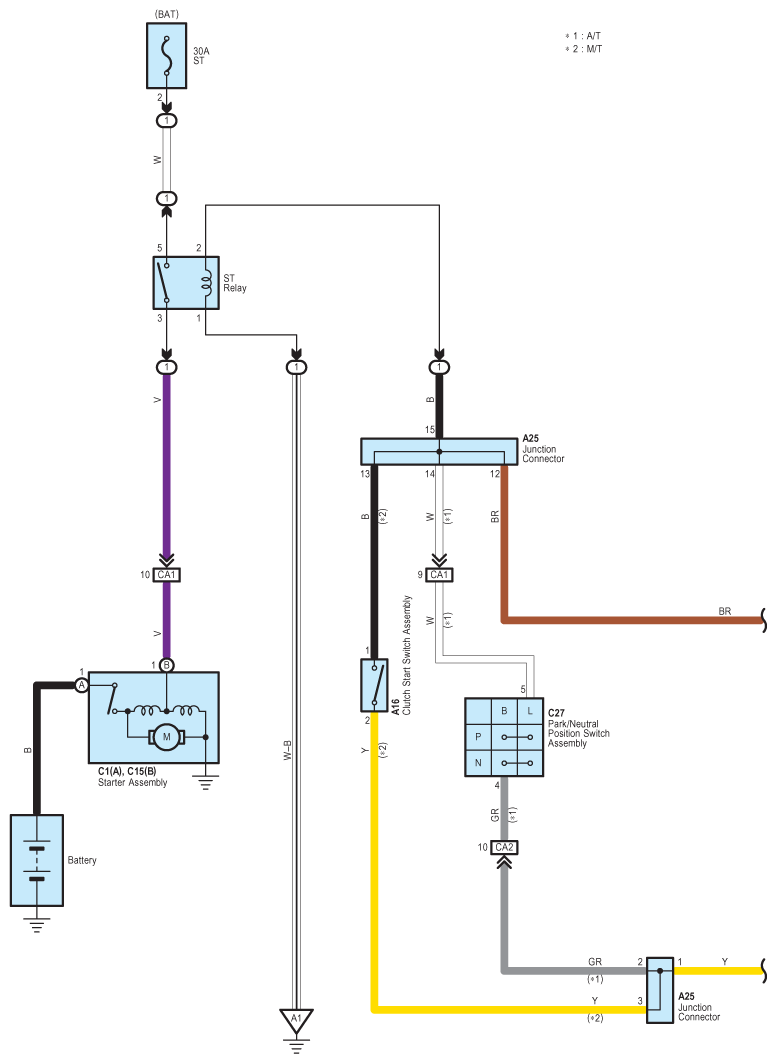

Fig 1: Starting (S/D) System Wiring Diagram (1 Of 2)
G09112679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

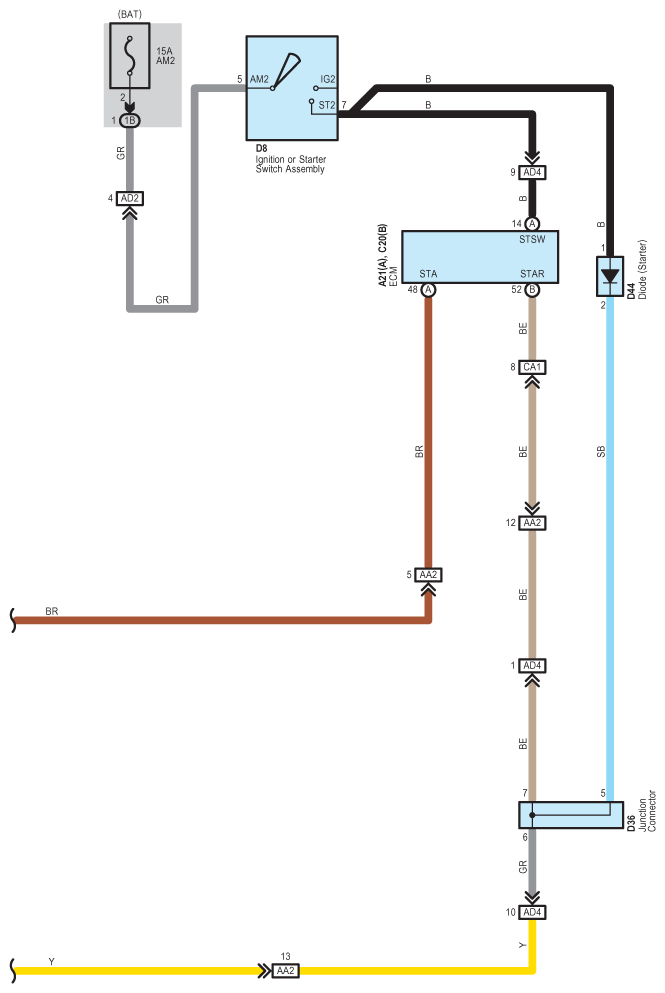

Fig 2: Starting (S/D) System Wiring Diagram (2 Of 2)
G09112680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
