Power Window (S/D): Notes

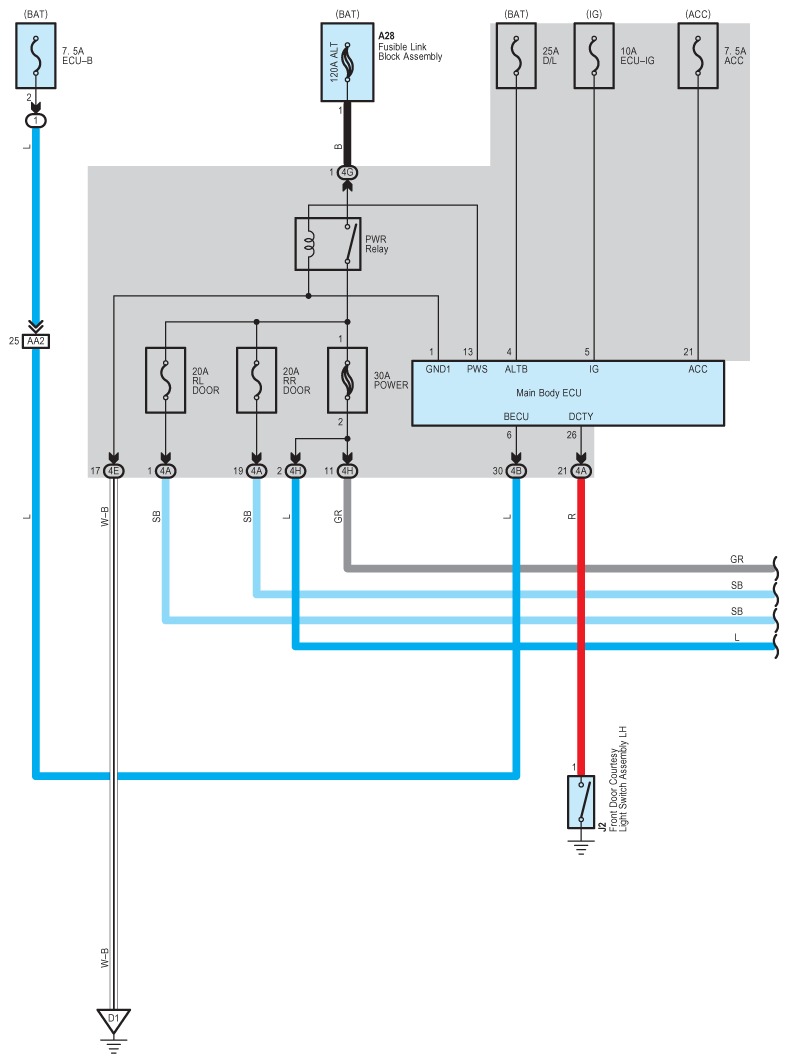

Fig 1: Power Window (S/D) System Wiring Diagram (1 Of 3)
G09112732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

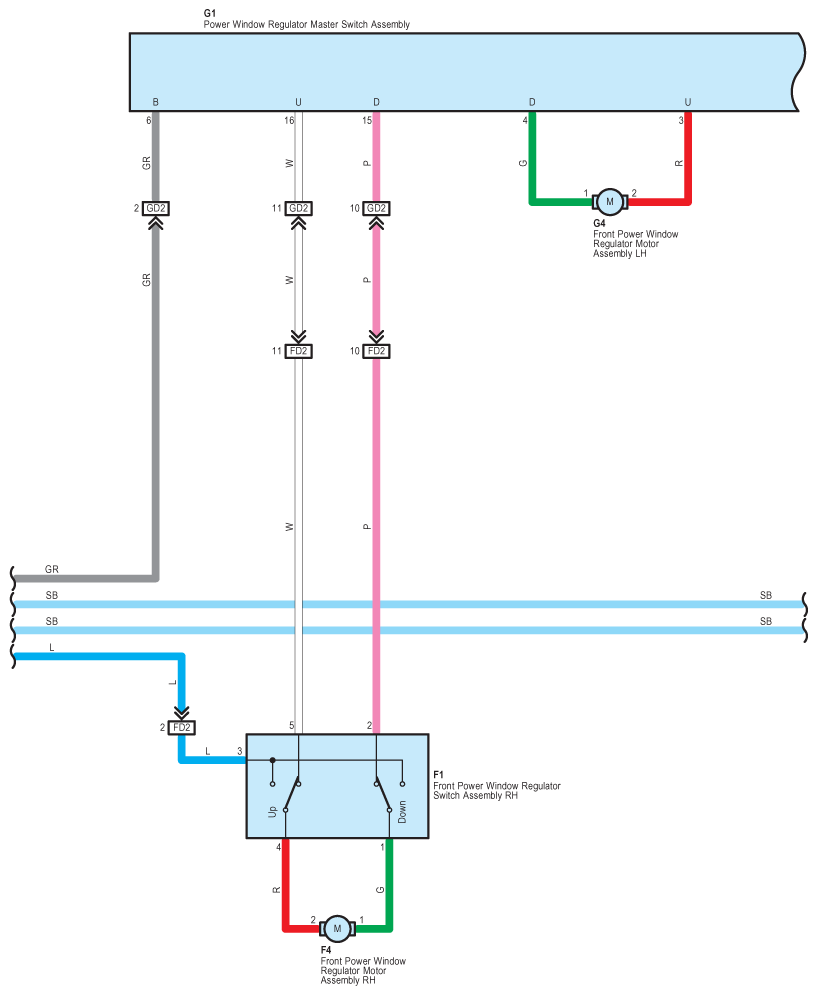

Fig 2: Power Window (S/D) System Wiring Diagram (2 Of 3)
G09112733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

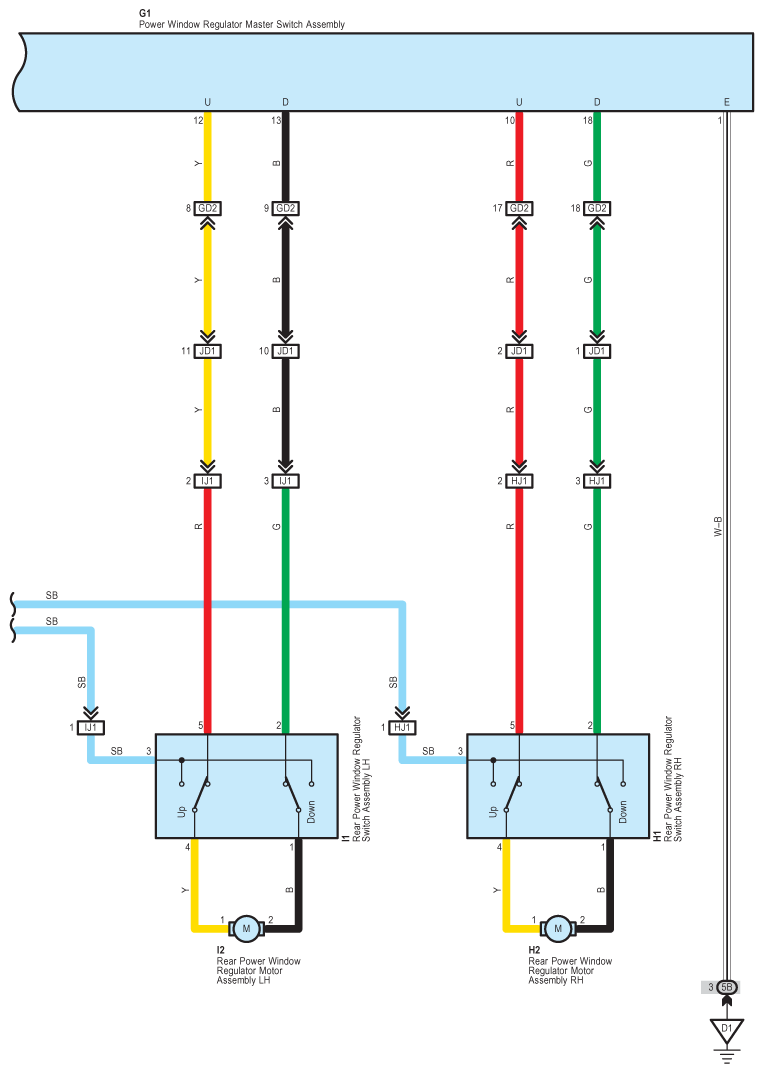

Fig 3: Power Window (S/D) System Wiring Diagram (3 Of 3)
G09112734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
