Power Window (H/B): Notes

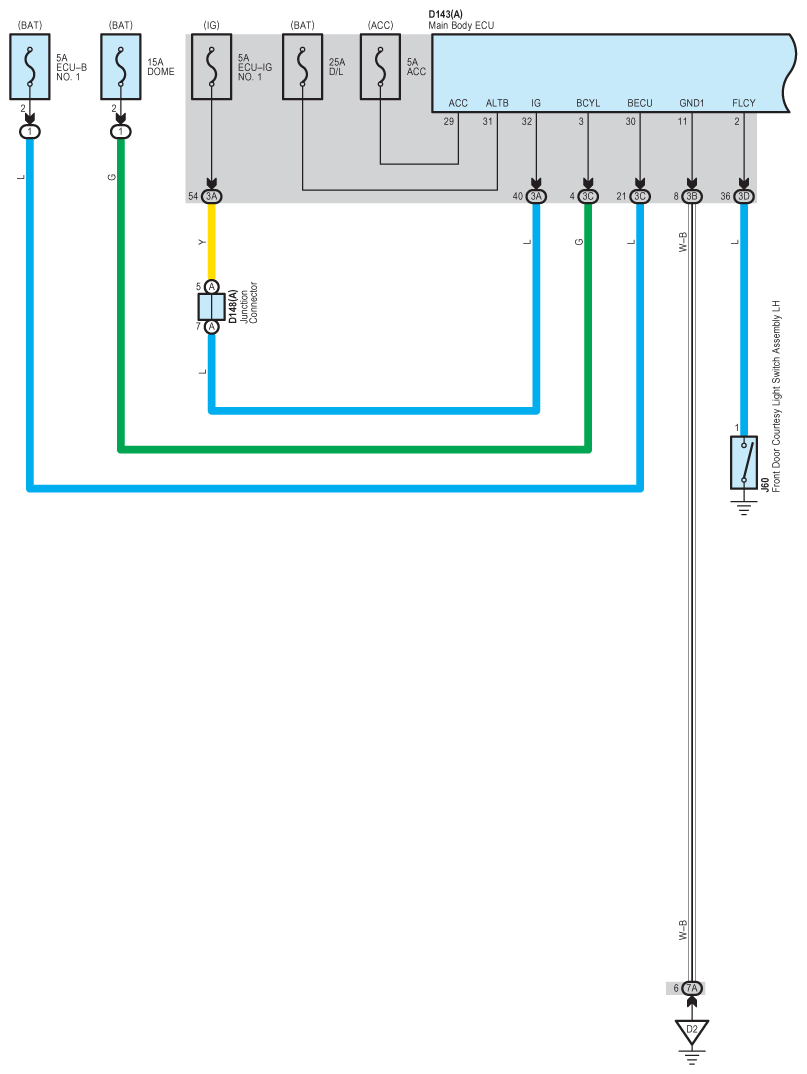

Fig 1: Power Window (H/B) System Wiring Diagram (1 Of 3)
G09112616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

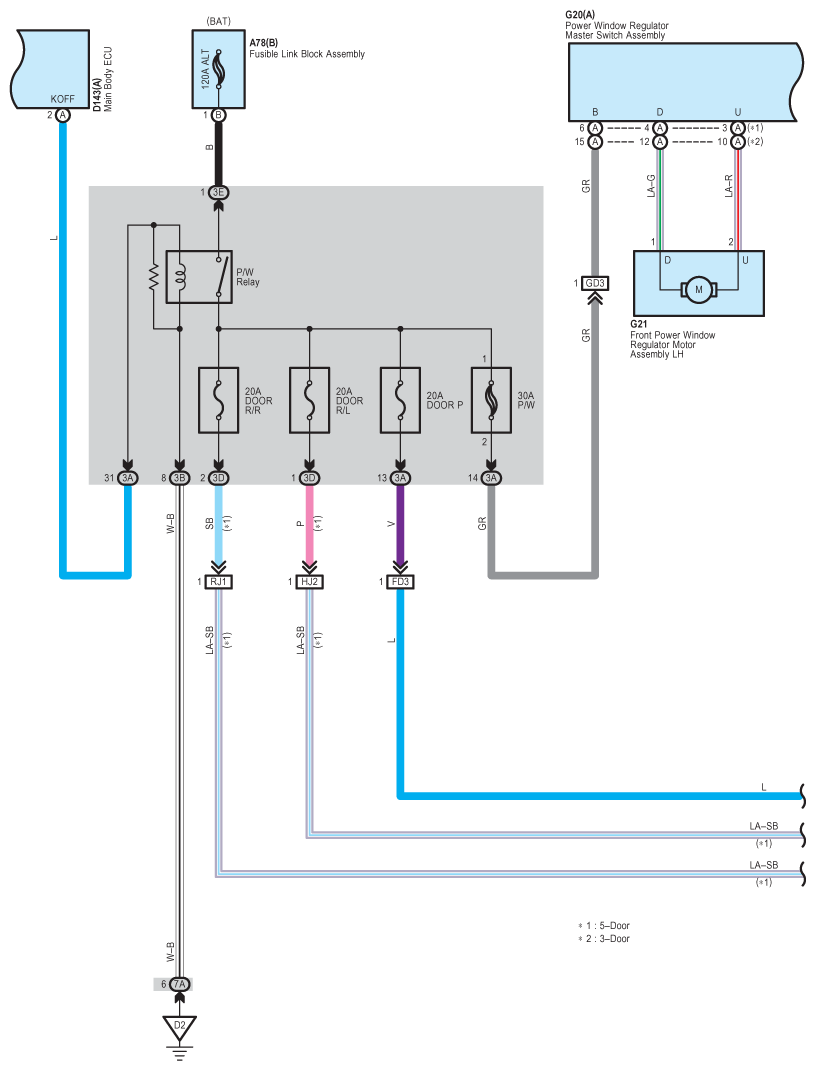

Fig 2: Power Window (H/B) System Wiring Diagram (2 Of 3)
G09112617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

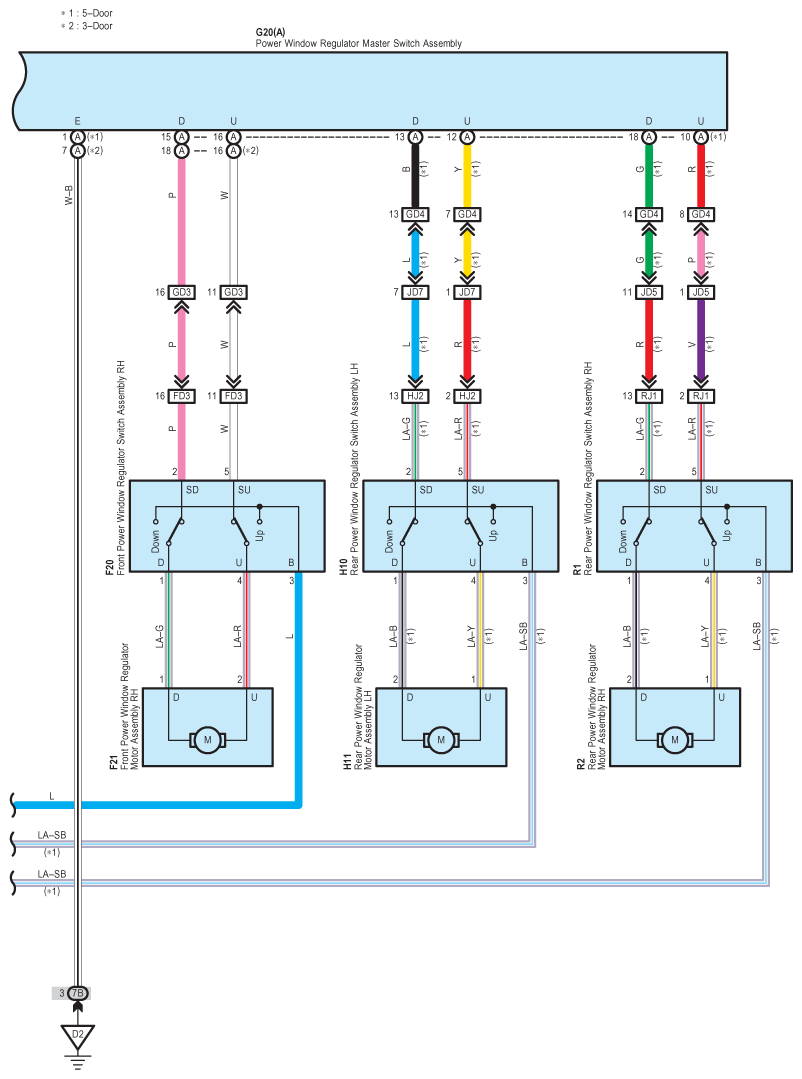

Fig 3: Power Window (H/B) System Wiring Diagram (3 Of 3)
G09112618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
