Interior Light (S/D): Notes

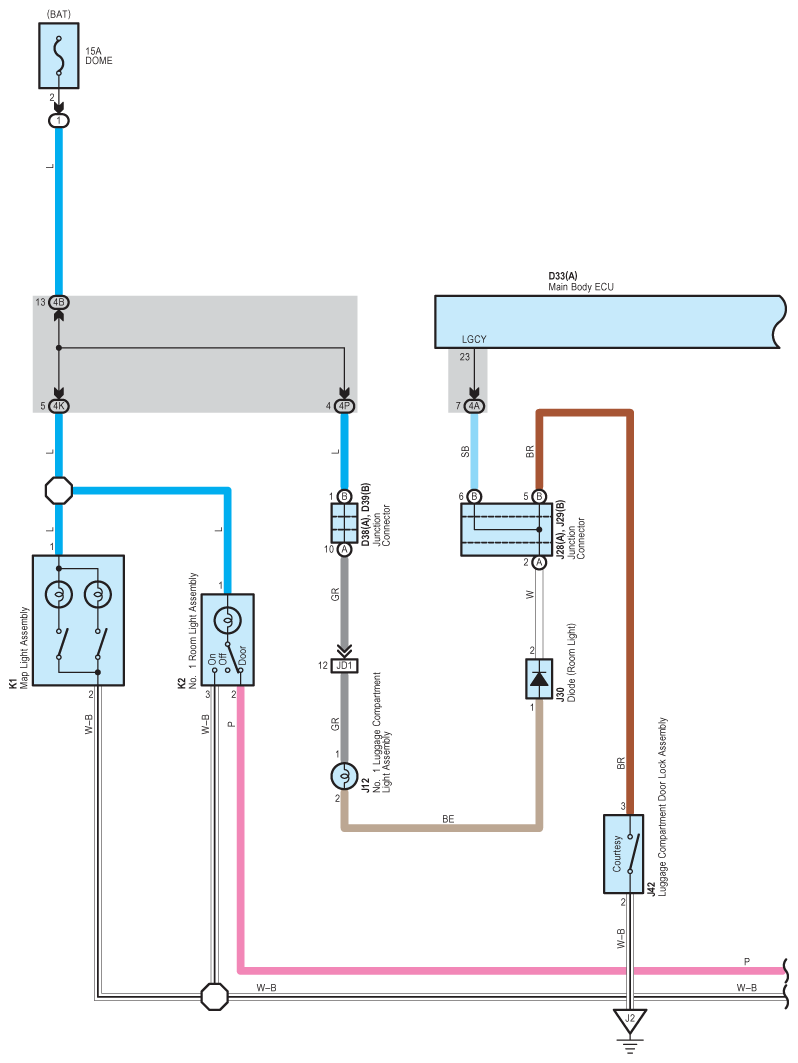

Fig 1: Interior Light (S/D) System Wiring Diagram (1 Of 2)
G09112708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

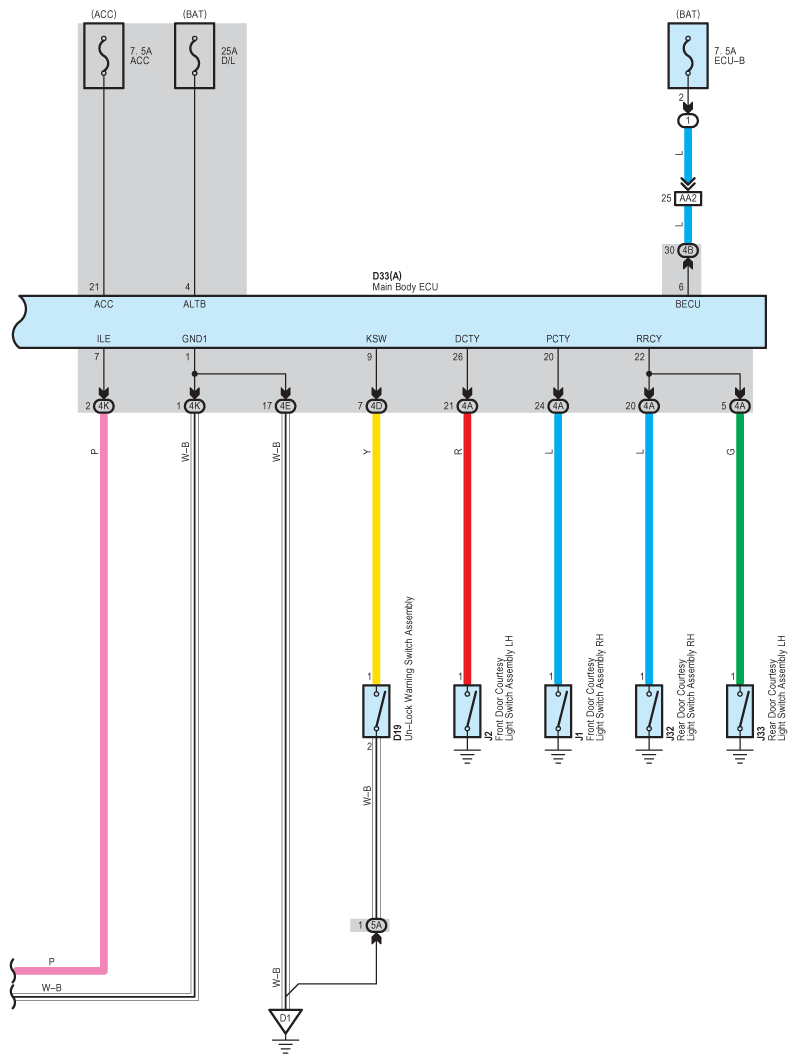

Fig 2: Interior Light (S/D) System Wiring Diagram (2 Of 2)
G09112709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
