Ignition (S/D): Notes

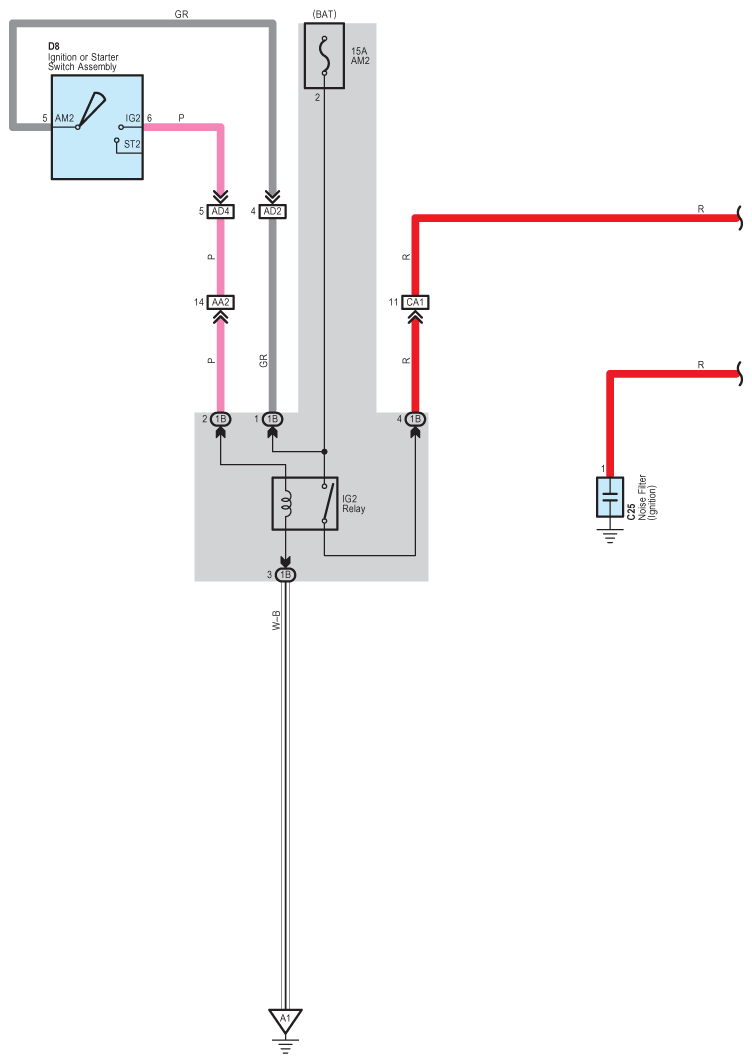

Fig 1: Ignition (S/D) System Wiring Diagram (1 Of 2)
G09112682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

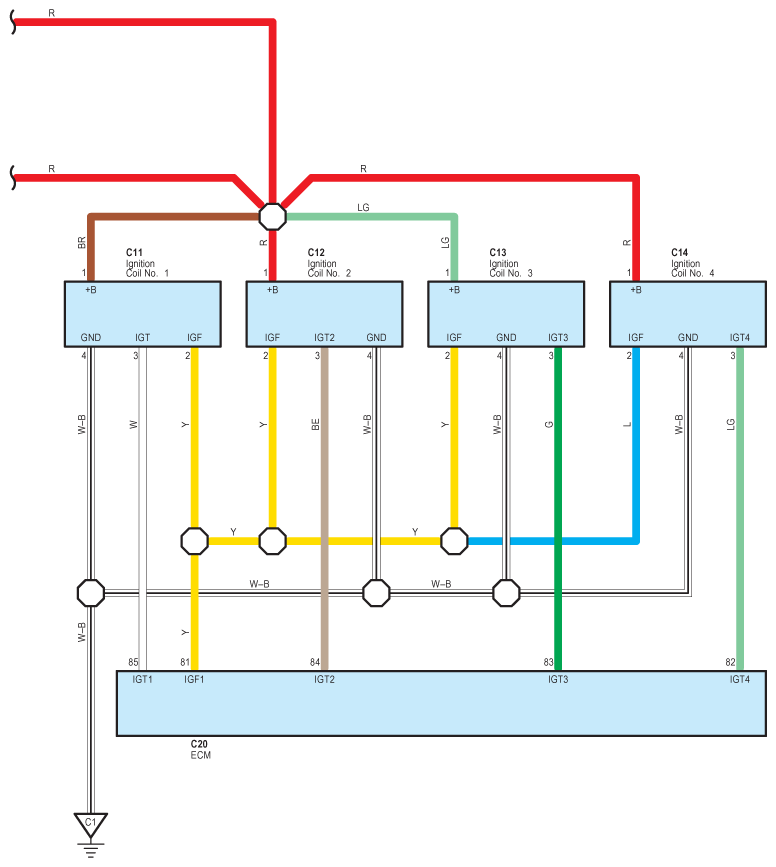

Fig 2: Ignition (S/D) System Wiring Diagram (2 Of 2)
G09112683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
