Engine Immobilizer System (H/B): Notes

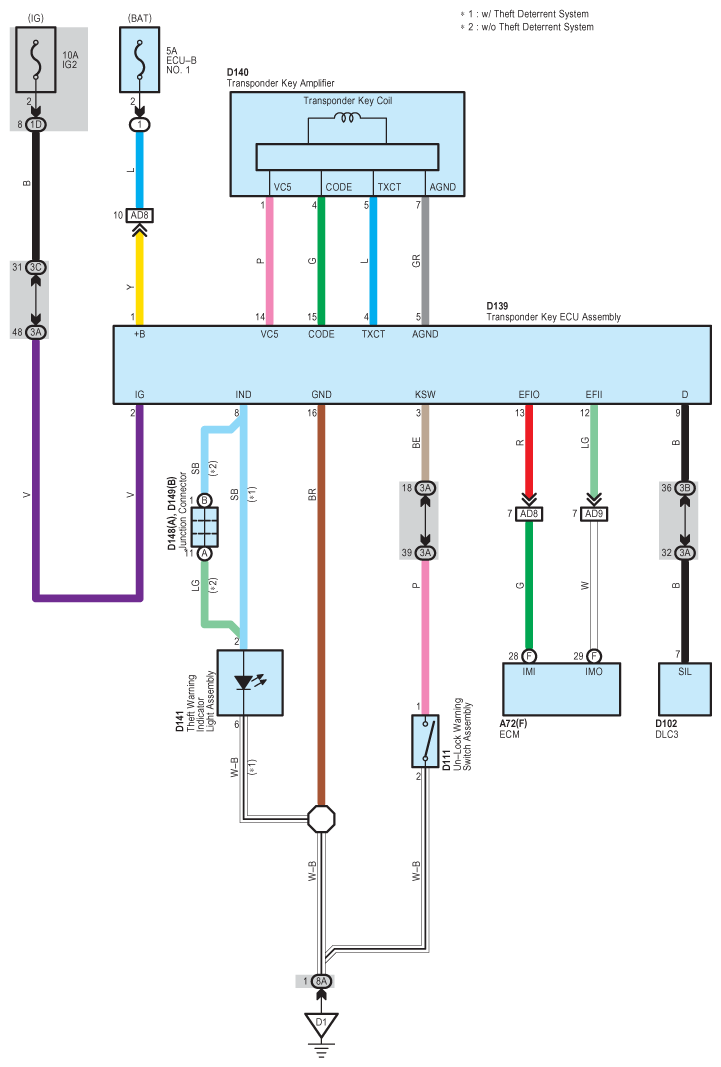

Fig 1: Engine Immobilizer System Wiring Diagram (H/B)

G09112561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
