EPS (H/B): Notes

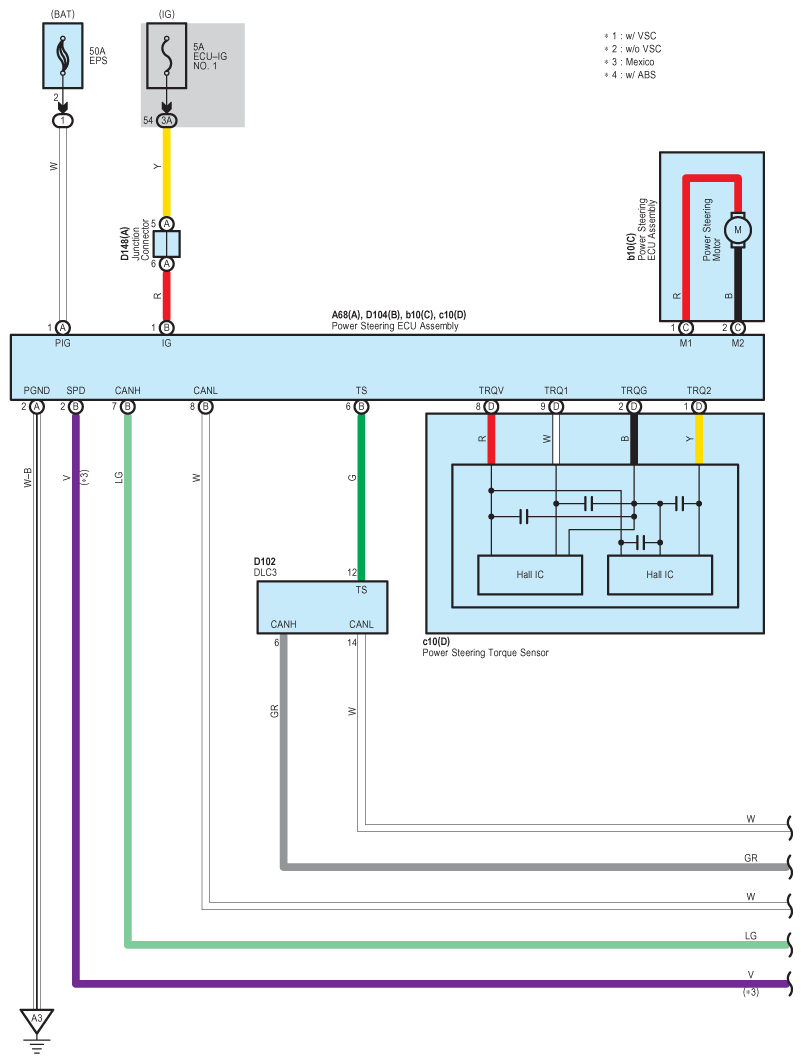

Fig 1: EPS System Wiring Diagram (H/B) (1 Of 3)
G09112610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

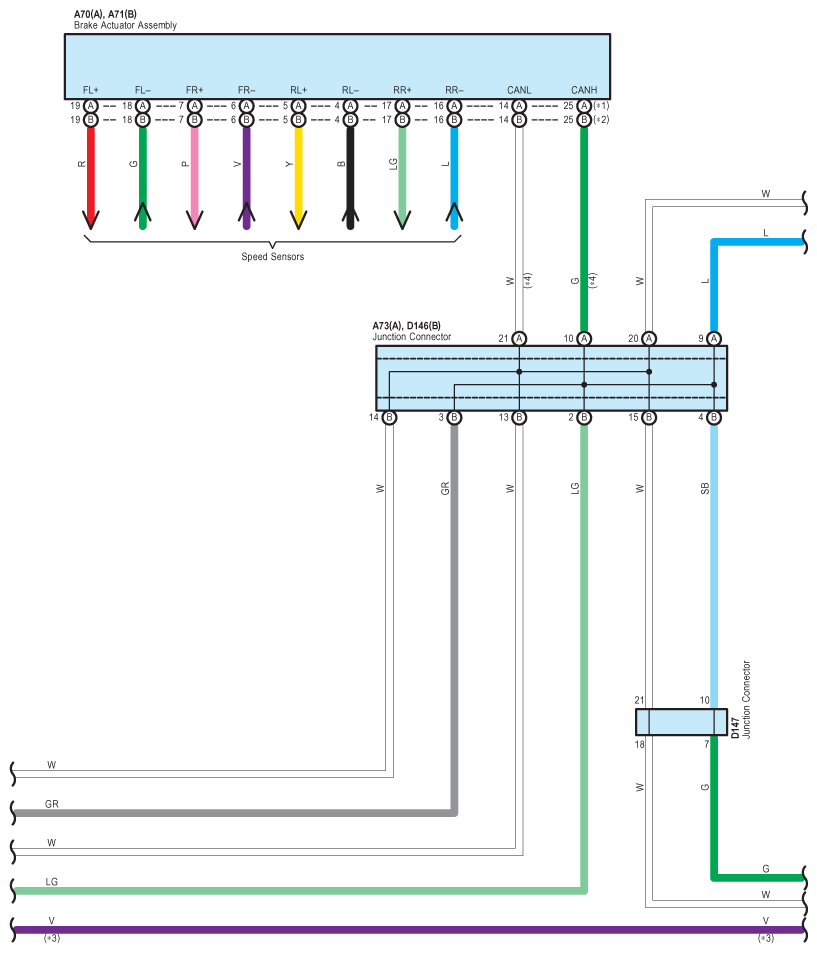

Fig 2: EPS System Wiring Diagram (H/B) (2 Of 3)
G09112611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

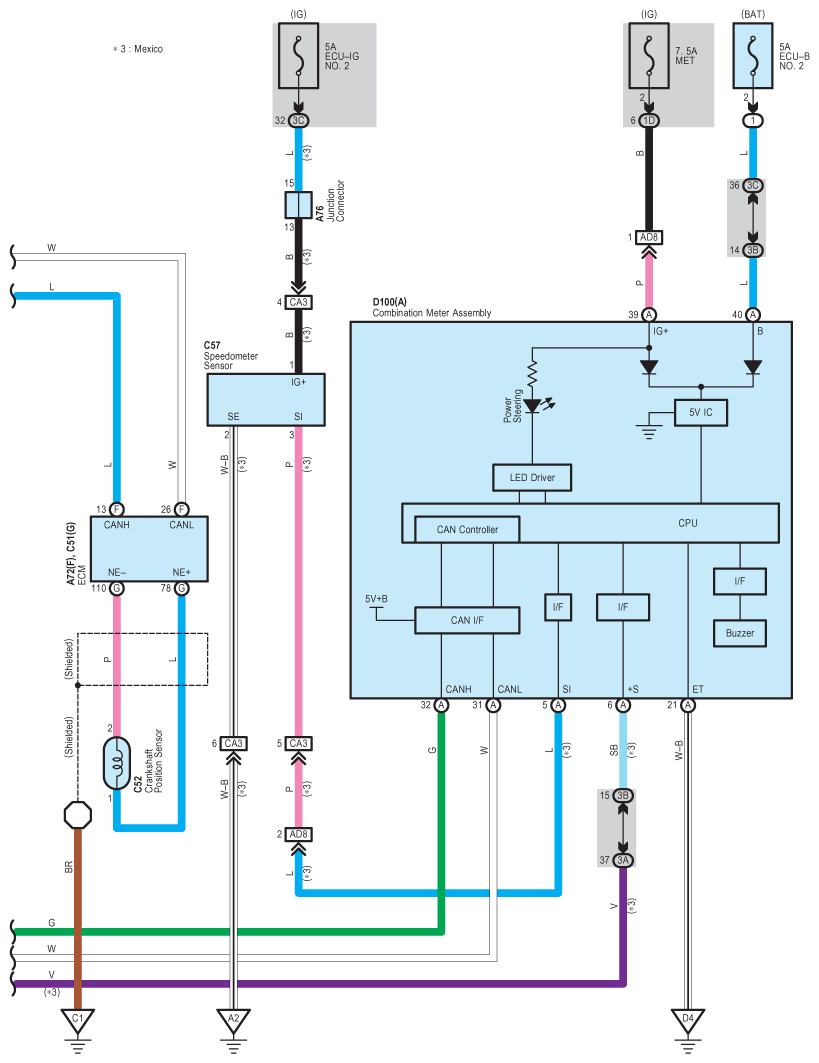

Fig 3: EPS System Wiring Diagram (H/B) (3 Of 3)
G09112612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
