Combination Meter (H/B): Notes

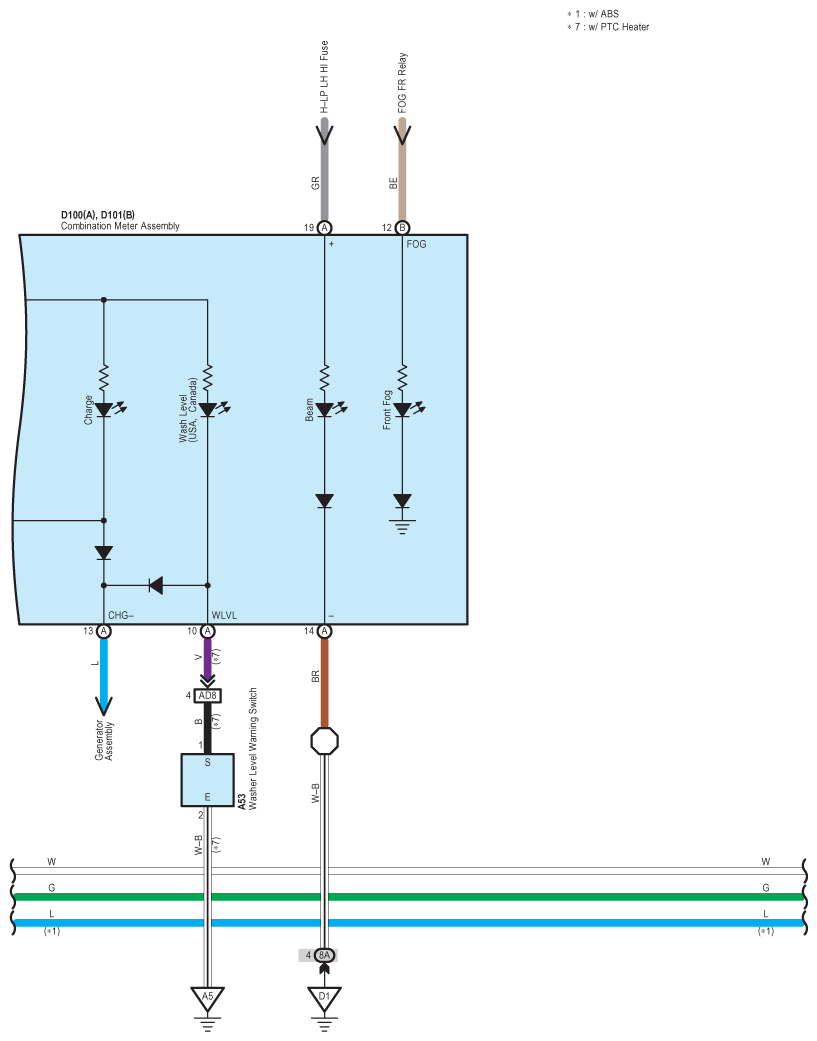

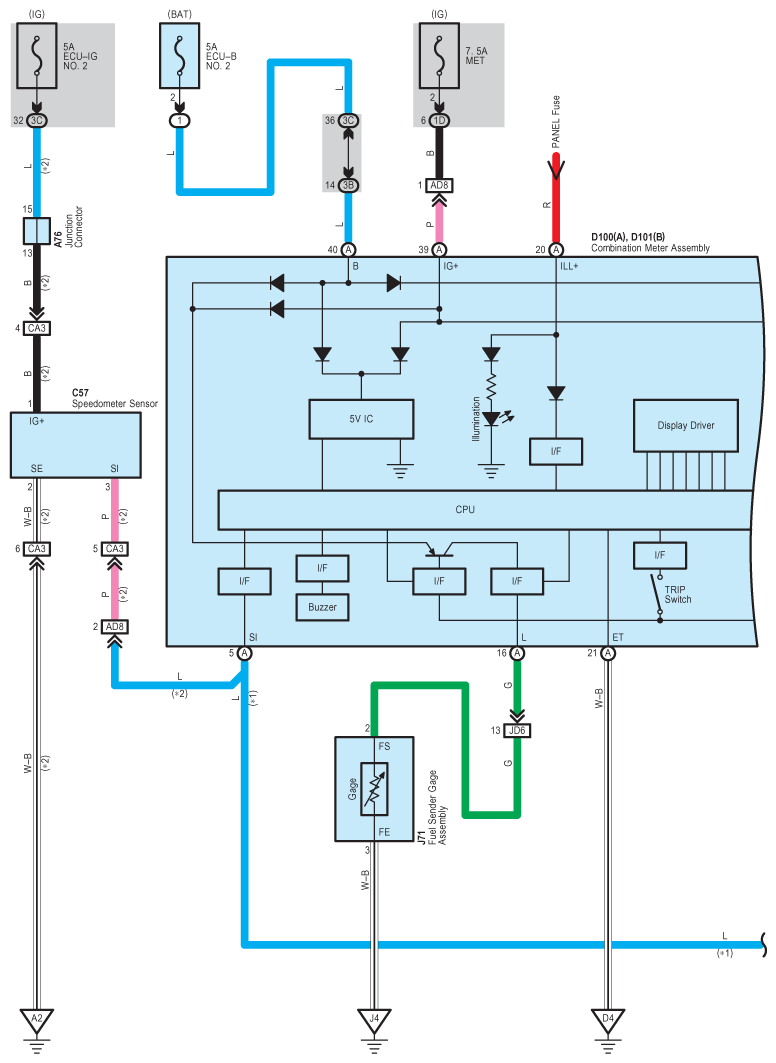

Fig 1: Combination Meter (H/B) System Wiring Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

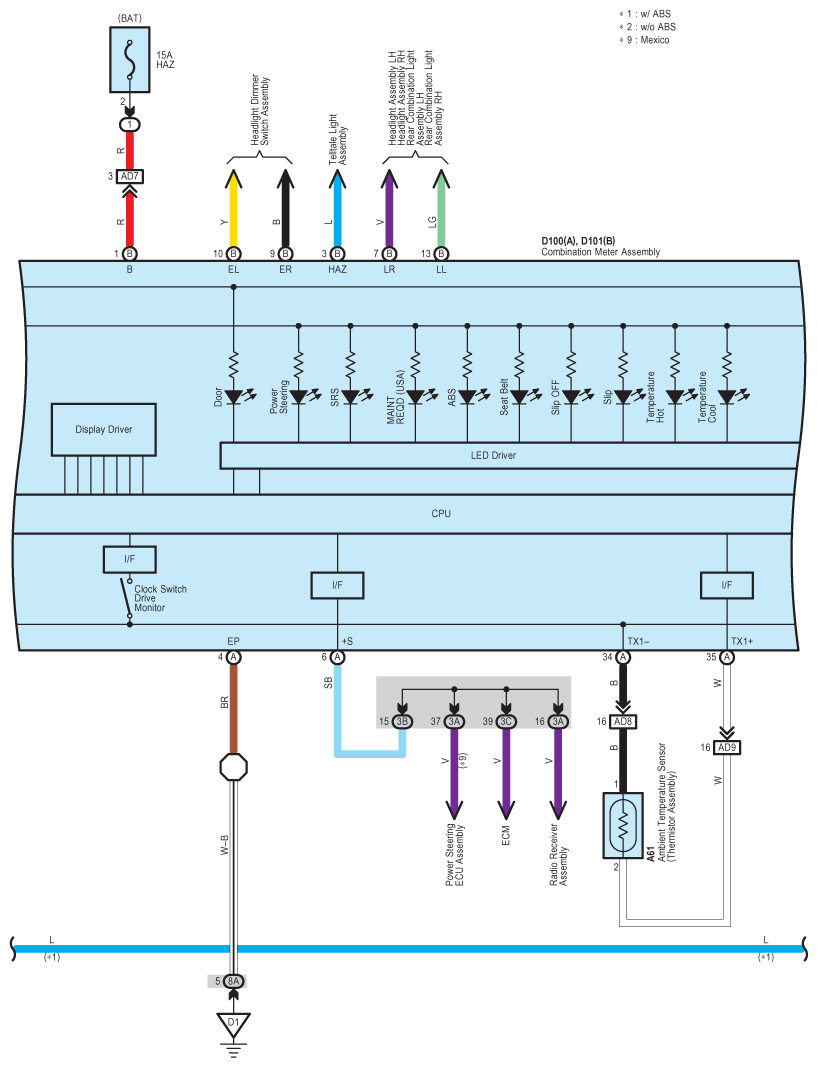

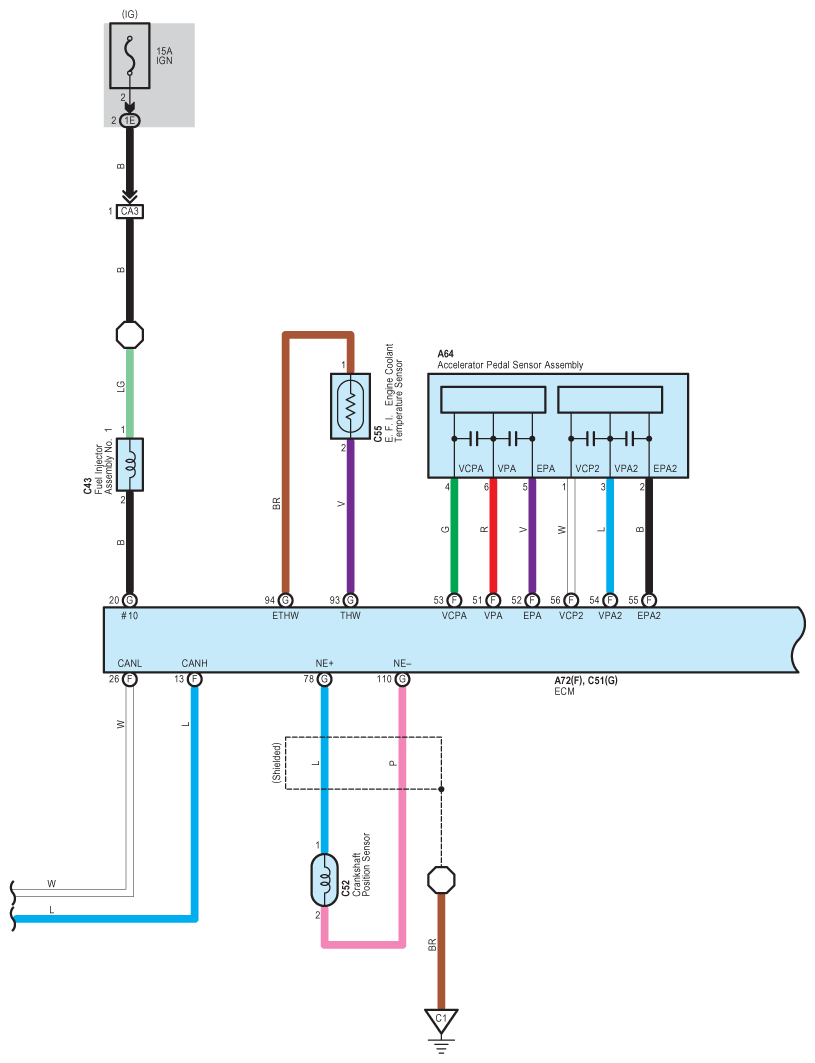

Fig 2: Combination Meter (H/B) System Wiring Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

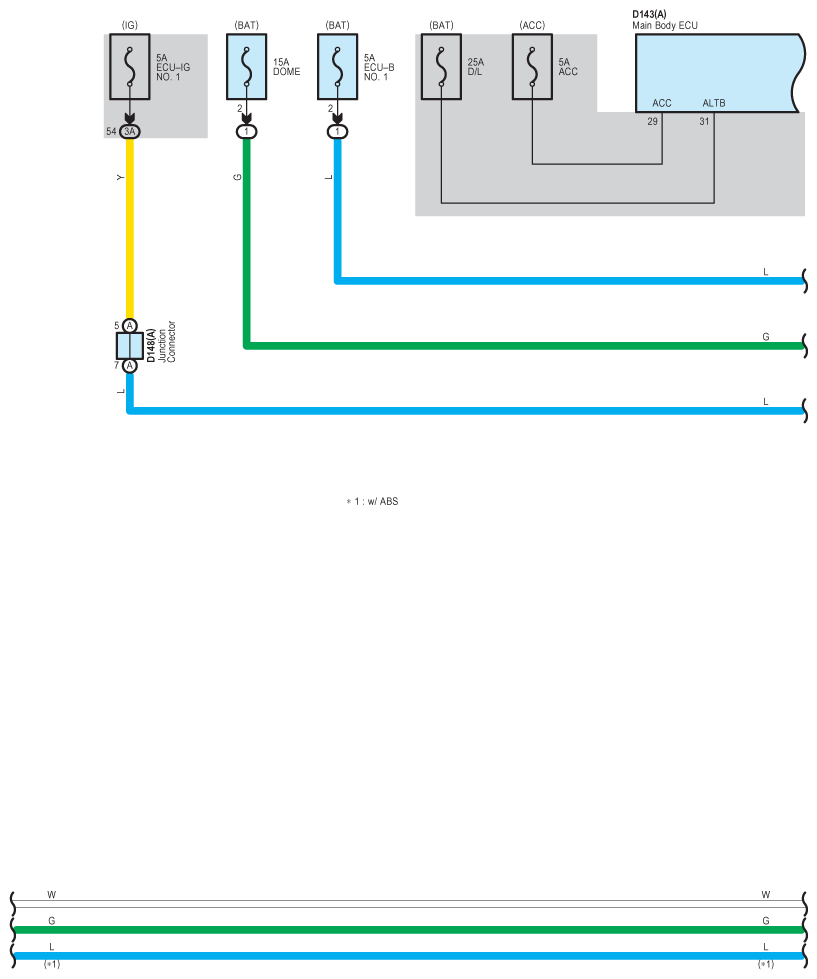

Fig 3: Combination Meter (H/B) System Wiring Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

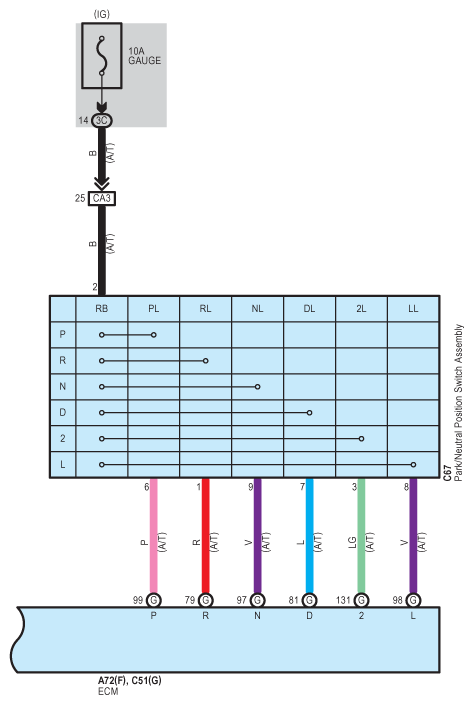

Fig 4: Combination Meter (H/B) System Wiring Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

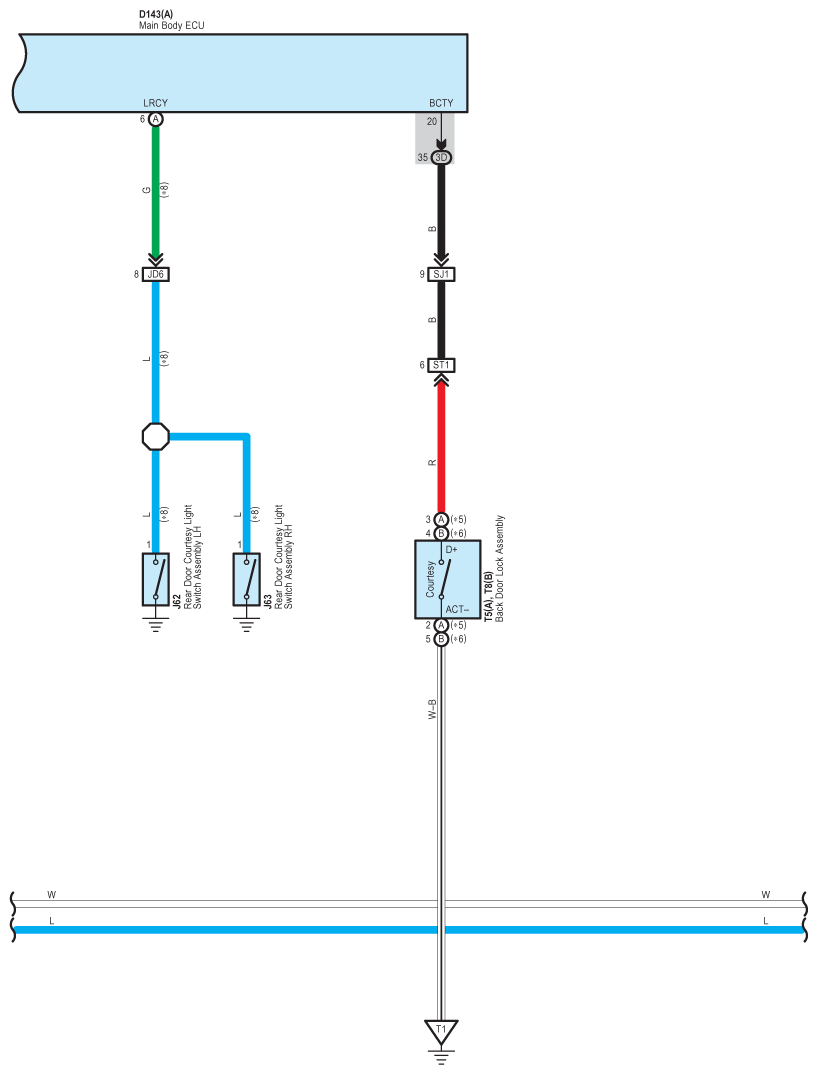

Fig 5: Combination Meter (H/B) System Wiring Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

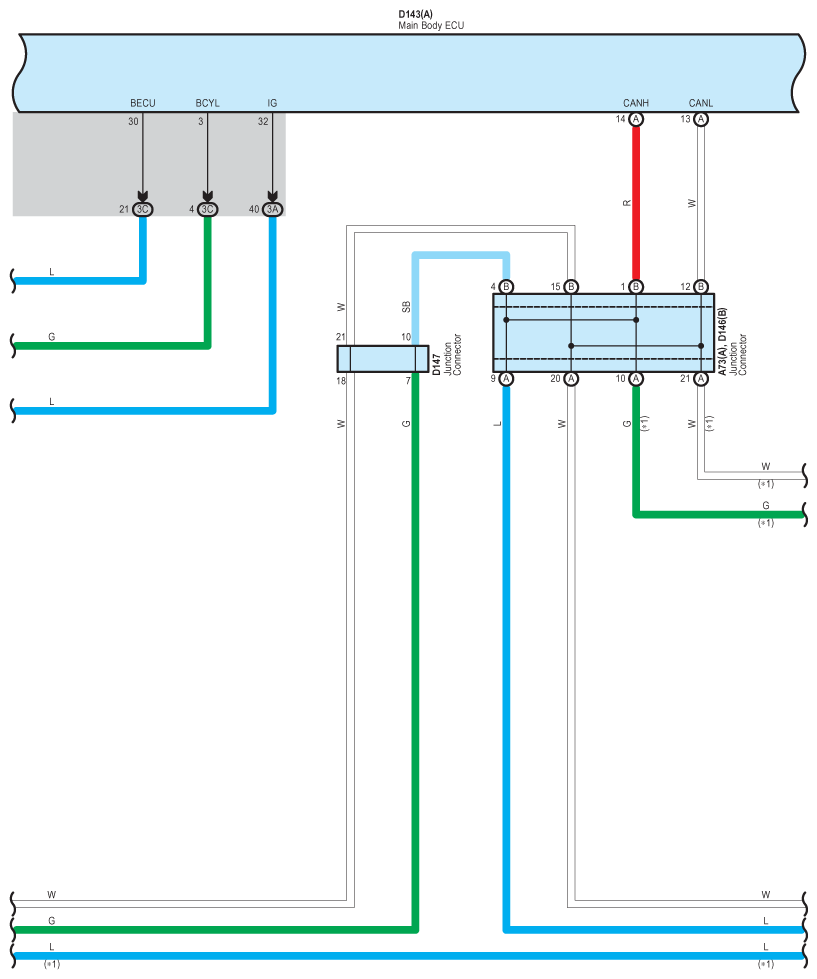

Fig 6: Combination Meter (H/B) System Wiring Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

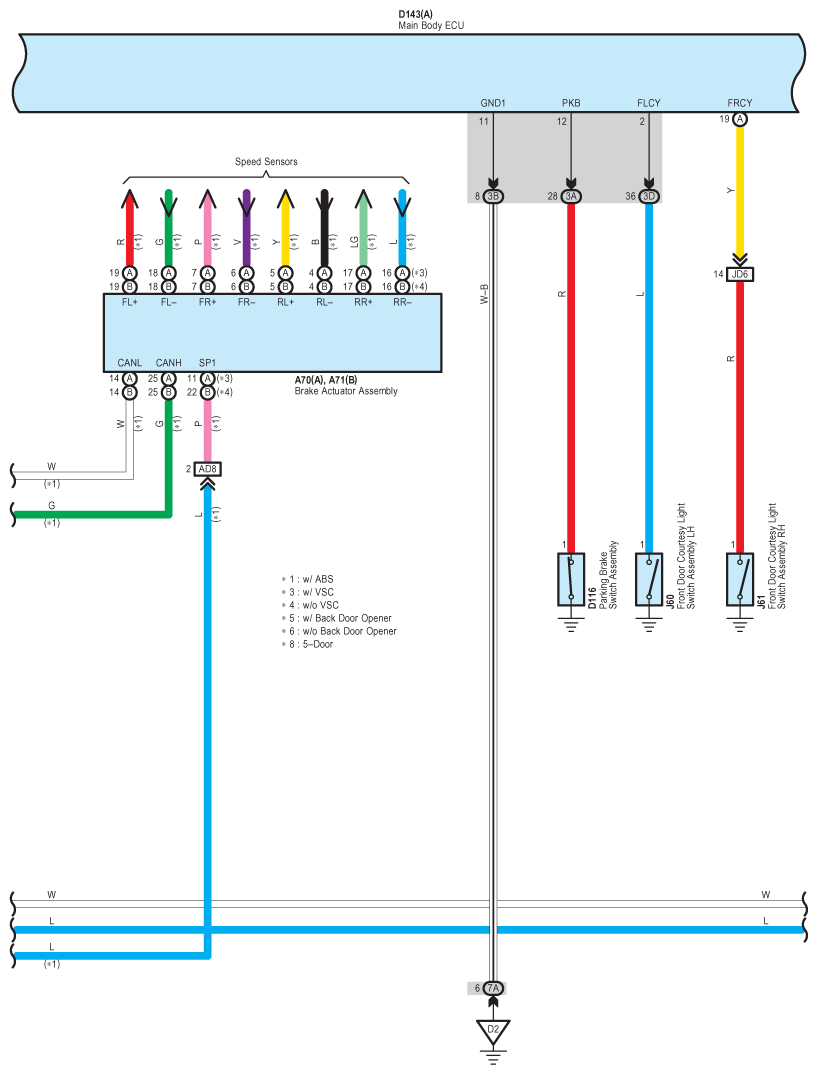

Fig 7: Combination Meter (H/B) System Wiring Diagram (7 Of 10)

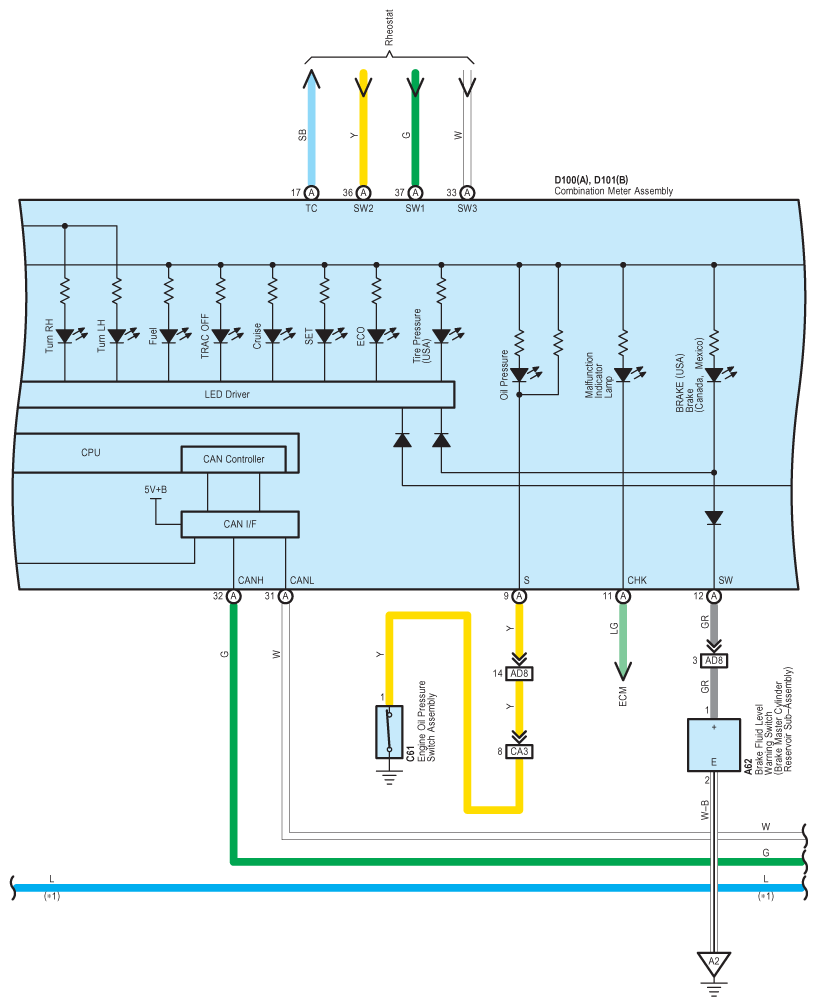

Fig 8: Combination Meter (H/B) System Wiring Diagram (8 Of 10)

Fig 9: Combination Meter (H/B) System Wiring Diagram (9 Of 10)

Fig 10: Combination Meter (H/B) System Wiring Diagram (10 Of 10)
