Charging (S/D): Notes

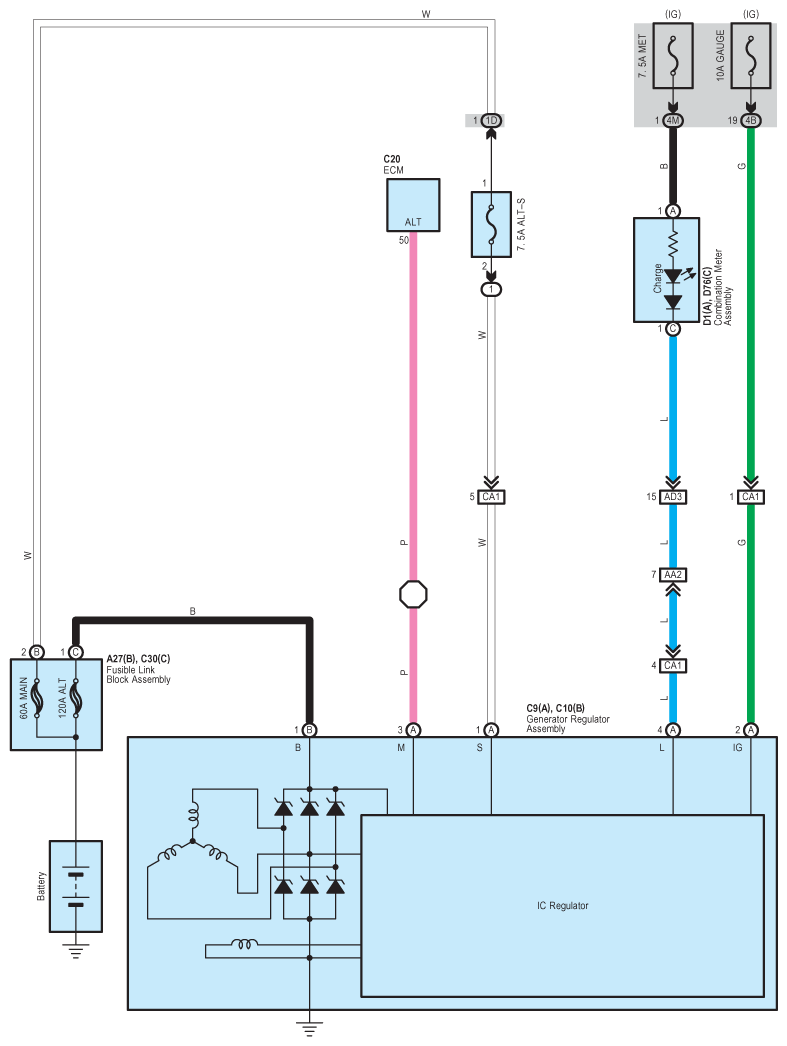

Fig 1: Charging (S/D) System Wiring Diagram

G09112681

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
