POWER SOURCE (Current Flow Chart): S/D

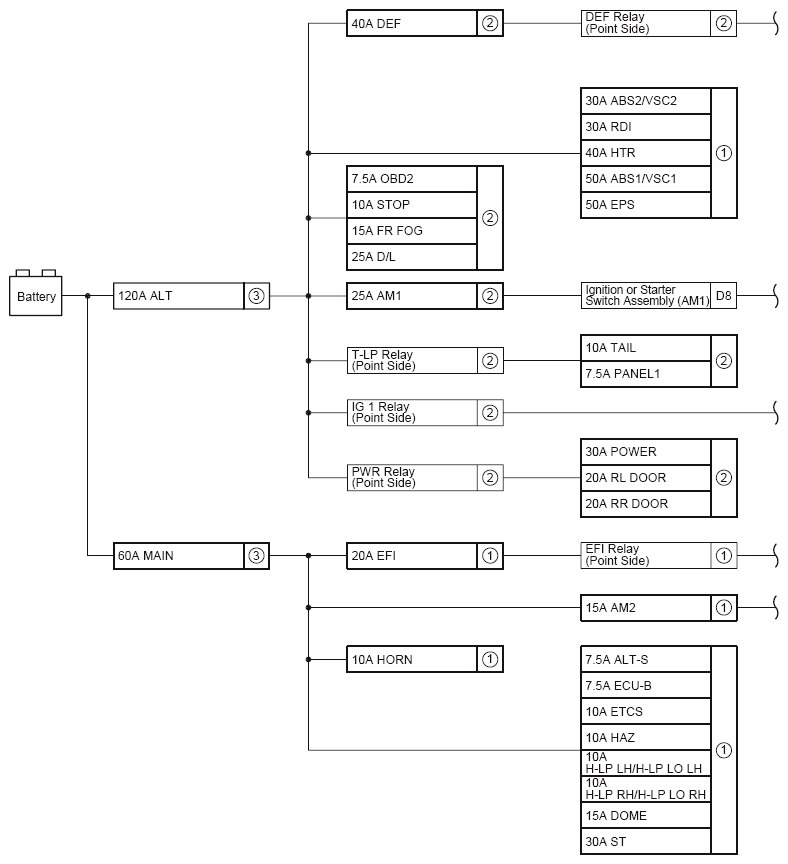

Fig 1: Current Flow Chart (S/D, 1 Of 2)
G09112788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

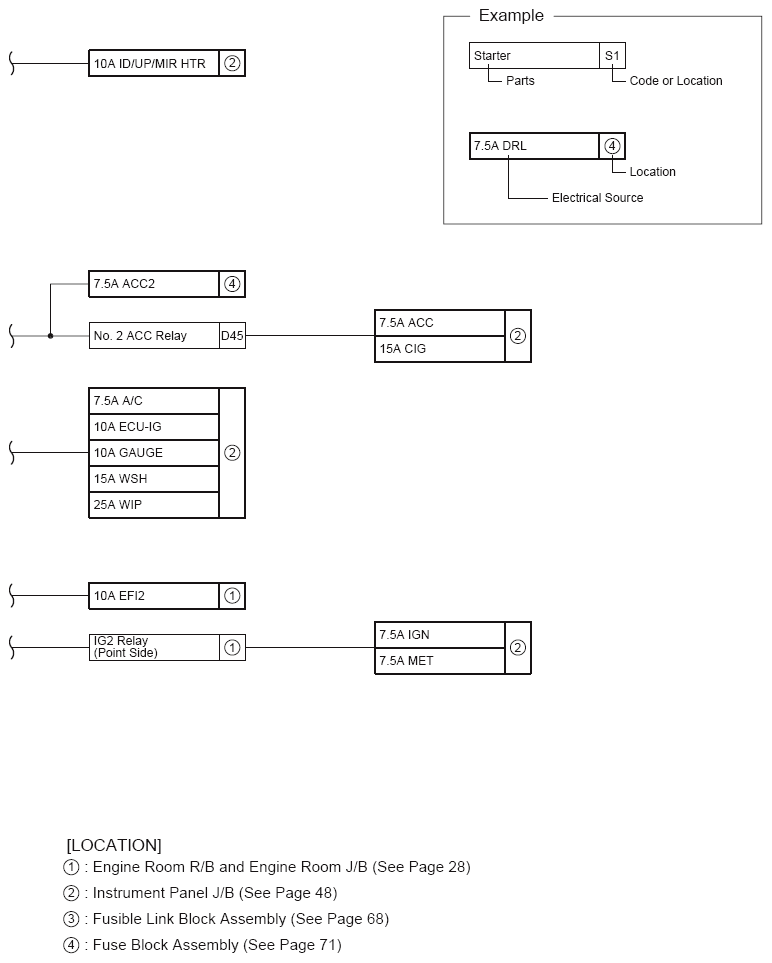

Fig 2: Current Flow Chart (S/D, 2 Of 2)
G09112789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
