Engine Control System (2GR-FE) (Service Information)
>>
Knock Sensor
>>
Components
>>
Illustration
Knock Sensor: Components: Illustration

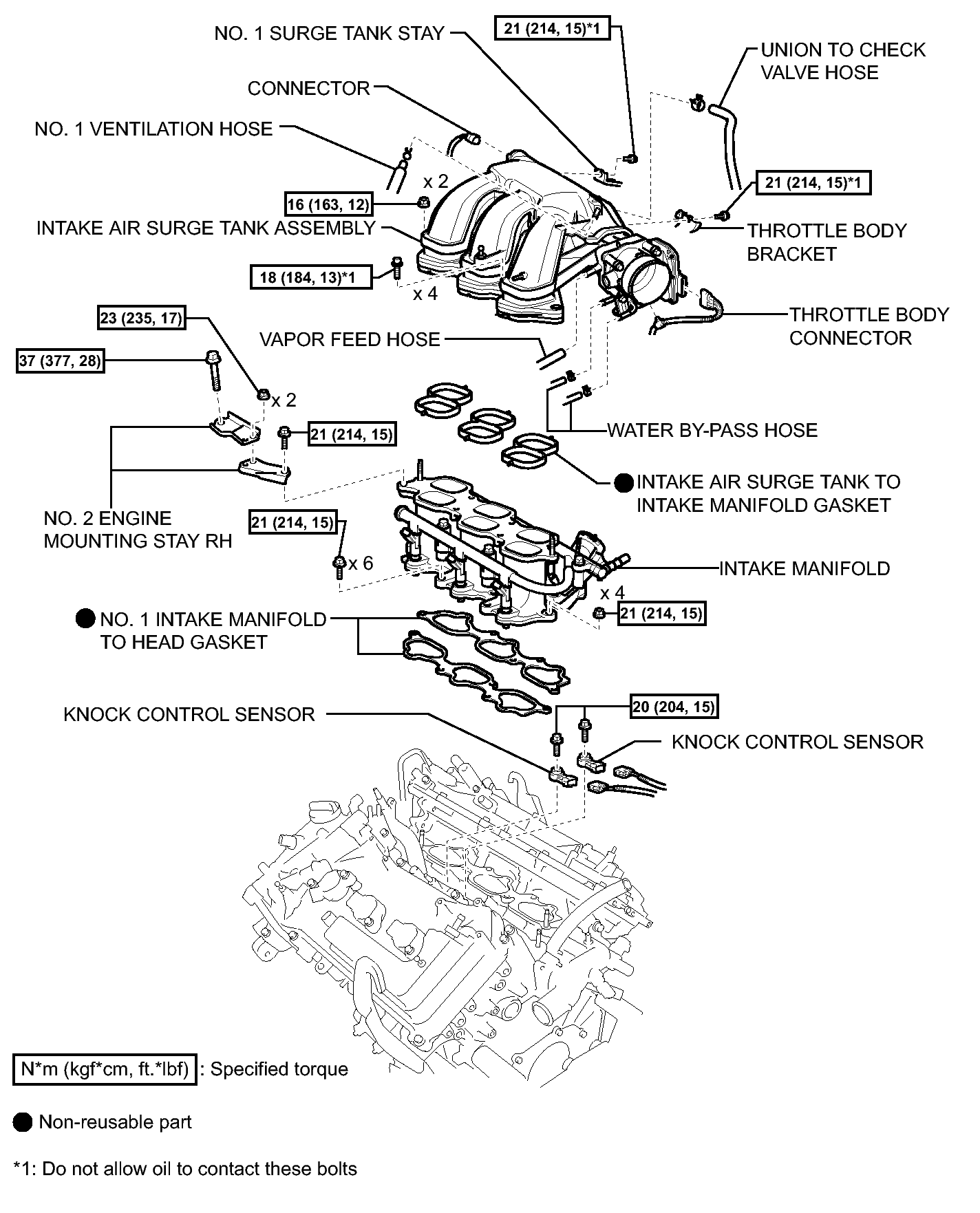

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
