Heated Oxygen Sensor: Components: Illustration

Fig 1: Identifying Heated Oxygen Sensor Replacement Components (1 Of 2)
GTY384588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

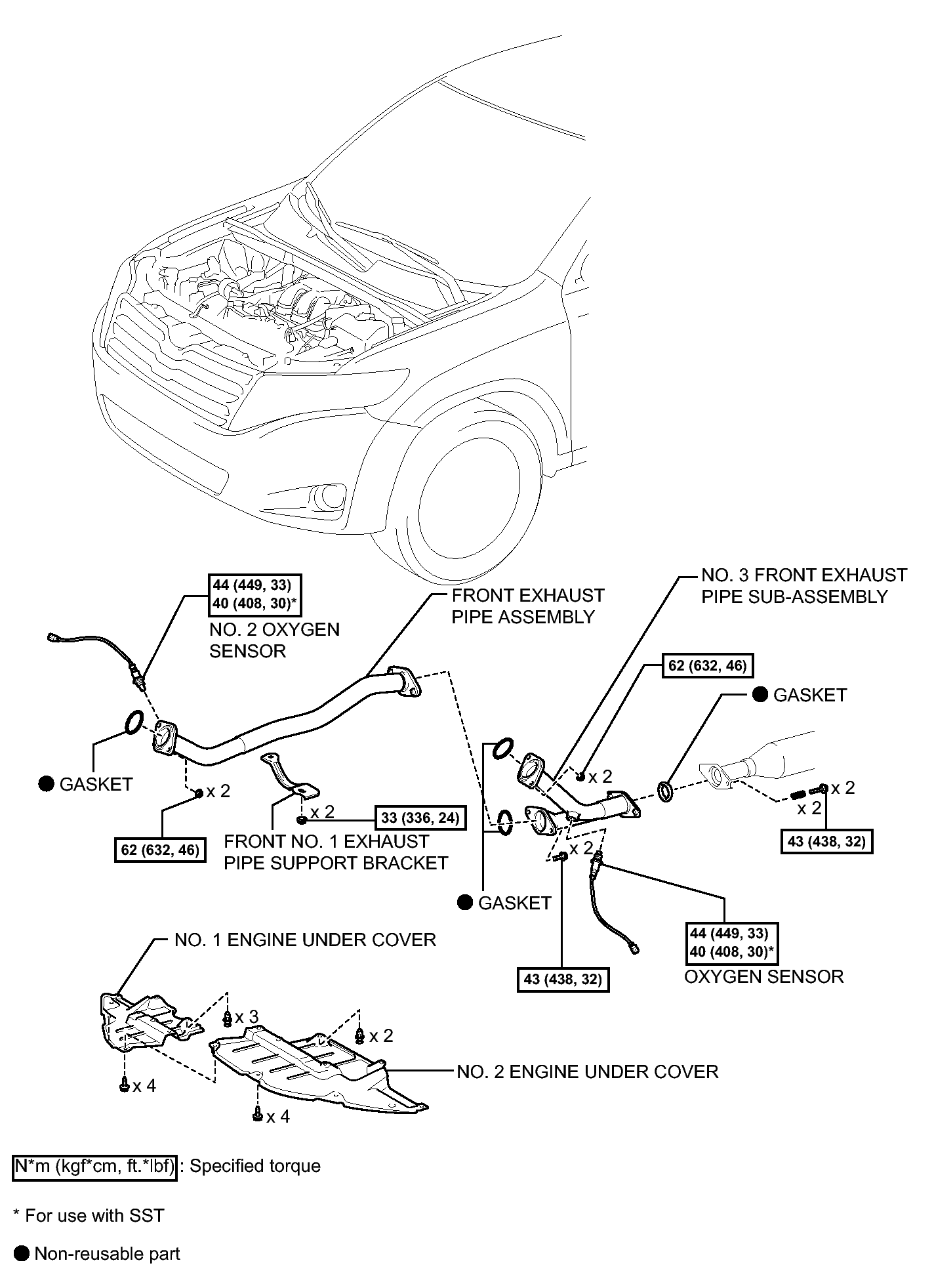

Fig 1: Identifying Heated Oxygen Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY251338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
