Home >> Toyota >> 2013 >> Venza Limited, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (2GR-FE) (Service Information) >> Accelerator Pedal >> Components >> Illustration

Accelerator Pedal: Components: Illustration

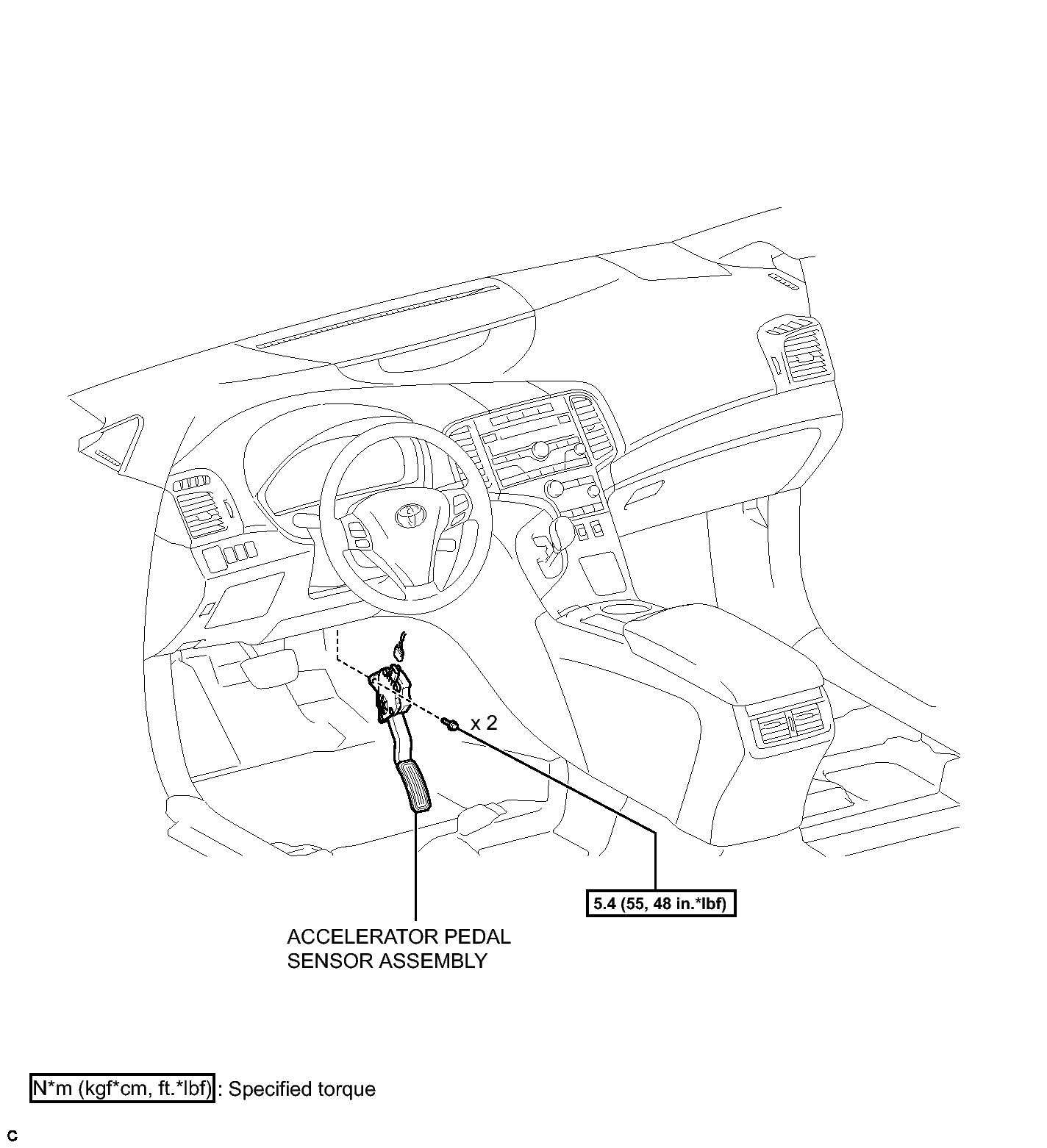

Fig 1: Identifying Accelerator Pedal Replacement Components With Torque Specifications

GTY251339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
