Wireless Door Lock Control (w/o Smart Key System): Notes

Fig 1: Wireless Door Lock Control System Wiring Diagram (W/O Smart Key System, 1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

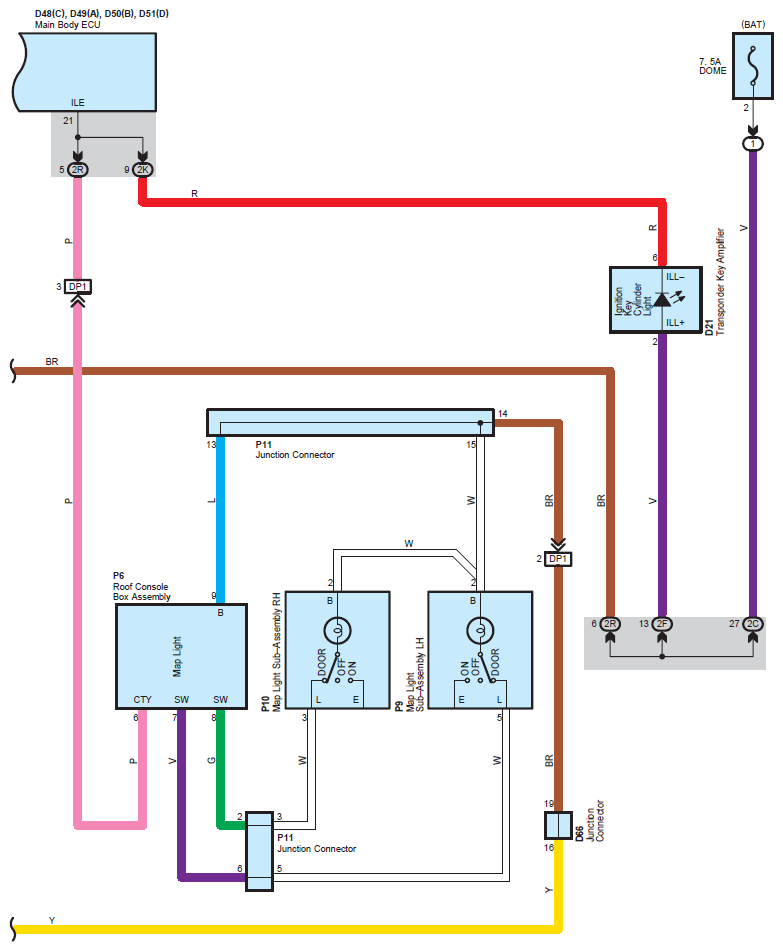

Fig 2: Wireless Door Lock Control System Wiring Diagram (W/O Smart Key System, 2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

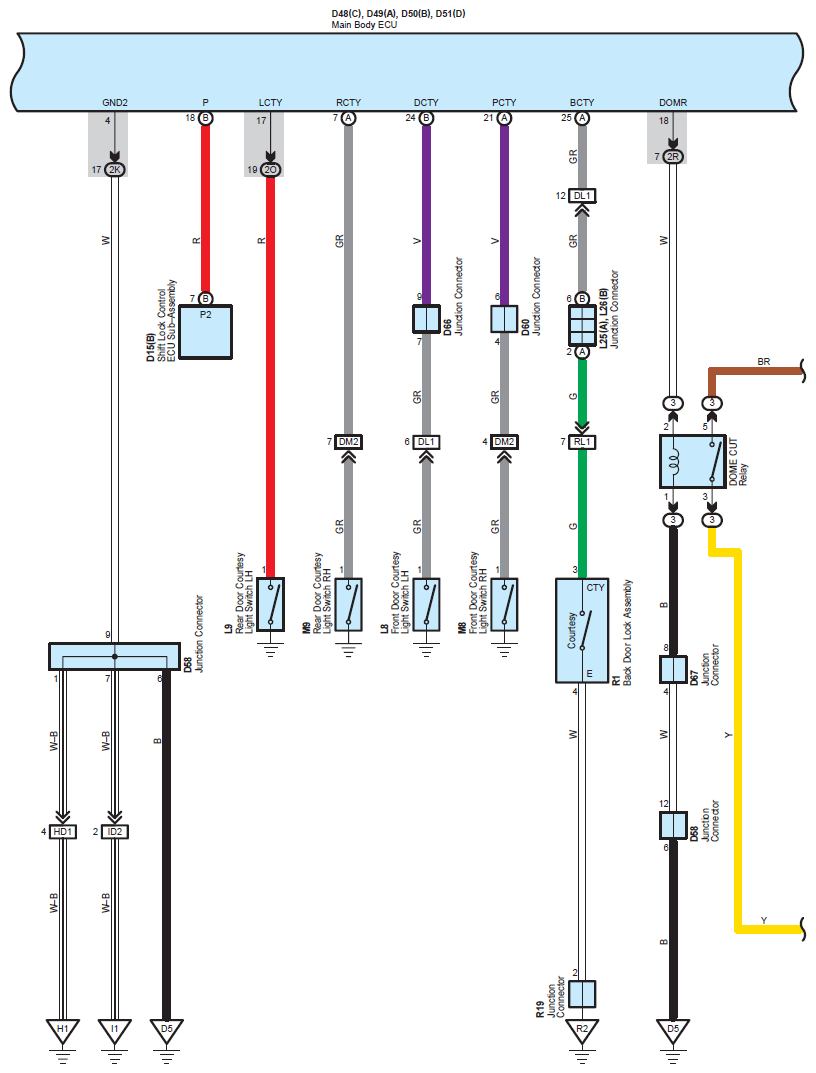

Fig 3: Wireless Door Lock Control System Wiring Diagram (W/O Smart Key System, 3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

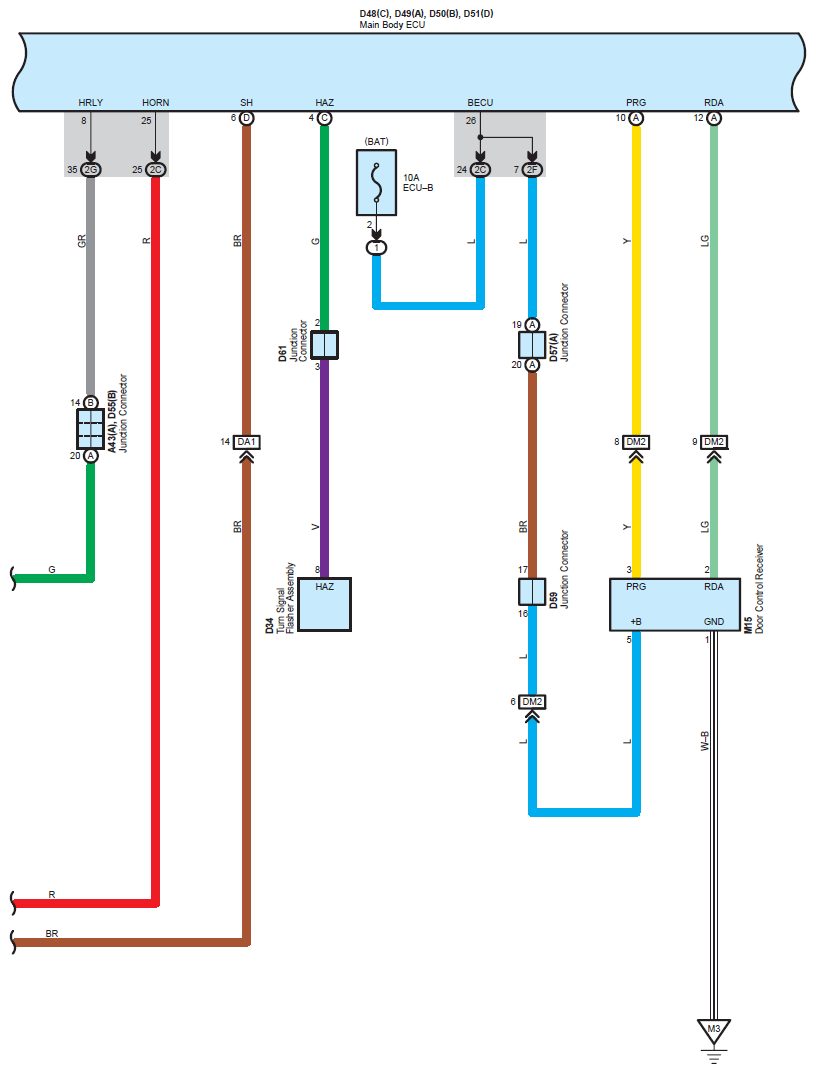

Fig 4: Wireless Door Lock Control System Wiring Diagram (W/O Smart Key System, 4 Of 6)

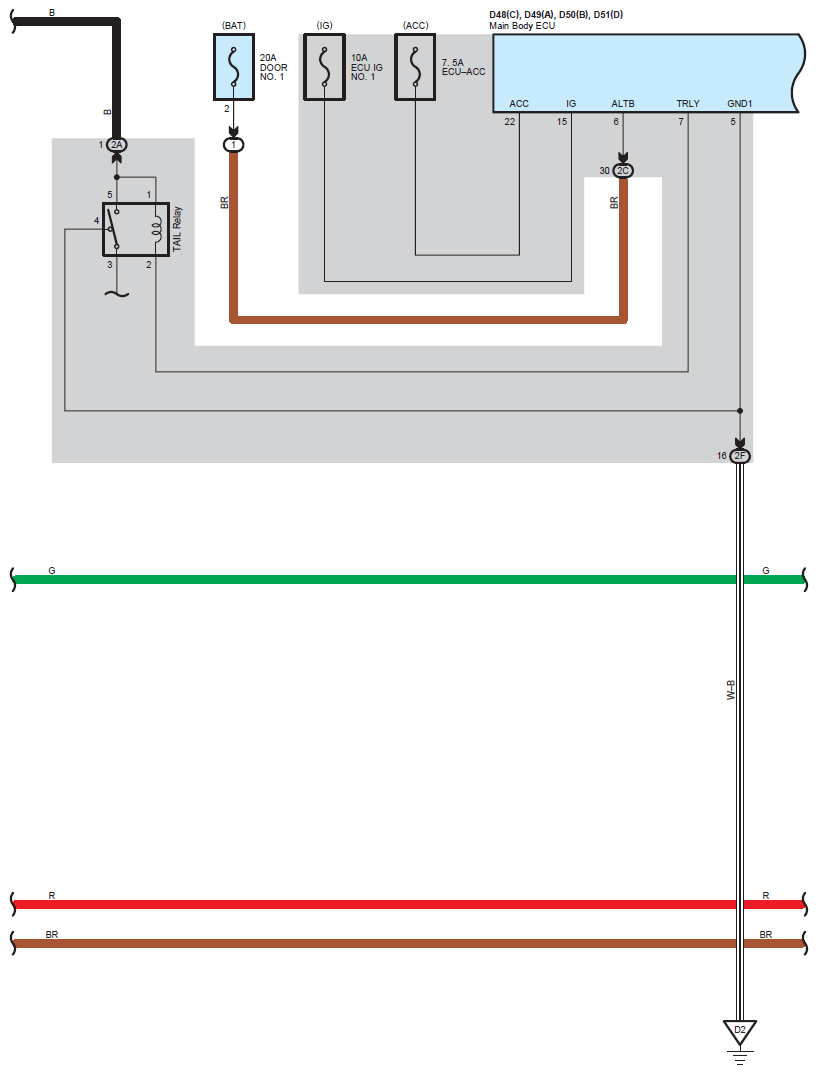

Fig 5: Wireless Door Lock Control System Wiring Diagram (W/O Smart Key System, 5 Of 6)

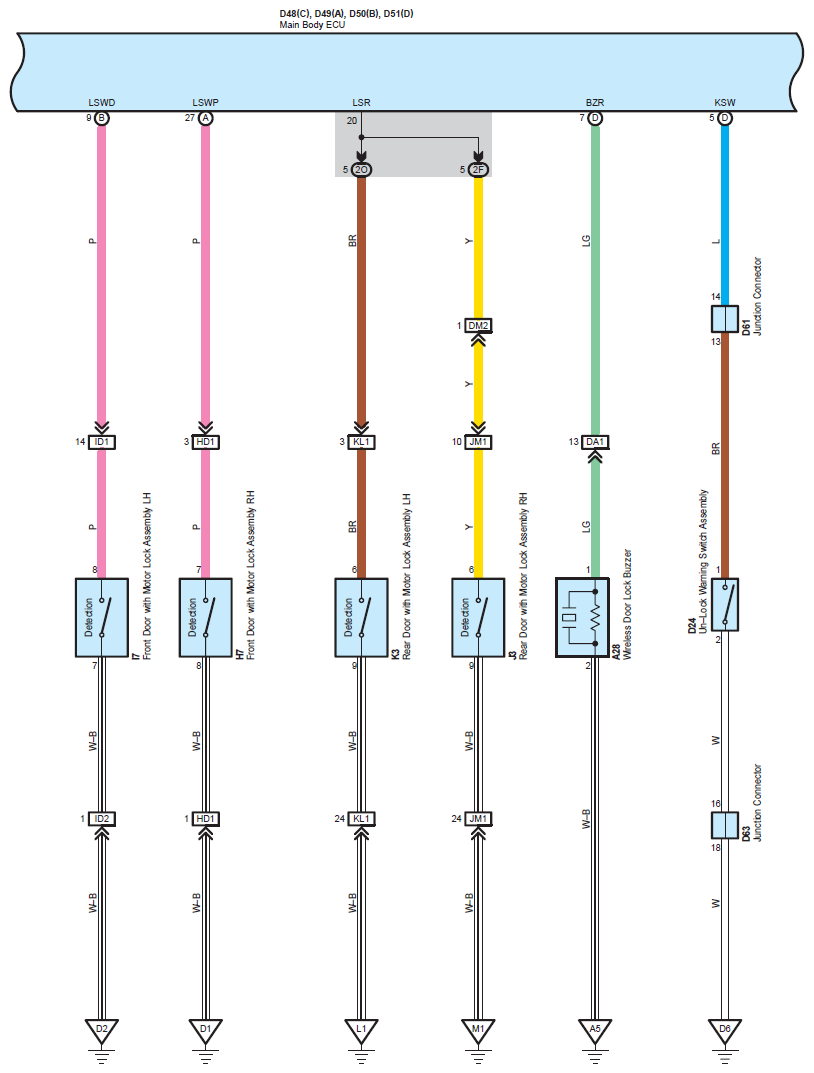

Fig 6: Wireless Door Lock Control System Wiring Diagram (W/O Smart Key System, 6 Of 6)
