Home >> Toyota >> 2013 >> Venza Limited, FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Rear Window Defogger >> Notes

Rear Window Defogger: Notes

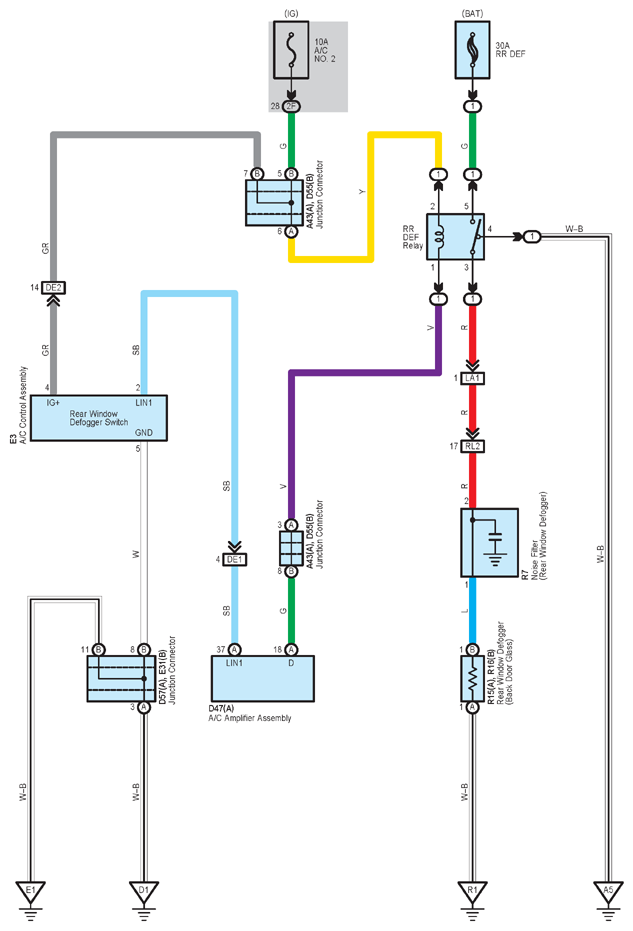

Fig 1: Rear Window Defogger System Wiring Diagram

G09116773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
