OEM System Circuits: Headlight: Notes

Fig 1: Headlight System Wiring Diagram (1 Of 8)

G09116635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

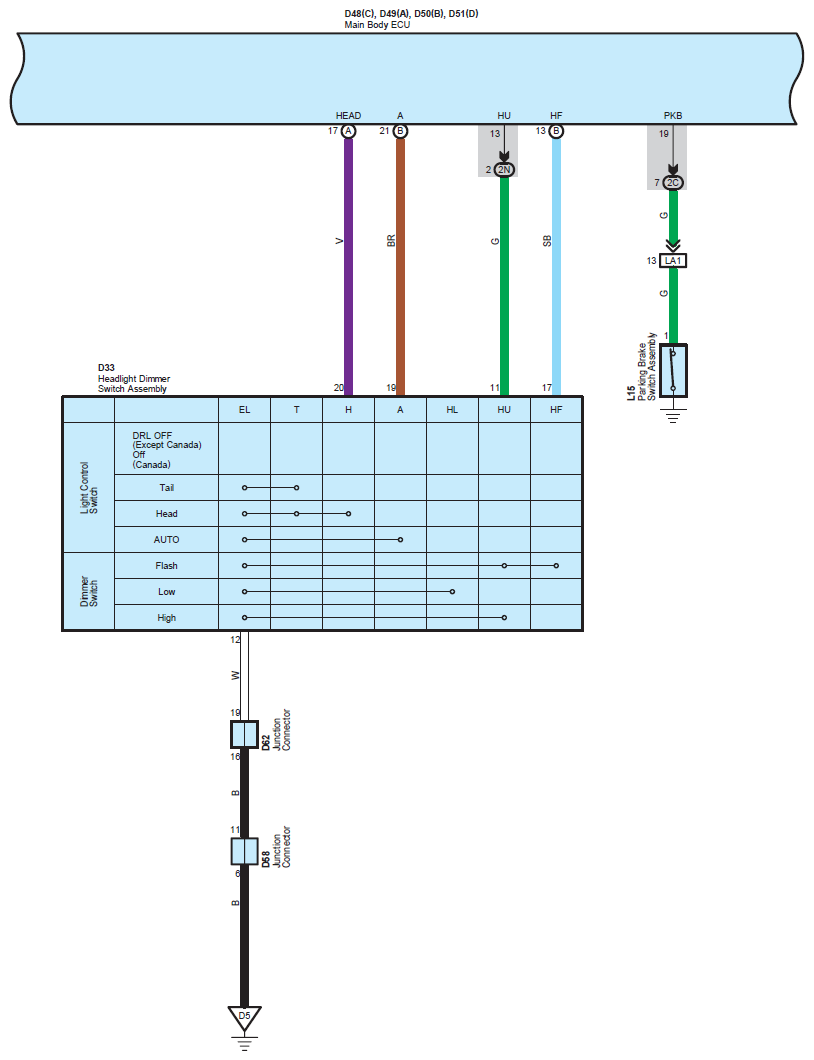

Fig 2: Headlight System Wiring Diagram (2 Of 8)

G09116636

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

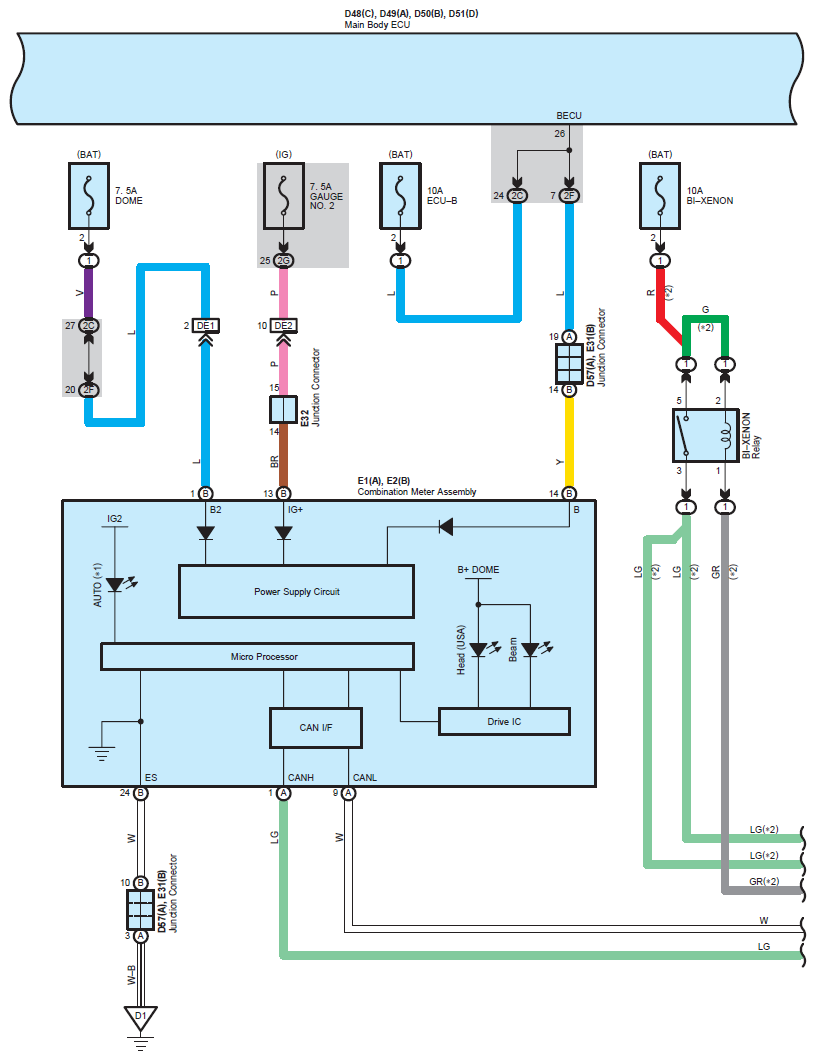

Fig 3: Headlight System Wiring Diagram (3 Of 8)

G09116637

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Headlight System Wiring Diagram (4 Of 8)

G09116638

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

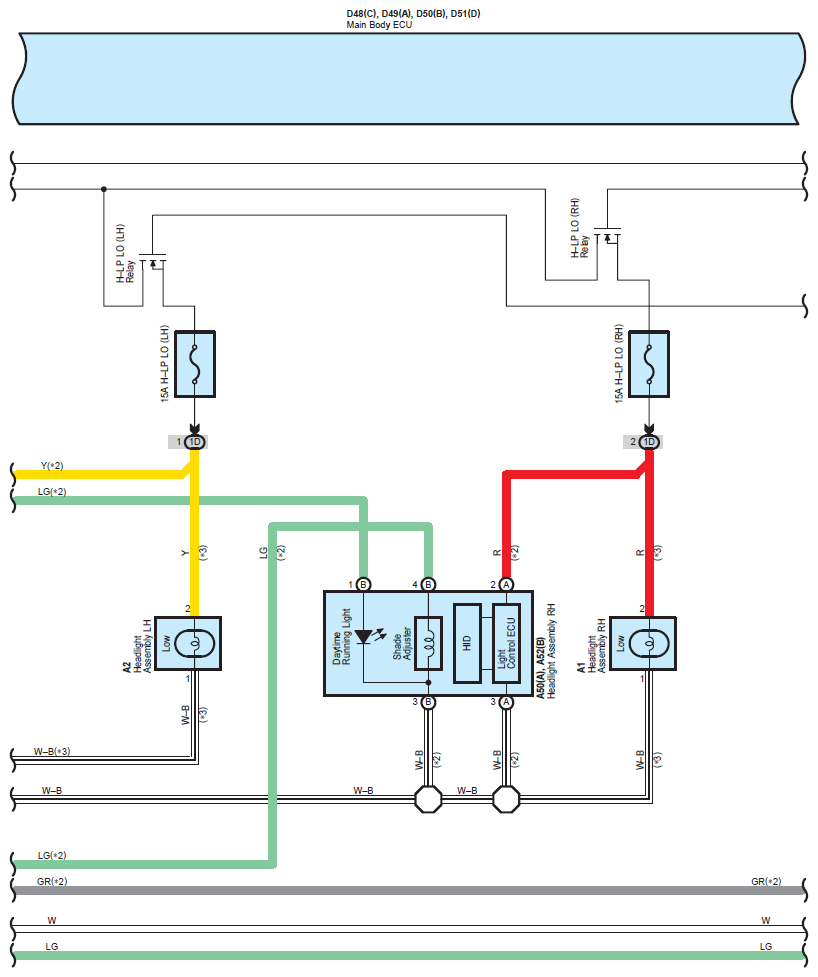

Fig 5: Headlight System Wiring Diagram (5 Of 8)

G09116639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

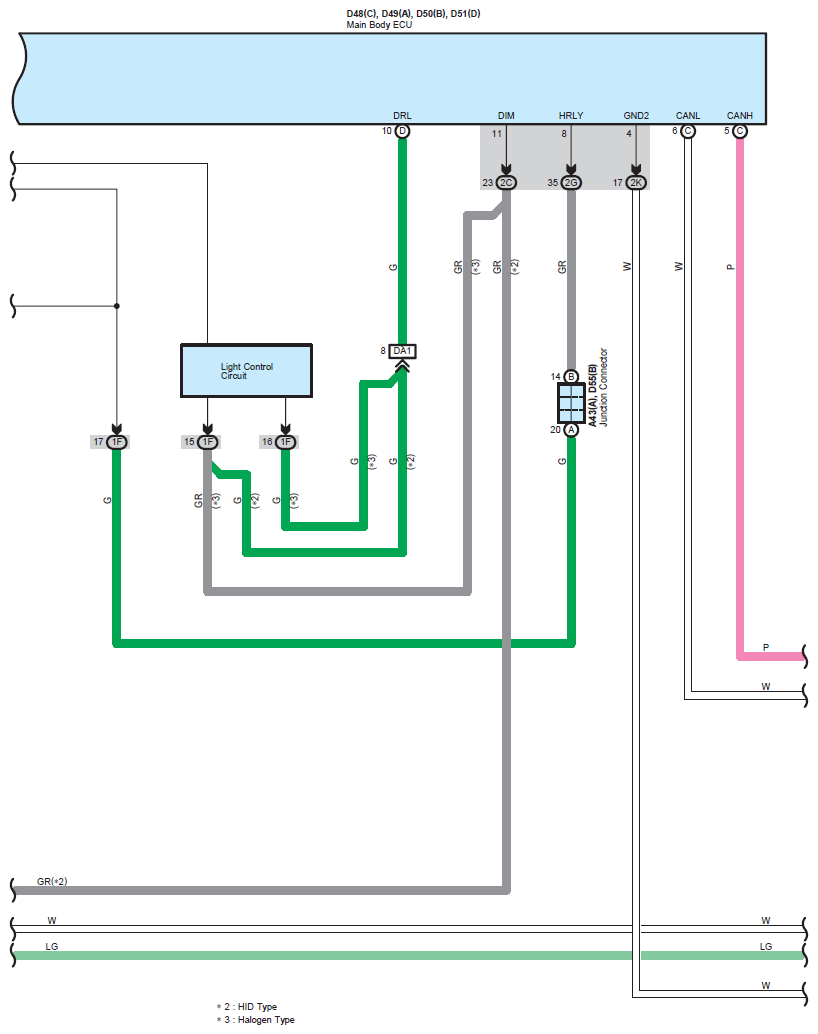

Fig 6: Headlight System Wiring Diagram (6 Of 8)

G09116640

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

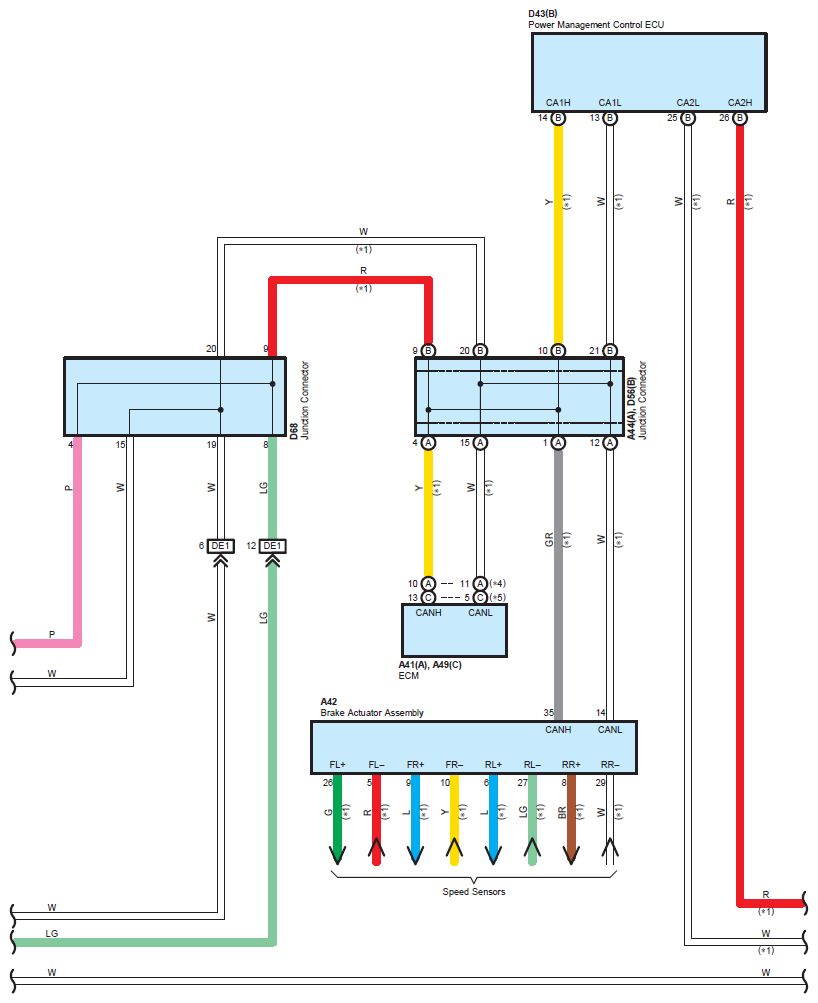

Fig 7: Headlight System Wiring Diagram (7 Of 8)

G09116641

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

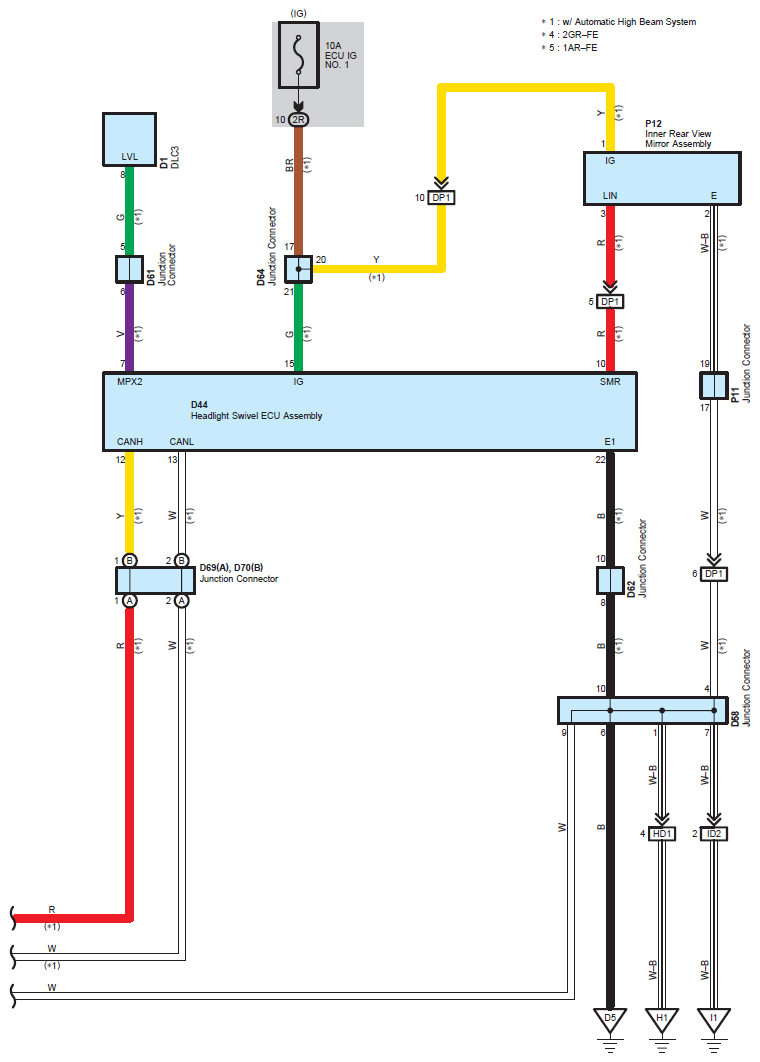

Fig 8: Headlight System Wiring Diagram (8 Of 8)

G09116642

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
