Front Fog Light: Notes

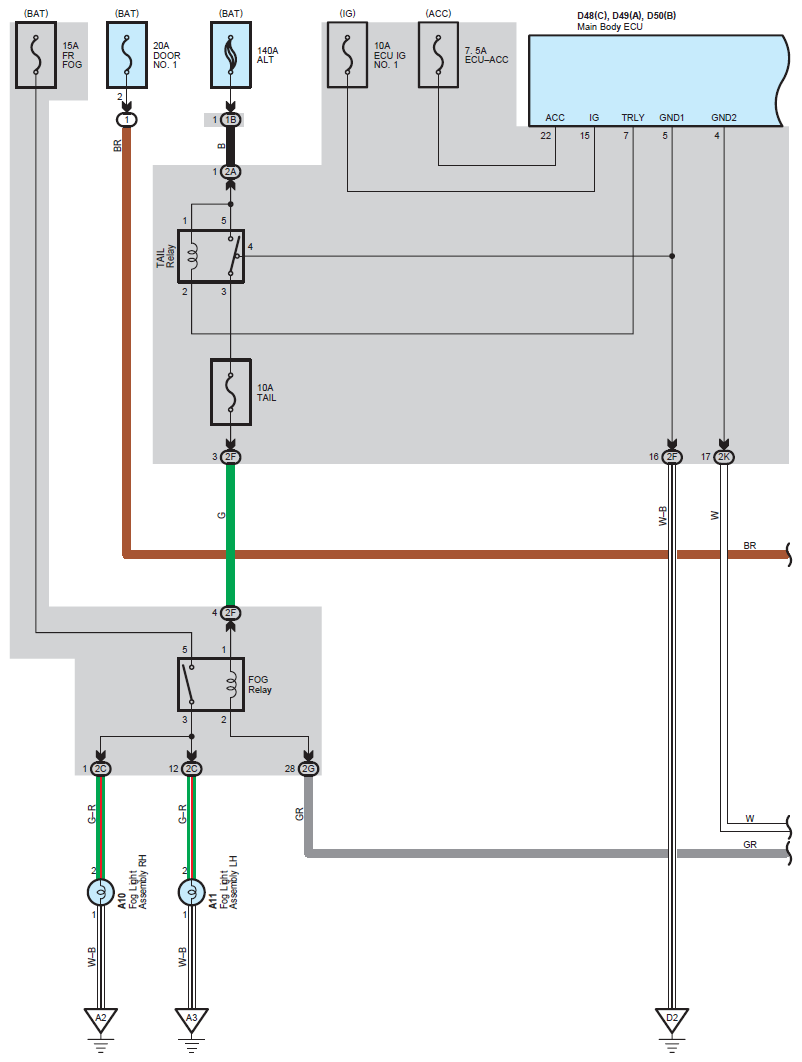

Fig 1: Front Fog Light System Wiring Diagram (1 Of 3)
G09116664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

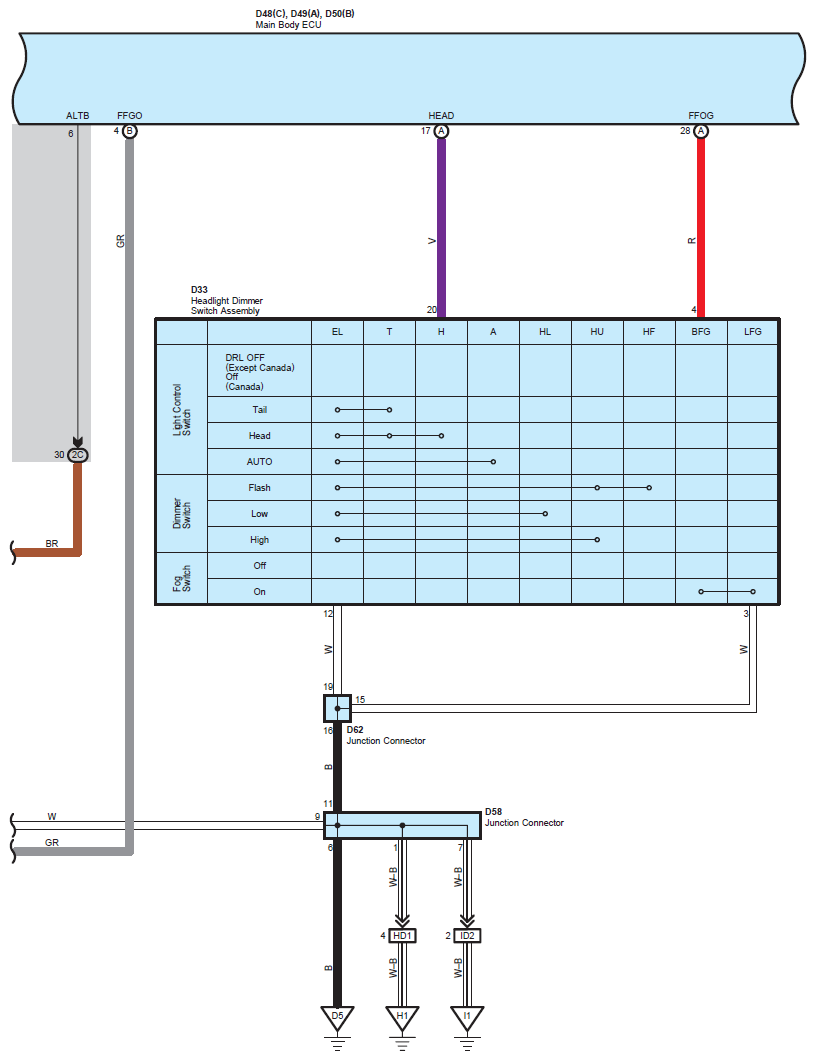

Fig 2: Front Fog Light System Wiring Diagram (2 Of 3)
G09116665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

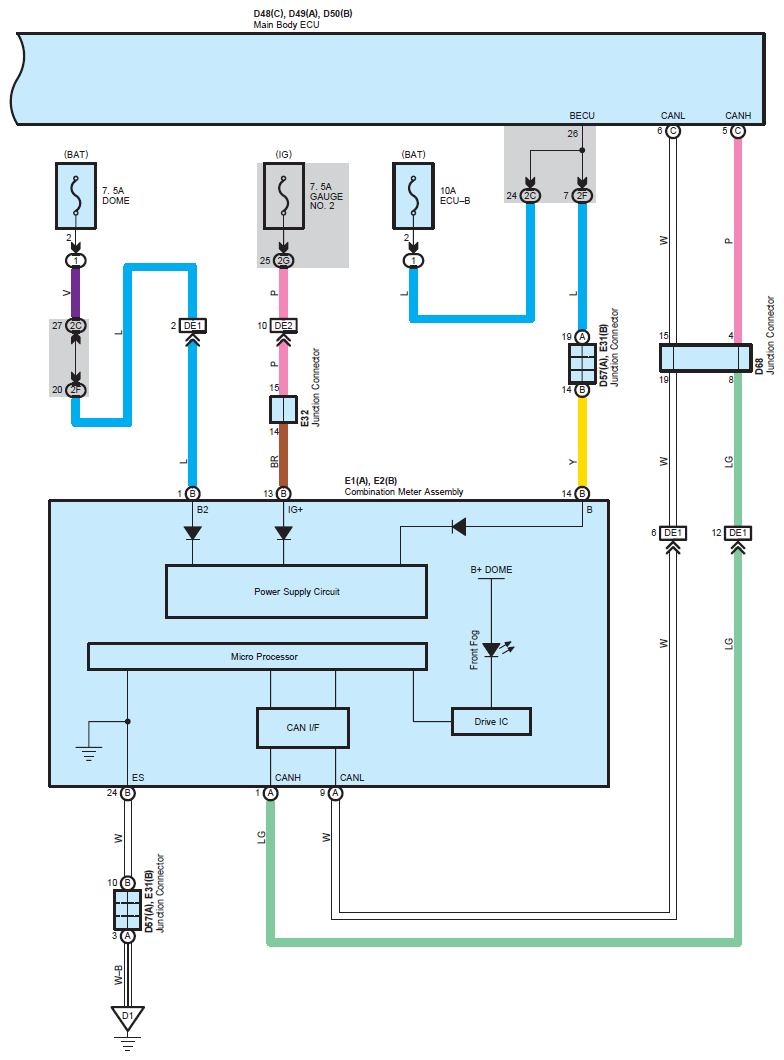

Fig 3: Front Fog Light System Wiring Diagram (3 Of 3)
G09116666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
