Venza Limited, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Engine Immobilizer System (w/o Smart Key System)
>>
Notes
Engine Immobilizer System (w/o Smart Key System): Notes

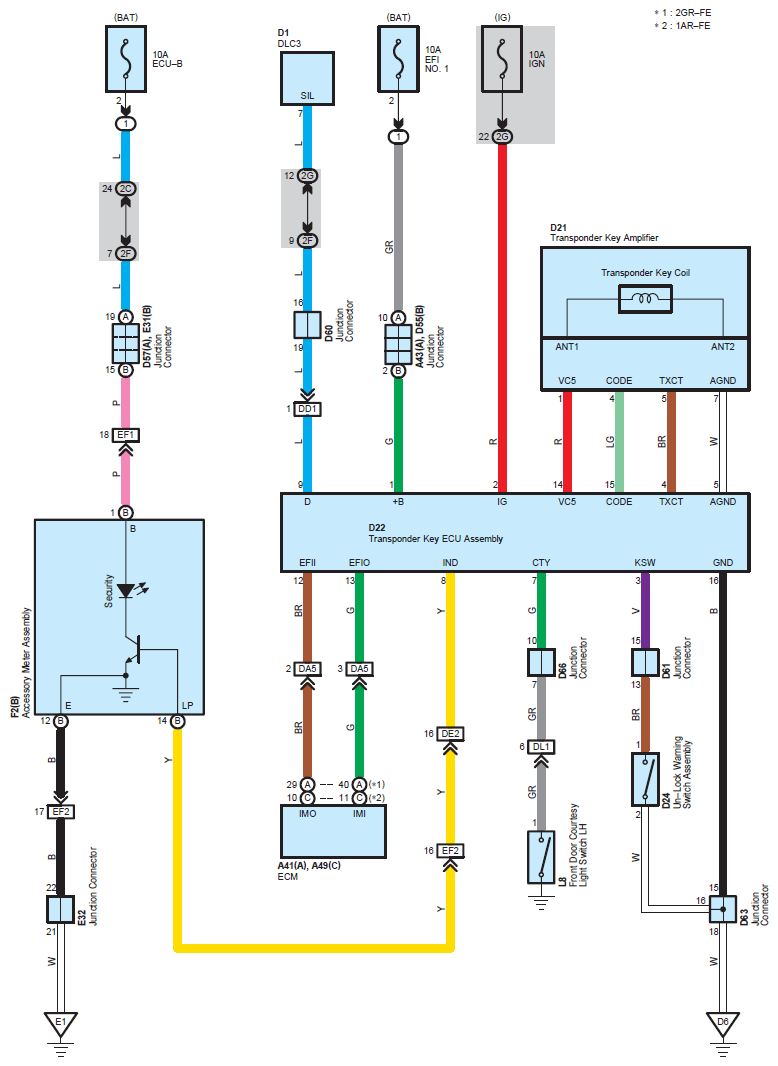

Fig 1: Engine Immobilizer System Wiring Diagram (W/O Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
